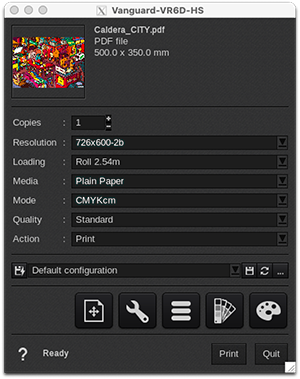

Vanguard VKX00X, VKM600T and VRXD - Print Module Interface


Resolution

VR6D-HS
  • 726x600-2b
  • 726x1200-2b
  • 726x1800-2b
  • 363x600-2b
  • 363x1200-2b
  • 363x1800



VKM600T-HS
  • 363x1440-2b
  • 363x2160-2b
  • 726x720-2b
  • 726x1080-2b
VR5D
  • 605x300-1b
  • 605x300-2b
  • 605x450-1b
  • 605x450-2b
  • 605x600-1b
  • 605x600-2b
  • 605x900-1b
  • 605x900-2b
  • 605x1200-1b
  • 605x1200-2b
VK300D and VK3220T-HS
  • 635x600-1b
  • 635x600-2b
  • 635x900-1b
  • 635x900-2b
  • 635x1200-1b
  • 635x1200-2b
  • 1270x900-1b
  • 1270x900-2b
  • 1270x1200-1b
  • 1270x1200-2b



Loading

VR6D-HS and VR5D
  • Roll 2.54m
  • 2.54 x 1.22 m
  • Custom (...)
VKM600T-HS
  • 1250x2640 mm
  • Custom (...)
VK300D and VK3220T-HS
  • 3.20 x 1.60 m
  • Custom (...)



Media

This driver comes with only a default media not calibrated.

Discover how to manage media with EasyMedia by clicking here.



Mode

  • CMYK
  • CMYKcm



Quality

VR6D-HS, VKM600T-HS and VR5D
  • Standard
VK300D and VK3220T-HS
  • High speed Uni
  • High speed Bi
  • Middle Speed Uni
  • Middle speed Bi
  • Low speed Uni
  • Low speed Bi



Action

The device supports only two actions:

  • Print.
  • Nest.

"Rip", "Rip then Print", and "Keep the ripped file" actions are disabled, as the "Print" action sends a RIP file to the controller-mounted directory. You can keep RIP files in the controller and manage to reprint them on the controller directly.
