Supported models
|
Roll size: 24-inch |
Roll size: 44-inch |
|
|
|
|
|
Info
Epson's naming system:
- P: Photo
- x500: X is 7 or 9, for maximum roll size
Models concerned (with variations by region)
| Region | SC-P7500 | SC-P9500 |
|---|---|---|
|
Europe |
P7500 |
P9500 |
| South Asia, India, Taiwan | P7530 |
P9530 |
| Korea | P7540 |
P9540 |
| Japan | P7550 |
P9550 |
| Australia / New Zealand | P7560 |
P9560 |
| America | P7570 |
P9570 |
| China / Hong Kong | P7580 | P9580 |
Drivers
- Epson-SureColor-P7500 (with or without profiles)
- Epson-SureColor-P9500 (with or without profiles)
Driver history
-
CalderaRIP V17.1

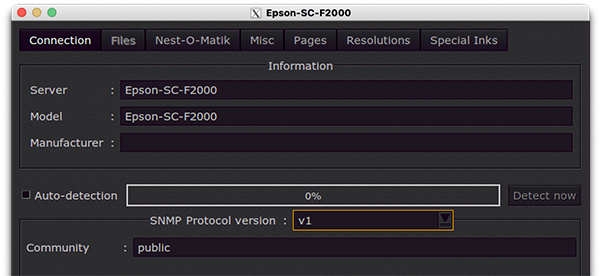

- These drivers now automatically select the required version of the protocol. If needed, it is also possible to change the SNMP version manually thanks to a new field added to the connection tab of ServerAdmin:
Info
Note that if you configure a device to use SNMP V3, you will not be able to access it using SNMP V1.
- These drivers now automatically select the required version of the protocol. If needed, it is also possible to change the SNMP version manually thanks to a new field added to the connection tab of ServerAdmin:
-
CalderaRIP V16.2
- Revision A: Fix possible black edges on borderless print
-
CalderaRIP V16.1
- Revision A: New Proofing qualities were added. Also, you now can select a custom paper from the printer panel (1 to 30).
-
CalderaRIP V13.1
- Both drivers supported since this version
Inks
Info
If your production requires other ink sets than the ones described below, you must purchase the CustomInkset option. See the specialized section to learn how it works or contact our sales team directly.
|
Cyan |
Vivid Light Magenta |
||
|
Vivid Magenta |
Grey |
||
|
Yellow |
Light Grey |
||
|
Photo Black |
Orange |
||
|
Matte Black |
Green |
||
|
Light Cyan |
Violet |
Connection
| USB | |
| File | |
| Network | |
| Serial |
Tips & tricks
Media
- It is preferable to make the settings related to the media (feed, suction, ...) on the machine itself, on a dedicated slot for this media, and then (potentially) transfer these values to the media tab, in order to be able to share these settings when exporting media from EasyMedia.
The settings made on the machine are more adapted and easier to determine (especially the media feed).
Profiles
- To achieve a good profile, it is strongly recommended to activate the Top margin for profiling in the Printer tab
Borderless printing
- For borderless prints, margins in Page Setup should be set up correctly. You should also consider checking the Cut before and after print option.
Limitations
- SpectroProofer is not supported.
-
The minimum size of a print job is 127mm in height, so if this is not the case, the driver will add margins to reach this dimension.
-
The "Proofing" qualities are only available with recent firmware:
-
SureColor-P7500: firmware LK27K8 at least (from August 2020)
-
SureColor-P9500: firmware LL27K8 at least (from August 2020)
-
- For more information, please contact the manufacturer directly.
