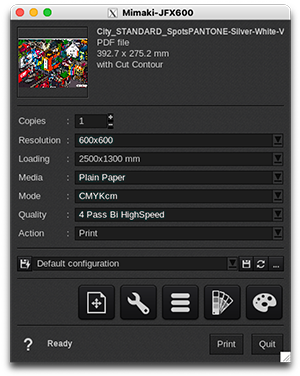

Mimaki JFX600-2513/2531 and JFX550-2513 - Print Module Interface

Resolution and quality

• 600x600 (4, 8, and 16 passes, uni or bidirectional, Standard or High Speed)
• 600x1200 (16, 24, and 32 passes, uni or bidirectional, Standard or High Speed)
• 1200x1200 (16, 24, and 32 passes, uni or bidirectional, Standard or High Speed)

Loading

• 2500x1300mm
• Custom (...)

Media

This driver comes with only a default media not calibrated.

Discover how to manage media with EasyMedia by clicking here.

Mode

• CMYK
• CMYKcm

Print

The device supports only two actions:

• Print.
• Nest.

"Rip", "Rip then Print", and "Keep the ripped file" actions are disabled, as the "Print" action sends a RIP file to the controller-mounted directory. You can keep RIP files in the controller and manage to reprint them on the controller directly.
