Supported model

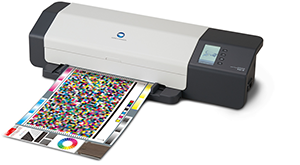

Konica Minolta FD-9

Auto Scan LED Spectrophotometer

History

• CalderaRIP V17
  • We updated the measurement targets for the Konica Minolta spectrophotometers on EasyMedia, for its use in combination with Konica Minolta's FD-S2w Measurement Utility Software.
• CalderaRIP V11.00

  • Spectrophotometer supported since this version

Connection

		USB
		Ethernet

Features

• Measurement time: Approx. 4 min. per 1,500 patches
• Measurement range: Spectral reflectance: 0 to 150%
• Measurement conditions: M0 (A), M1 (D50), M2 (A + UV-cut filter), C, ID50. D65, ID65, F2, F6, F7, F8, F9, F10, F11, F12, and User-defined illuminant.

Measurement workflow

To make measurements with this spectrophotometer, you must follow a workflow between your CalderaRIP and Konica Minolta's FD-S2w Measurement Utility Software:

1. Select the FD-9 test chart in EasyMedia
2. Print FD-9 test chart in EasyMedia
3. Select reference file using FD-S2w
4. Measure test chart using FD-S2w
5. Export measurements in EasyMedia
6. Import measurements in EastMedia
7. Continue the profiling process in EasyMedia
