Zund Cut Center (ZCC) 4 cutter driver

Updated November 04, 2024 12:46

Supported models

zund q-line.png

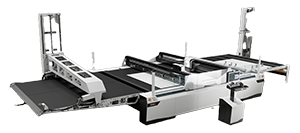

Q-Line (industrial pallet-to-pallet cutting system, photo)
Other new cutters produced by the end of 2023
Other previous cutters equipped with Zund Cut Center version 4
Visit the official website of Zund

Good to know

Zund Cut Center (ZCC) is a software developed by the company of the same name to manage, control, and monitor its cutting systems and media loading.
ZCC can be acquired with a basic or advanced license, supports most vectorized file formats (DXF, PDF, EDP, etc.), and integrates smoothly with CalderaRIP cutting workflows.

Driver

Zund Cut Center 4

Driver history

CalderaRIP V18:

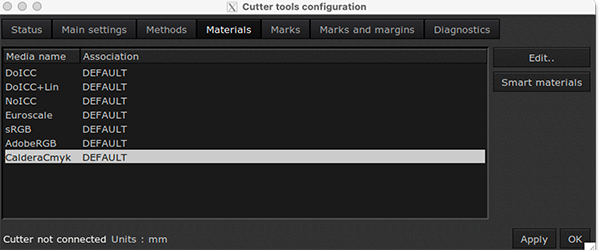

- New Smart Materials feature that allows automatic association between a printer's media and a cutter's material. Exclusive to CalderaCare subscribers. Learn more.

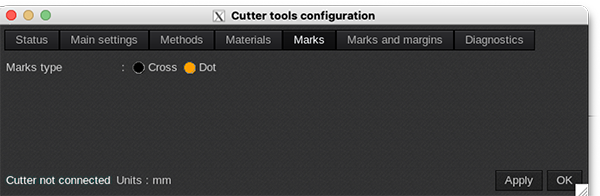

- As suggested by the manufacturer, we removed the “Methods” section from the output file of these drivers, as well as the “Cutting Mode” and “Registration Type” options present in the drivers' interface (in the Main Settings and Marks tabs of the Cutter Tools Configuration).
  The removal improves the workflow with the ZCC software, avoiding inconsistent or duplicate values.

  Info

  If your production requires these options, do not forget to configure them directly in the ZCC software. Contact the manufacturer for more information.
CalderaRIP V17.3
- A new "Add direction mark" checkbox was added to the Misc. area of the Cutter Tools Configuration for almost all cutting drivers (both GrandCut and VisualCut). Activating this new field adds direction marks in the form of a triangle pointing to the bottom edge of the cut job, which significantly speeds up the operators' work when managing these files.
CalderaRIP V17:
- The cutter driver is supported since this version

Installation

Type of license

	CutServer
	GrandCut B

You might want to read:

How to install a ZCC driver in CalderaRIP?

Format

Supports .zcc files

Configuration

You might want to read:

How to configure a ZCC driver in CalderaRIP?

Warning

Starting with V18, and as suggested by the manufacturer, the "Cutting mode" option is no longer available in CalderaRIP (see the changelog). If your production requires this option, do not forget to configure it directly in the ZCC software. Contact the manufacturer for more information.
