These devices can use a "Chromatic Optimizer" a special ink.
Info
For more details on the general management of spot colors in CalderaRIP, please take a look at this dedicated article.
Halftone mode
Using halftones modes, this special ink is configured thanks to the Chroma Optimizer tab.
Info
The following setup is not compatible with contones modes.

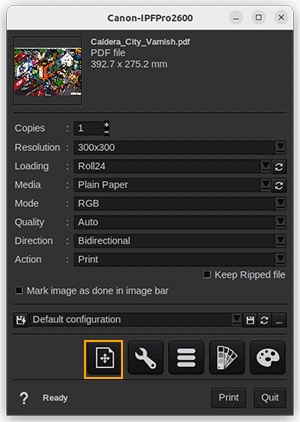

- Click on the first icon button of the Print module main window:

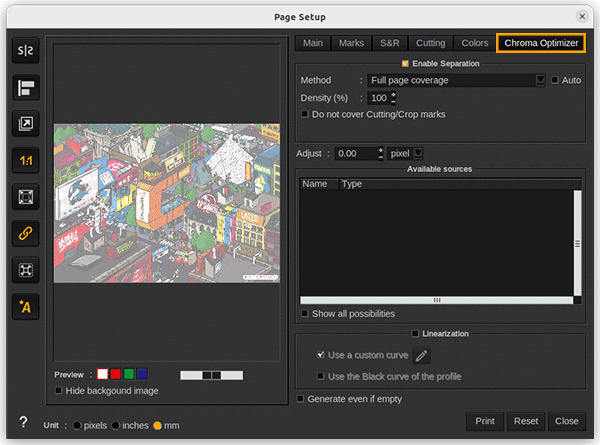

- The Page Setup appears and you can select the Chroma Optimizer tab on the right:
Chroma Optimizer should be used with moderation to avoid bleeding. Usually going above 20% is not recommended. 5% is a good start to see how high you can go.
Contone mode

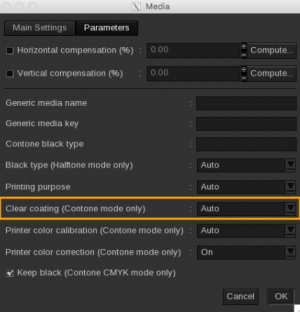

In Contone modes, the Clear coating field allows you to configure the ink's options. Clear coating is ignored for halftone modes.
- Open EasyMedia
- Select your printer and click Next
- Edit your media parameters by clicking on Edit
Media management
EasyMedia synchronization
Info
EasyMedia is named ProfileExpert in the TextilePro interface.
The contone black type field is the same as the contone black type in the media settings.
Before creating an EasyMedia project you must configure the network address of the printer in the server configuration.

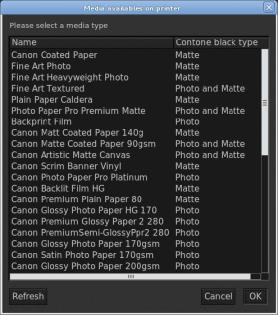

You should then have access to all media stored on the printer when creating a new EasyMedia media project.
You can retrieve all papers stored on the printer with the AutoSync button. You can also create specific projects with the New button.
Note that the synchronization can take 1-2 minutes. When it is done the first time you press New, the window below will appear once synchronized.
|
|
|
|
|

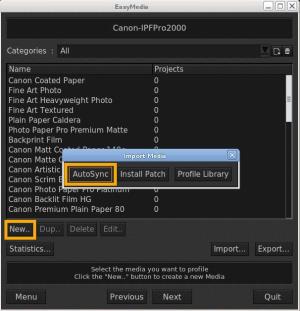

EasyMedia allows you to use the AutoSync button or the New button. |
|
The Media window appears after clicking the New button |
