The M&R Quatro RIP has a special feature called Auto Alignment that allows you to automatically align images placed on the layout. This feature can be customized:
Automatic alignment of images
What is Auto Alignment?
The Auto Alignment feature helps you arrange images in Studio.
When enabled, it automatically places images in rows aligned to the left, center, or right, or distributes them across the width of the media.

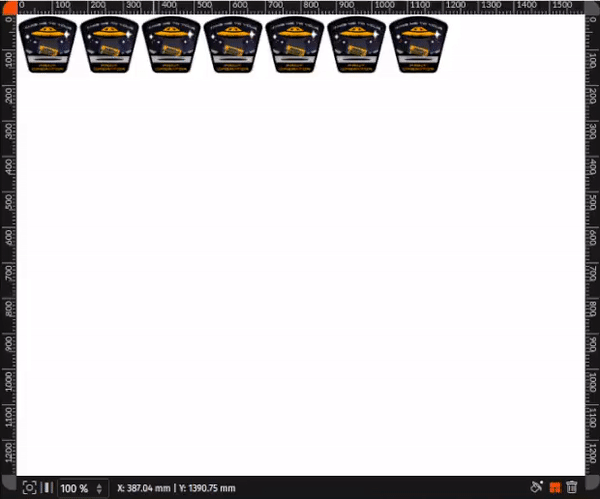

| Auto Alignment disabled | Auto Alignment enabled |
Enable/Disable the feature
In the bottom bar of the Studio, click the Auto Alignment icon to turn the feature on or off.
When you manually modify an image in the Studio, Auto Alignment is disabled. Click the Auto Alignment icon again to re-enable it; the images are then repositioned automatically.
Configuration

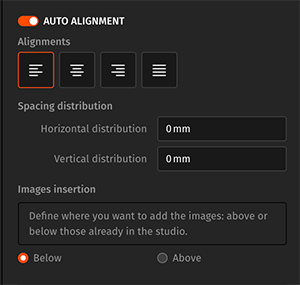

Configure Auto Alignment in Settings > Processing. You can also turn the feature on or off from this section.
Changes to the Auto Alignment settings are applied in real time and are immediately visible in Studio.
Alignment options
Choose how image rows are aligned on the media:
- To the left
Image rows are aligned to the left. This is the default setting.
- To the center
Image rows are centered on the media.
- To the right
Image rows are aligned to the right.
- Distribute
Image rows are distributed across the width of the media.
Spacing distribution
Set the horizontal and vertical spacing between images. The available unit, millimeters, centimeters, and so on, depends on your global configuration.
Image insertion
Choose where new images added in Studio are inserted relative to images already on the layout: below or above.
