First use of Caldera Direct-to-X RIP

Welcome to Caldera Direct-to-X RIP! You can read this article to learn useful vocabulary, get an overview of the main interface, and get started with the software.



First launch

The first time you run the software, you will be asked:

  • The language of the software,
  • And if you want to apply the default settings or ignore them and start from scratch.



Default settings

The default settings include:

  • Sample Caldera images
  • Sample media and formats

  Recommendation

We recommend that you use the default settings. This will help you get started quickly!



Workflow

The software's logic adheres to the main interface's reading orientation:

  Info

Caldera Direct-To-Garment RIP has an additional Garment module and different options in the Layout and Image modules. Learn more.

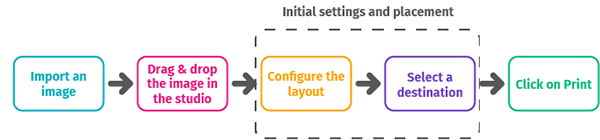

Damona workflow.png



The interface of Caldera Direct-to-X RIP is split into 4 main areas:

Caldera DTFilm RIP - 1st use - Overview.png



1. Import an image

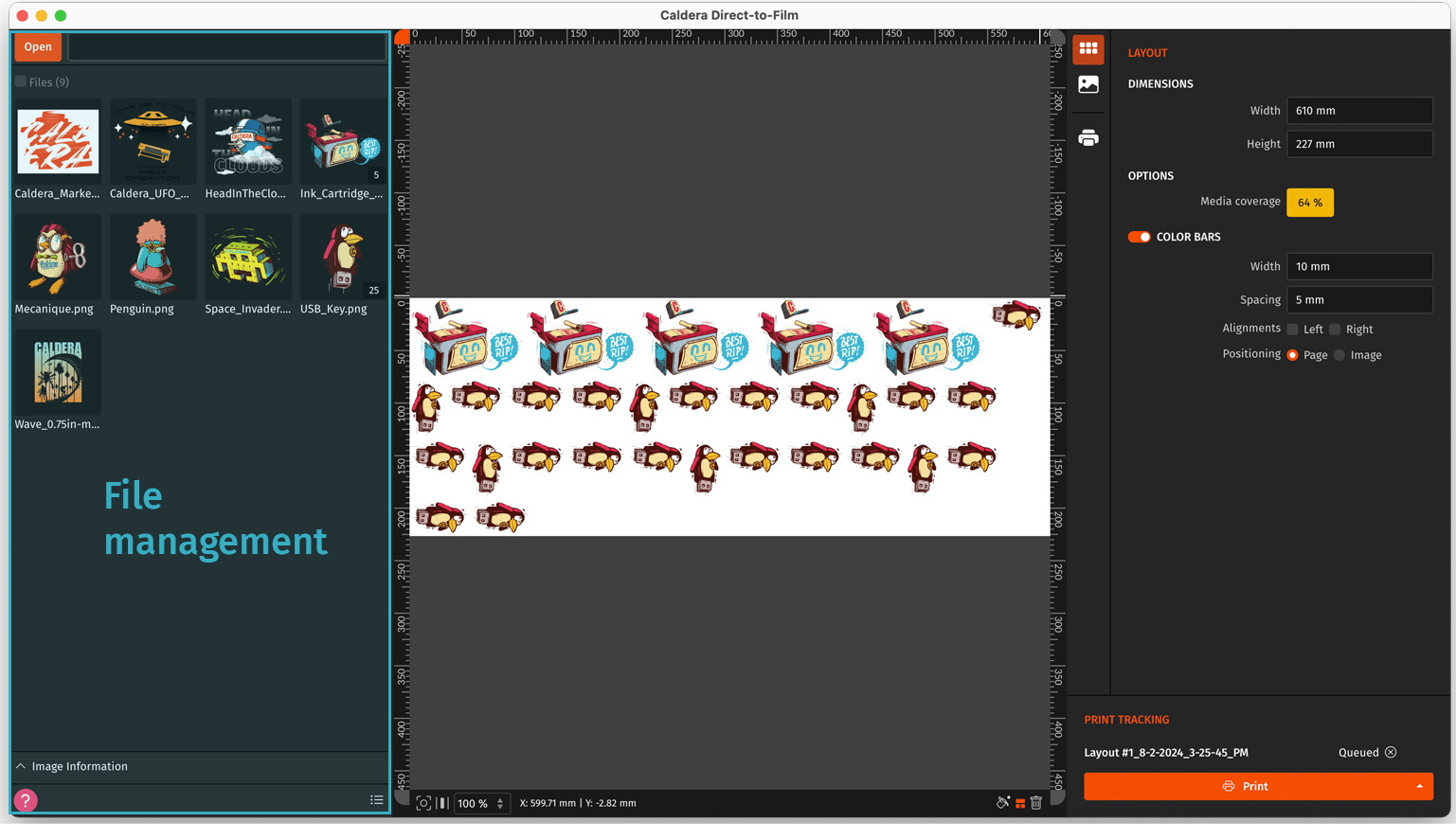

Caldera DTFilm RIP - 1st use - File manager.png

The File manager is where the incoming files you want to process are loaded.



Import files

You can simply import images with the Open button or drag and drop them into the file management area.

Caldera Direct-to-X RIP supports various file formats.



2. Insert the image and preview your print

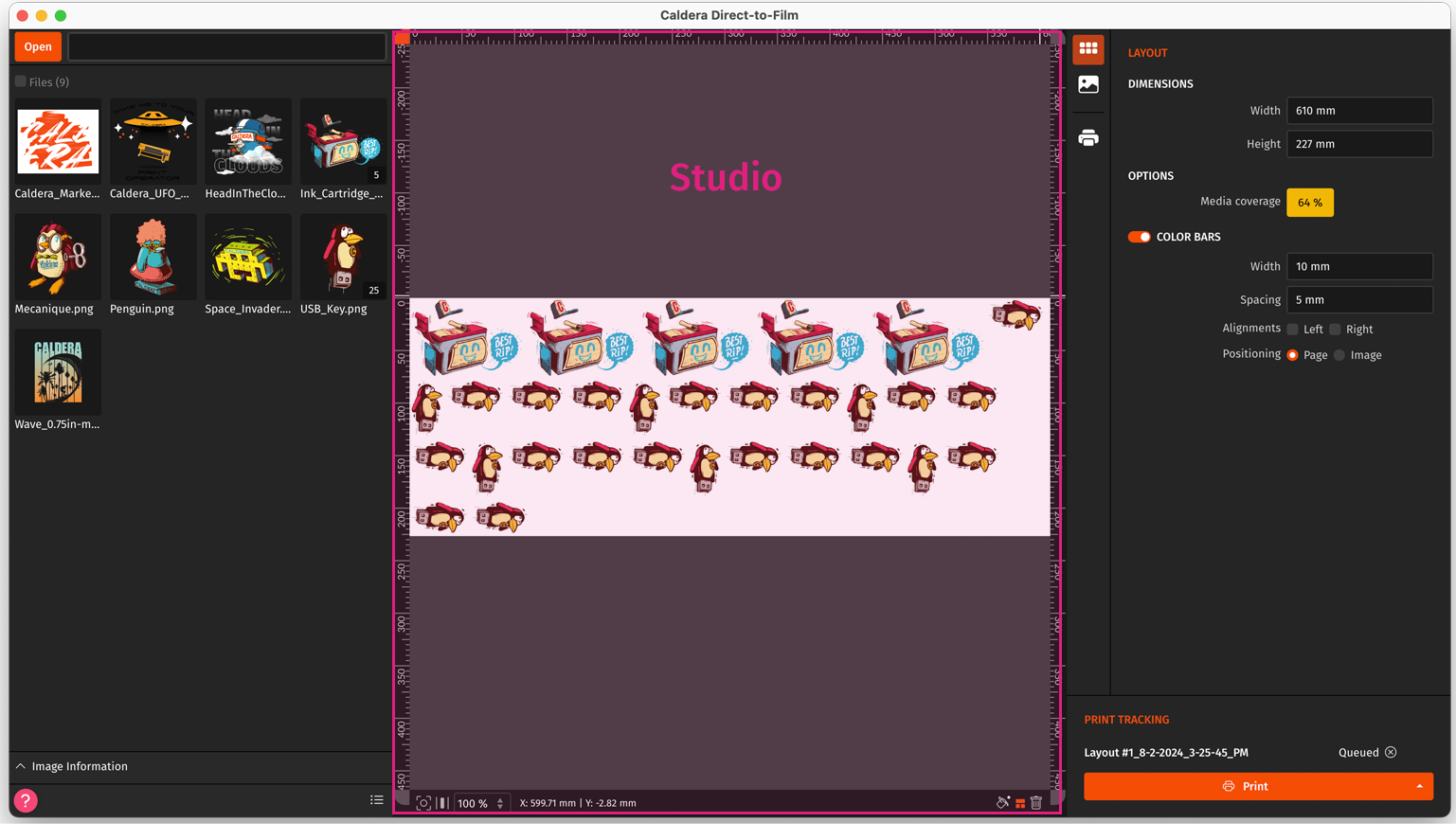

Caldera DTFilm RIP - 1st use - Studio.png

The Studio allows you to place your image on the layout and visualize the print. Simply drag and drop an image from the File Manager to the Studio to place it in the layout.

You can change the Studio background to better preview your print.



3. Configure the layout, image and select the destination

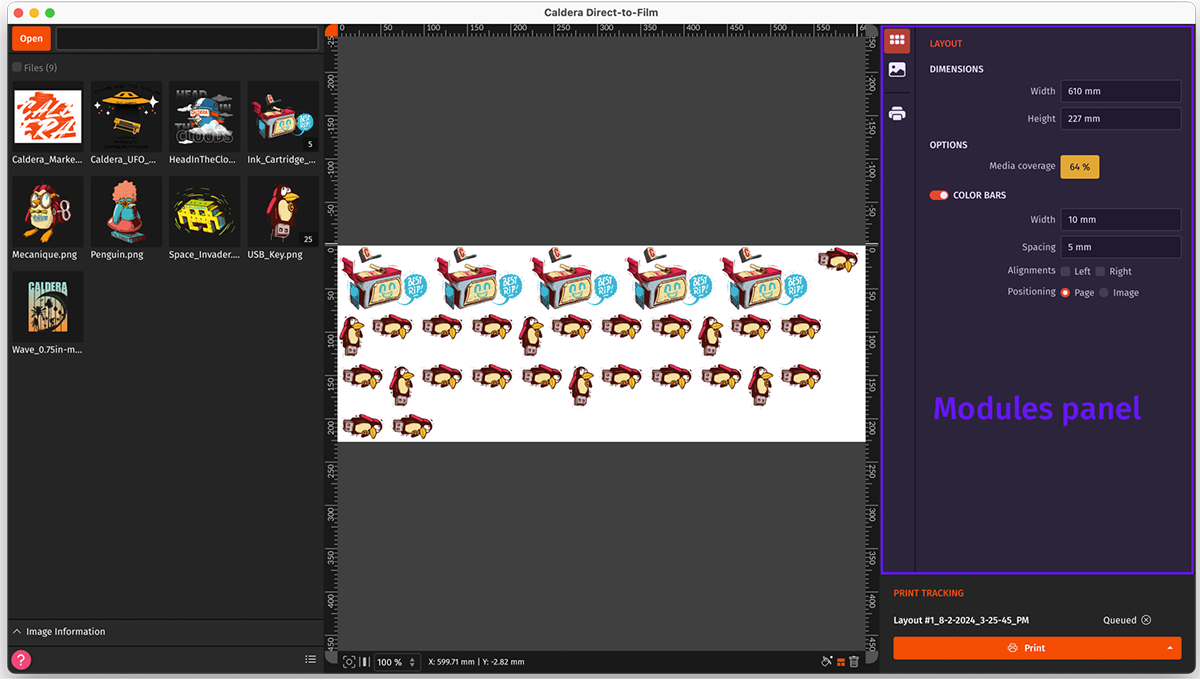

Caldera DTFilm RIP - 1st use - Settings and destination.png

In the Modules Panel panel:

  • You can make changes on the fly. If you change some values here, they will not be saved. To change default values and your preferences, go to Settings. Here it's just to make last-minute corrections for special cases you may have.

By clicking on the Printer icon, you can select the destination of your printing:

  • The Printer driver that will be used,
  • The Media,
  • And the Preset.

If you chose to use the default settings when you started the software, you will have access to pre-configured printers with associated media and presets, without going through the Global Settings. This allows you to generate your first job.



4. Generate the print file

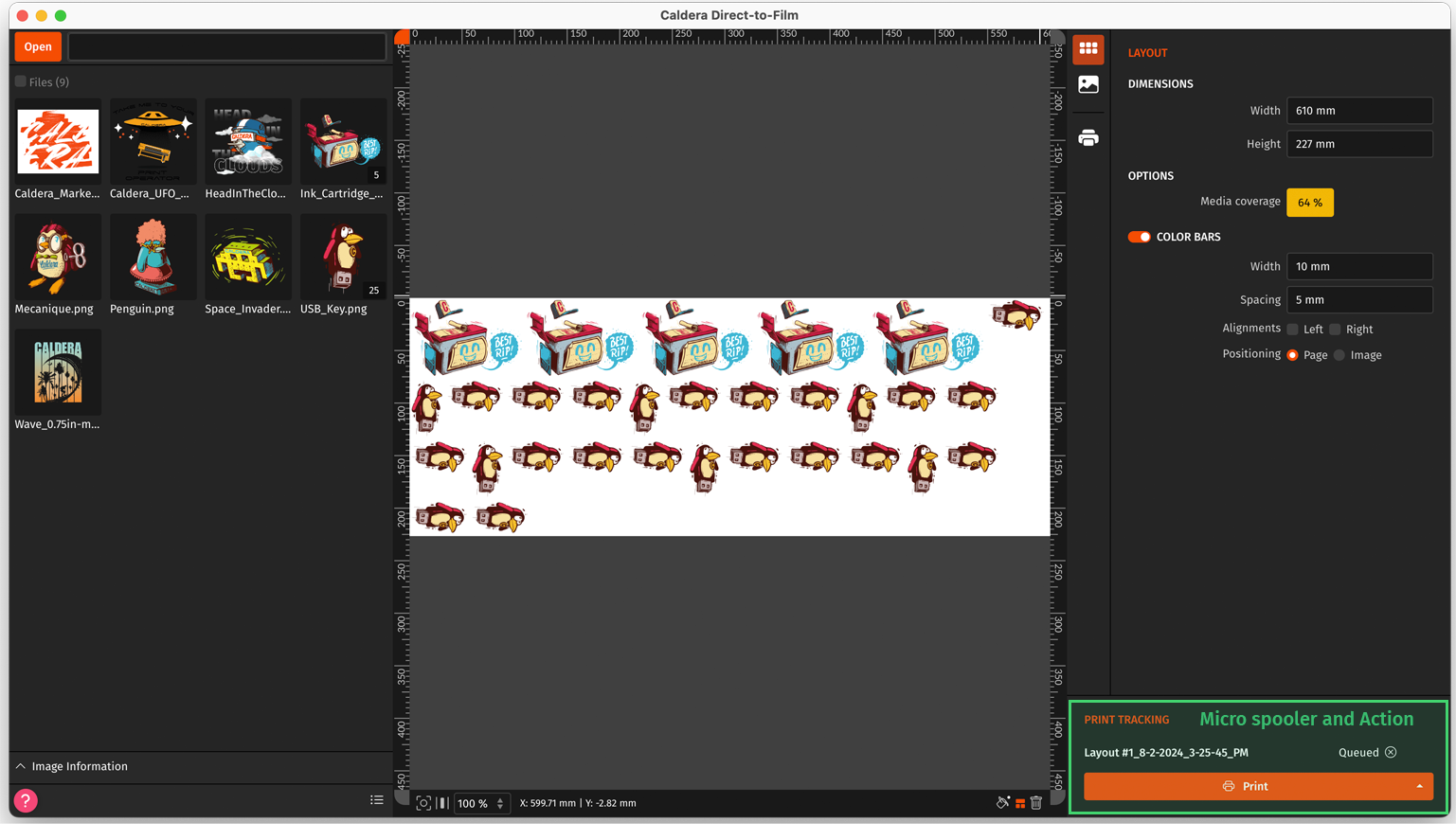

Caldera DTFilm RIP - 1st use - Spooler.png

When you are satisfied with the preview of the result in the Studio, you can click Print.

You will see the progression of the generation of your job in the Print tracking area.

Once the job is completed, you can go to the output folder to check it. 2 files are generated by default:

  • A print file containing the binary data as it should be sent to the printer.
  • Associated to a preview file, by default in BMP (bitmap) format.

  Tips & tricks

If you chose to use the default settings when you started the software, the default output folder is Users/Documents. You can configure this folder per printer in the Devices & Presets tab of Settings.

Now that you have generated your files, you can use them in your printer controller or directly with your printer, depending on your setup.
