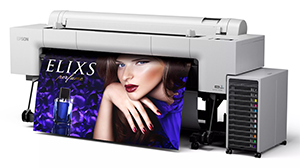

Supported model
- Large format (64") printer for fine art, poster, and indoor signage production
- 12-channel PrecisionCore Micro TFP printhead
- UltraChrome PRO 12 inkset
Models concerned (with variations by region)
| Region | Machine |
| America | P20570 |
| Australia, New Zealand | P20560 |
| China / Hong Kong | P20580 |
| Europe | P20500 |
| Japan | P20550 |
| Korea | P20540 |
| South Asia, India, and Taiwan | P20530 |
Driver
- Epson-SureColor-P20500
Driver history
-
CalderaRIP V17.3:
- Supported since this version.
Inks
|
Cyan Magenta Yellow Photo Black Matte Black Grey |
Light Grey Light Cyan Light Magenta Orange Green Violet |
Connection
| USB | |
| File | |
| Network | |
| Serial |
SNMP Protocol

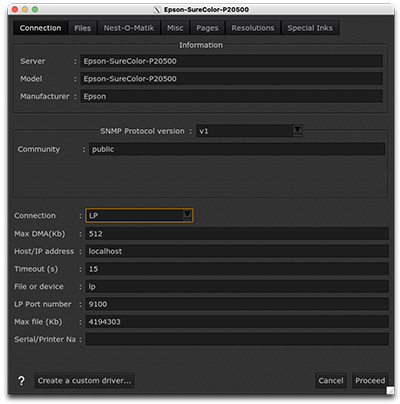

This driver automatically selects the required version of the protocol. If needed, it is also possible to change the SNMP Protocol version manually thanks to a related field in the Connection tab of ServerAdmin:
Info
Note that if you configure a device to use SNMP V3, you cannot access it using SNMP V1.
Media synchronization
Also in ServerAdmin, the Serial/Printer name must be filled in with the printer's serial number to connect to the EPSON Edge Dashboard for media synchronization (which can be done subsequently in the EasyMedia module).
See the dedicated article for more information:
Possible error messages
For Borderless printing, the Loading margins must be correctly set and if it is a completely borderless print, you should also remember to choose the "Cut before and after print" setting (see more info).
Media width incompatible with Borderless Printing
The media widths that are allowed in Borderless Printing:
|
|
|
Media reference is incompatible with this printmode (quality, mode, resolution)
Indicates that the reference media selected in the Media tab is not compatible with the chosen print mode.
The paper source is not available for this media
Indicates that it is impossible to use this type of media with the current paper load (Paper Source).
The paper source is set to Roll while media is defined as Sheet / Paper source is not of Roll type while media is defined as Roll
Warns of the inconsistency between the Loading that is of type Roll and the paper source is set to Roll (or vice versa).
Media doesn't allow "Black enhance overcoat"
This media or printmode does not allow the Black enhance overcoat setting.
