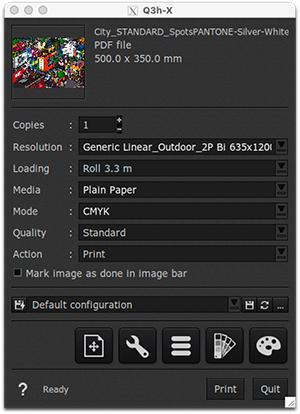

EFI VUTEk Q3h X and XP - Print module interface

Resolution, Mode, and Quality

There is a default resolution table included in the driver, but you must import your own configuration from the printer controller by following the steps below:

1. Export the media data from the controller as an XML file.


     Warning

   Make sure that CalderaRIP is closed before exporting the data.

   How to export the media data from the printer controller?

   1. Open the Q3h Connector.
   2. Go to System Overview.
   3. Select "EFI Vutek Q3h-X(P) Engine".
   4. Context-click and go to Resources > Media Hub.
   5. Select "EFI Vutek Q3h-X(P) Engine" in the Printer list.

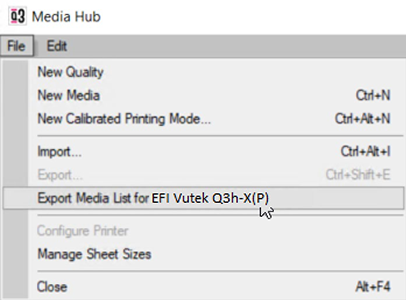

   6. Go to File > Export Media List for EFI Vutek Q3h-X(P):

   7. Save the file MediaList.xml in a directory accessible to you.
2. Place the exported file in this directory, and rename it by following the syntax you will see next:
   /opt/caldera/lib/DRIVERS/<servername>/<servername>.mediaList.xml
3. Go to the ServerAdmin module. If the print server is running, stop it.
4. Click on Configure to open the print server's configuration.
5. Click on Import qualities.
6. Restart the software to see the qualities of your updated driver.

Loading

• Roll 3.3 m
• Roll 2.5 m
• Roll 1.5 m
• Roll 1.0 m
• 3300 x 4000 mm
• Custom (...)

Action

The device supports only two actions:

• Print.
• Nest.

"Rip", "Rip then Print", and "Keep the ripped file" actions are disabled, as the "Print" action sends a RIP file to the controller-mounted directory. You can keep RIP files in the controller and manage to reprint them on the controller directly.
