InkTec JETRIX LXa8 - Overview

Updated

Supported model

InkTec JETRIX LXa8

  • LED UV printer
  • 3.2m wide flatbed
  • Link to the website of InkTec



Driver

  • Inktec-Jetrix-LXa8



Driver history

  • CalderaRIP V18:
    • Supported since this version



Resolution

  Info

Resolutions with “1d” at the end of their name refer to those in which the printer uses only a fixed dot with small drops (1 bit). Meanwhile, “3d” resolutions designate those in which the printer uses a grayscale mode, including small, medium, and large drops (2 bits).

  • 720 x 360-1d
  • 720 x 720-1d
  • 720 x 1080-1d
  • 720 x 1440-1d
  • 1080 x 360-1d
  • 1080 x 720-1d
  • 1080 x 1080-1d
  • 1080 x 1440-1d
  • 1440 x 360-1d
  • 1440 x 720-1d
  • 1440 x 1080-1d
  • 1440 x 1440-1d
  • 360 x 360-3d
  • 360 x 720-3d
  • 360 x 1080-3d
  • 360 x 1440-3d
  • 540 x 360-3d
  • 540 x 720-3d
  • 540 x 1080-3d
  • 540 x 1440-3d
  • 720 x 360-3d
  • 720 x 720-3d
  • 720 x 1080-3d
  • 720 x 1440-3d



Inks

1_Cyan.png  Cyan   ✔
2_Magenta.png  Magenta ✔
3_Yellow.png  Yellow ✔
4_Black.png  Black ✔
5_Light_cyan.png  Light Cyan ✔
6_Light_magenta.png  Light Magenta ✔

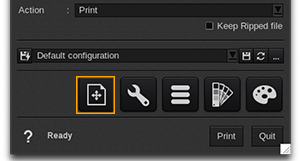

This driver can use several Spot Inks. To configure them, you need to go to the Page Setup module:


Then, open the corresponding tab, click Enable separation, and select the Method corresponding to your production.



Connection

Circle.png USB
Check_circle.png File
Circle.png Network
Circle.png Serial
