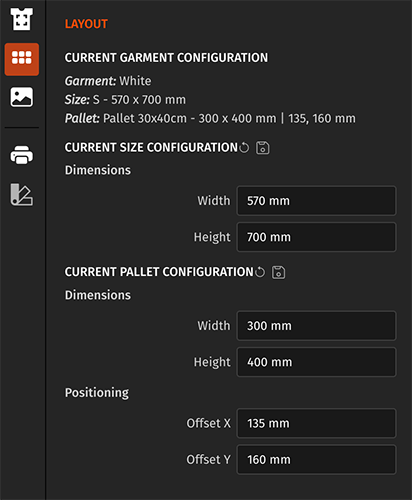

This article talks about the Layout module, in the modules panel of Caldera Direct-to-Garment RIP.
With this module, you can easily configure what you want to appear in the Studio to preview your print.
You can set the preferences for your garments and their associated sizes and pallets in Settings > Garments, Sizes & Pallets.
Current configuration
Here find detailed information relative to the configuration you have chosen in the Garments, Sizes & Pallets tab:
- Name of the selected garment.
- Name of the selected size and its dimensions.
- Name of the selected pallet, its dimensions and its position.
Current size configuration
Here you can directly change the dimensions of the garment you are previewing. These values are not saved, it's just for last-minute changes.
| Reset the dimensions to the dimensions of the selected size. | |
| Save the custom dimensions as the dimensions of the selected size. This will permanently change the values in Settings. |
Current pallet configuration
Here you can directly change the dimensions and the position of the pallet you are previewing. These values are not saved, it's just for last-minute changes.
| Reset the dimensions and the position to those of the selected pallet. | |
| Save the custom dimensions and position as those of the selected pallet. This will permanently change the values in Settings. |
