Sentinel License Development Kit (LDK) is a service used by Caldera to manage software and hardware licences.
When you install CalderaDock version 3.2 or later, Sentinel LDK is installed automatically:
Info
Sentinel LDK requires access to port 8443 or 443. Ensure that your local firewall allows the required connection.
If you experience licence issues, go to CalderaDock > Licences > Sentinel, then click Reinstall. This updates Sentinel LDK and may resolve common licensing issues.
You can also download the current version of Sentinel LDK from the Thales Support Portal. Sentinel LDK supports many popular operating systems, including supported versions of macOS. For the complete compatibility list, see the Sentinel LDK supported platforms documentation.
For additional information, see the official Thales Sentinel LDK documentation.
Check background activity on macOS 13 or later
Sentinel LDK requires its Thales background activity to remain enabled:

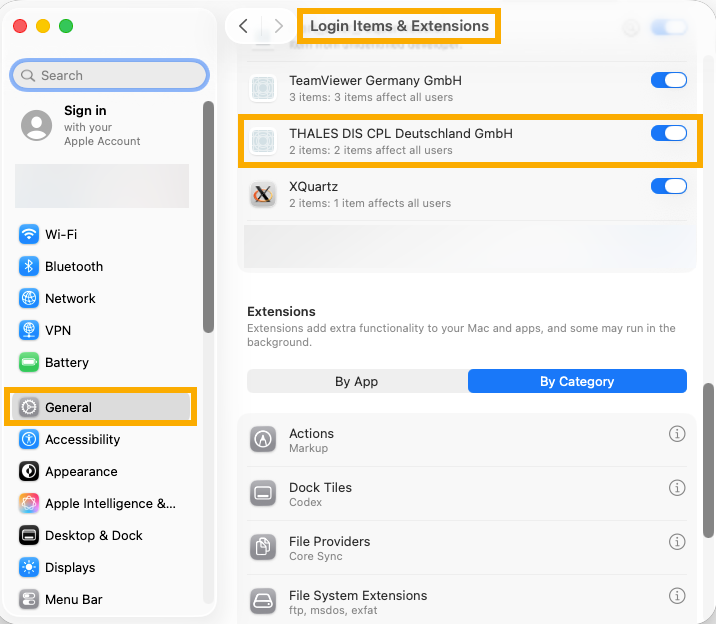

- Open System Settings > General > Login Items & Extensions.
- Under App Background Activity in macOS Tahoe, or Allow in the Background in macOS Ventura, Sonoma, and Sequoia, confirm that THALES DIS CPL Deutschland GmbH is enabled.
- Launch your application either directly or by clicking Launch in CalderaDock.
- If the application does not open or the licence is not detected, restart your Mac and try again.
The check is successful when the application opens normally and detects its Sentinel licence or USB key.
If the issue continues, open CalderaDock > Licences and check both the licence status and the Sentinel status in the License Manager section before contacting support.
Older versions of Sentinel LDK
If you experience issues after updating CalderaDock or Sentinel LDK, you may need to install an earlier Sentinel LDK version. Follow the instructions for your operating system.
Warning
Install this version only if instructed to do so by your Caldera Distributor or Caldera Support team.
Before installing, check the currently installed version:
- Open a web browser and enter localhost:1947.
- Open the Diagnostics tab and check the installed version:
Download the installer: macOS Sentinel LDK Runtime 9.15 installer.
- Double-click the downloaded Sentinel_Runtime.dmg file. The disk image mounts and opens a new window.
- Double-click Install Sentinel Runtime Environment and follow the installation instructions:
Warning
Install this version only if instructed to do so by your Caldera Distributor or Caldera Support team.
Before installing, check the currently installed version:
- Open a web browser and enter localhost:1947.
- Open the Diagnostics tab and check the installed version:
Download the installer: Ubuntu Runtime version 9.15.
To install:
- After downloading, extract the archive and select the aksusbd_9.15-1_amd64.deb file. The other files are intended for different processor architectures.
-
Open the folder containing the extracted files and double-click aksusbd_9.15-1_amd64.deb to start the installation. If it does not open with the GDebi Package Installer, right-click the file and select an appropriate package installer.
Warning
Install this version only if instructed to do so by your Caldera Distributor or Caldera Support team.
Before installing, check the currently installed version:
- Open a web browser and enter localhost:1947.
- Open the Diagnostics tab and check the installed version:
Download the installer: Sentinel LDK Runtime version 9.15.
- Download and extract Sentinel_LDK_Run-time_setup.zip.
- Open the folder containing the extracted files.
- Double-click HASPUserSetup.exe to start the installation.
