swissQprint Impala and Nyala 5 - Overview

Supported Models

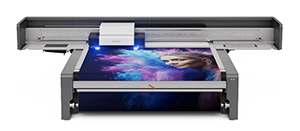

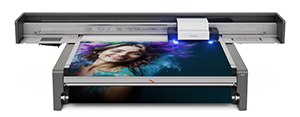

Impala 5 2540 x 2030mm	Nyala 5 3240 x 2030mm

• UV LED flatbed printers
• Maximum 10 color channels and 20 printheads

• Roll-to-roll as an option

    Info

  In Table mode, an additional 5 mm margin is available in each direction, as the printer is capable of printing outside the vacuum zone.

Drivers

• Impala-5-ML (starting with V19)
• Nyala-5-ML (starting with V19)
• Impala-5
• Nyala-5

Drivers history

• CalderaRIP V19:

  • In this version, two dedicated ML drivers have been developed so that you can benefit from new improvements to the multilayer feature, particularly when loading multilayer files from PrimeCenter. Additionally, some features incompatible with multilayer printing have been disabled during the loading of these files to reduce the risk of operation errors. Learn more.

      Warning

    Before switching to your multilayer driver from V19, ensure that you re-import your customized color management settings and presets (also known as QuickPrints or QuickConfigs). Learn more.

• CalderaRIP V18.1.1:
  • We've resolved an issue that caused the software to crash when printing a single-layer image.
• CalderaRIP V18.1:
  • Correction of a problem in these drivers that prevented the processing of multi-resolution jobs, causing them to get stuck in the Spooler.
• CalderaRIP V18.0:
  • Supported since this version

Inks

Cyan   Magenta   Yellow   Black   Light Cyan   Light Magenta   Light Black

Orange White   Neon yellow   Neon pink   Varnish   Primer

They also support four Special inks (Primer, Varnish, White Underlay, and White Overlay) as Spot Inks. Learn more with the dedicated article.
