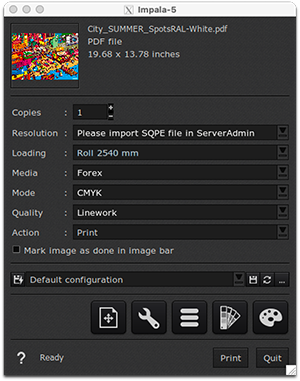

Resolutions
To view the resolutions on the Print Module Interface, you need to import the .sqpe file from Lory, the printer controller software by SwissQprint. Please follow these steps:
- Open Lory.
- On the Extras menu, click on "Export RIP configuration".
- Export the .sqpe file to a location accessible to the CalderaRIP workstation.
- Open CalderaRIP.

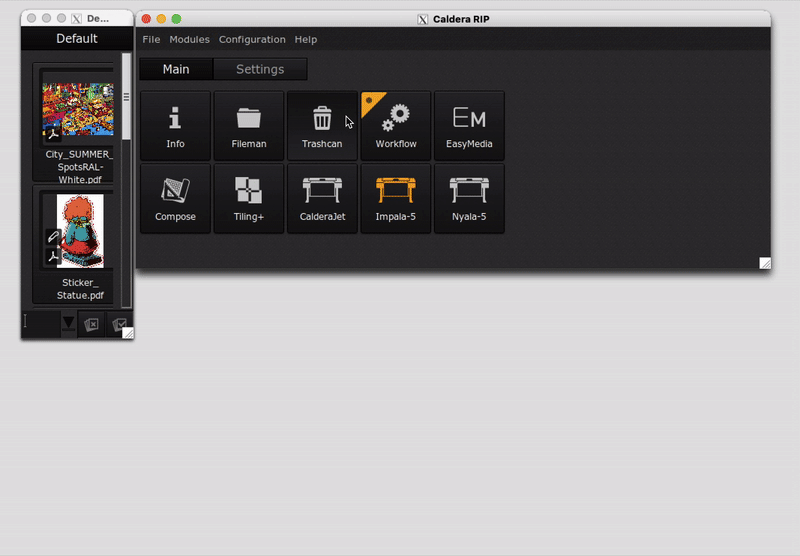

- In the Settings tab, click on the ServerAdmin icon:
- When the ServerAdmin opens, select your printer and click on Configure.
- A new window will open, directly on the Connection tab.
- Click on the "Get device infos" button and use the file browser to locate the previously exported .sqpe file:
- Click on Load.
Warning
Printing is not possible without importing the SQPE file. When using the "Nest" action, the job will remain on hold in the Spooler. When using the "Print" action, you will get a "driver error" message.
If you have any problems with the import, please do not hesitate to contact our support team.
Loading
| Impala-5 | Nyala-5 |
|
|
Media
This driver comes with only a default media not calibrated.
Discover how to manage media with EasyMedia by clicking here.
Mode
CMYK
Quality
|
|
Info
Custom qualities can be defined in Lory by the operator.
Action
As these are printers with a controller, they support only two actions:
- Nest
Other actions, Rip, Rip then Print, or Keep the ripped file, are not available with these drivers.
