How to use Chinese, Japanese or Korean as input in CalderaRIP?

Updated
This procedure is compatible with Linux Debian 8 (Jessie) and macOS 10 (Yosemite) or later.

To effectively work with text in Chinese, Japanese, or Korean within CalderaRIP, it is essential to enable the appropriate input methods. Please follow the steps outlined below to set up Chinese, Japanese, or Korean input.

  Info

All users who wish to use Chinese, Japanese, or Korean input on the same workstation must follow this procedure.

  1. Download this calpatch and copy it on your workstation.
  2. Double-click on the calpatch.
  3. Follow the instructions to perform the calpatch installation:
    CalderaRIP - Chinese, japanese or koren input 1.png

  4. You need then to configure the IBus. Double-click on the IBus Setup icon:
    CalderaRIP - Chinese, japanese or koren input 2.png

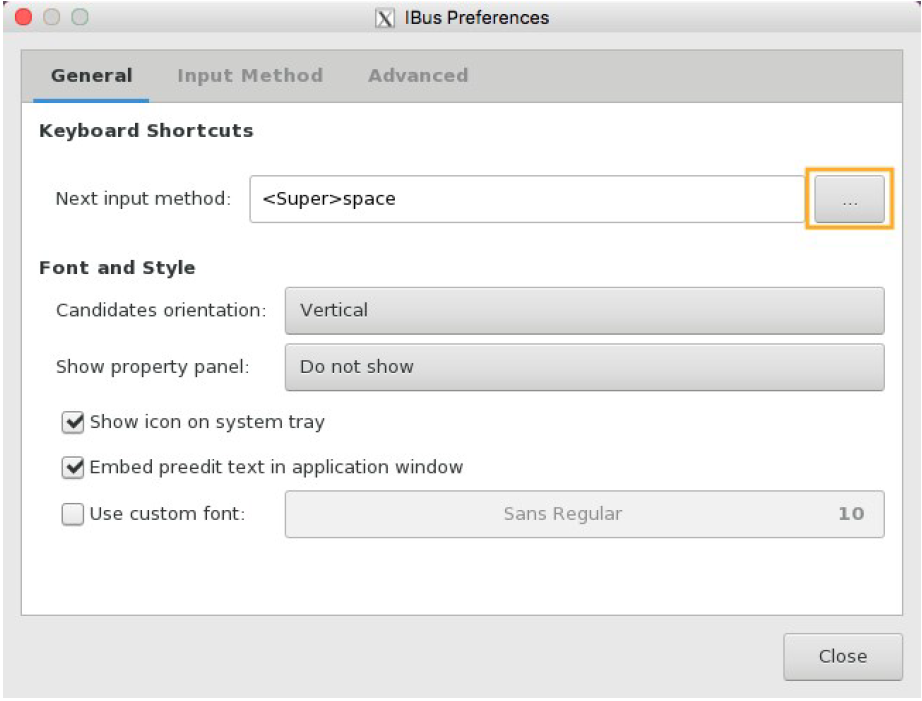

  5. It opens the IBus Preferences window. Click on the ellipsis button [...] next to the field "Next input method":
    CalderaRIP - Chinese, japanese or koren input 3.png

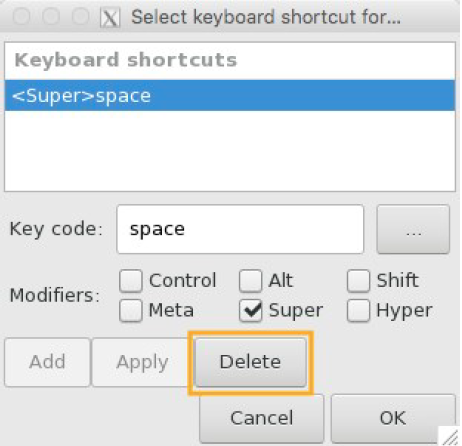

  6. In the following window, remove the Keyboard shortcuts <Super>space: select it and click Delete:
    CalderaRIP - Chinese, japanese or koren input 4.png

  7. Then, add a new Keyboard shortcut using <Control>space: select Control as Modifiers and click Add:
    CalderaRIP - Chinese, japanese or koren input 5.png

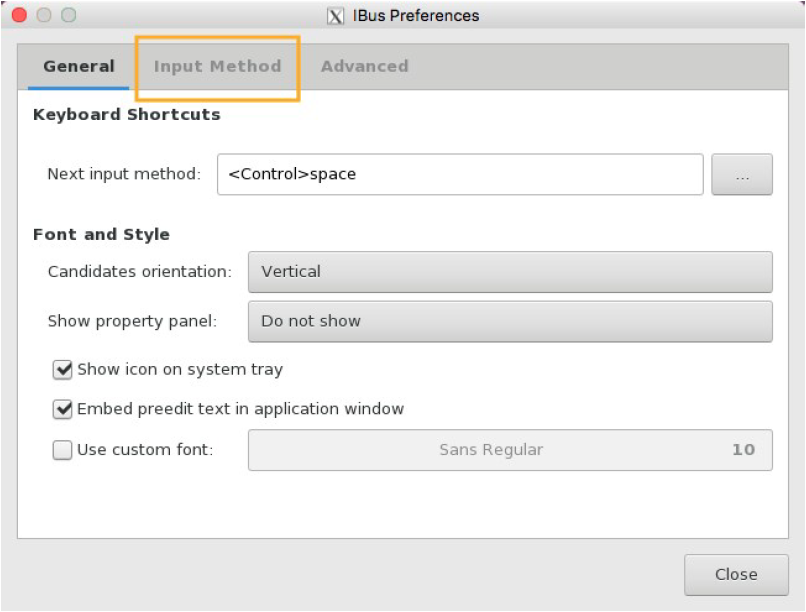

  8. Click OK to close the window. Then, go to the Input Method tab:
    CalderaRIP - Chinese, japanese or koren input 6.png

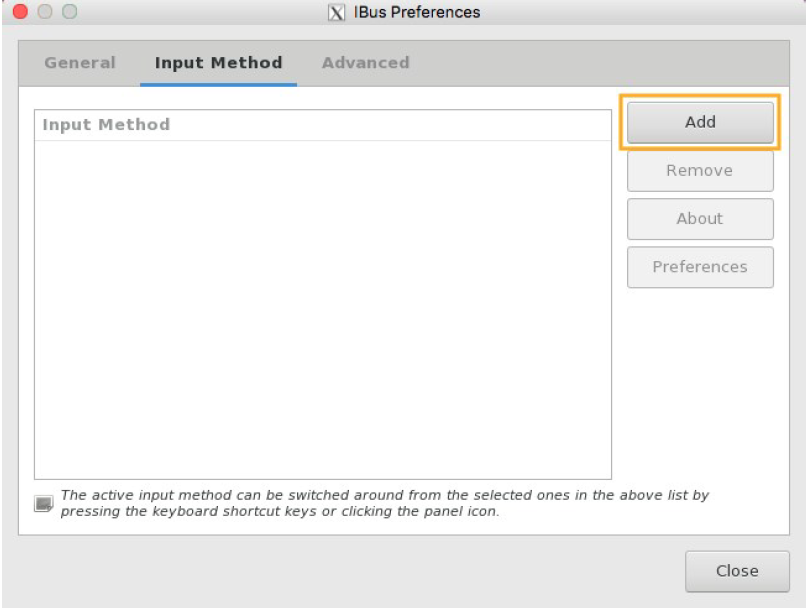

  9. There, click Add to add a new input method:
    CalderaRIP - Chinese, japanese or koren input 7.png

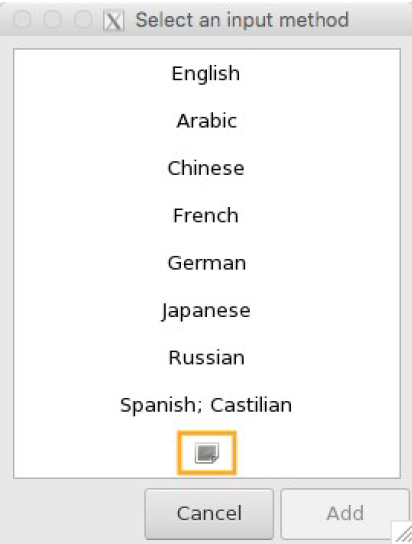

  10. Select the input method you want to add. Click on the panel icon to display more languages:
    CalderaRIP - Chinese, japanese or koren input 8.png

  11. If several input methods exist for the same language, as in our example, please select the one you want and click Add:
    CalderaRIP - Chinese, japanese or koren input 9.png

  12. When you have installed all the input methods you want, click Close and reboot the workstation.

      Warning

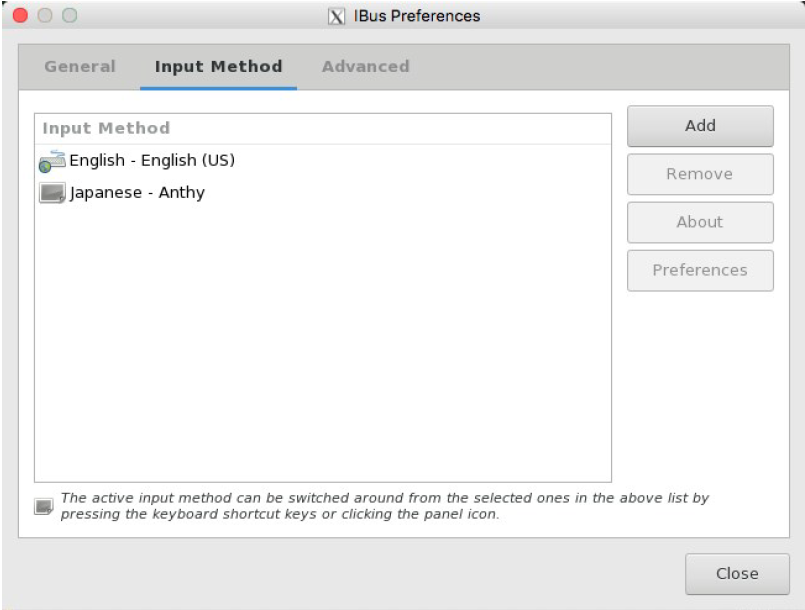

    Please note that for Korean input, you may need to click on Preferences to activate 'Start in Hangul mode.' This setting will prompt you to use Korean words when switching to Korean input. If this option is not enabled, you will need to press the Hangul toggle key to switch from the Latin alphabet to Korean characters.

    CalderaRIP - Chinese, japanese or koren input 10.png

  13. After the reboot, you will be able to switch between your input languages in CalderaRIP:
    CalderaRIP - Chinese, japanese or koren input 11.png

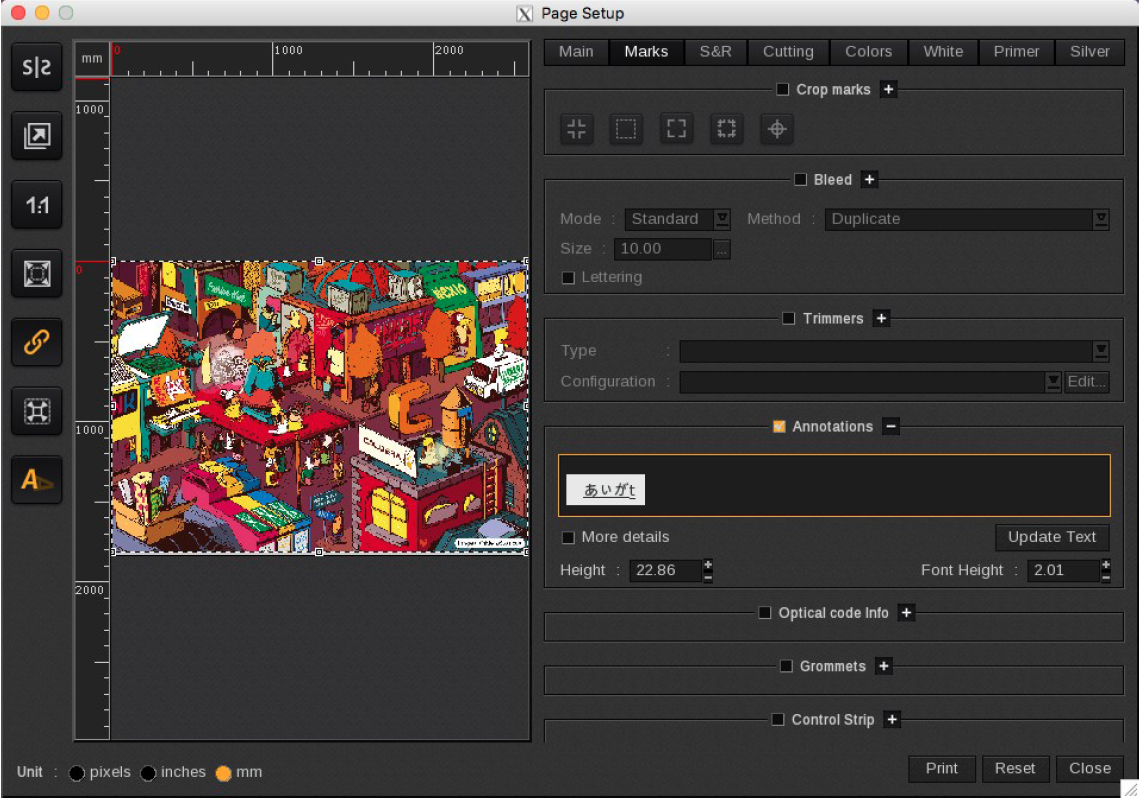

  14. This means you can then start to use Chinese, Japanese, or Korean in your CalderaRIP.
    In this example, we used it on the Page Setup > Marks tab > Annotations.
    Press Space to accept the Chinese characters. For Korean and Japanese, press Enter:
    CalderaRIP - Chinese, japanese or koren input 12.png
