Graphtec CE8000 Series - Overview

Supported models

Graphtec CE8000 Series

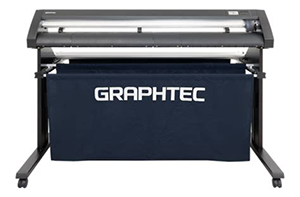

Graphtec CE8000.png

  • Successor of the CE7000 Series. One model for each cutting width:
    • CE8000-130: 50" (image)
    • CE8000-40: 15"
    • CE8000-60: 24"
  • For Signage and Vinyl Graphics, DTF Apparel, print & cut, pop & Packaging, etc.
  • Enhanced Rigidity for better feeding and cutting, and new Wireless LAN capability.



Drivers

  • Graphtec CE8000 (Marks Type 2)
  • Graphtec CE8000 Marks Type 1



Drivers history

  • CalderaRIP V18.2:
    • Supported since this version.



Installation

The Graphtec CE8000 are VisualCut cutters:



Mark types and detection

These cutters support two types of cutting marks, which is why there are two VisualCut drivers (one for each mark). Depending on your production, ensure you use the correct driver and select the optimal positioning of the detection tool, as outlined in the following guide.

  Warning

The simplest way to work with these devices is by positioning the detection tool inside the job corners. However, to ensure this setup functions correctly, please avoid pressing the “Origin” option on the quick menu of the cutter panel, as this will lead to detection failure.

Marks Type 1 Marks Type 2 Positioning

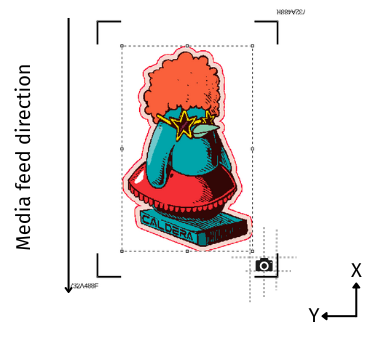

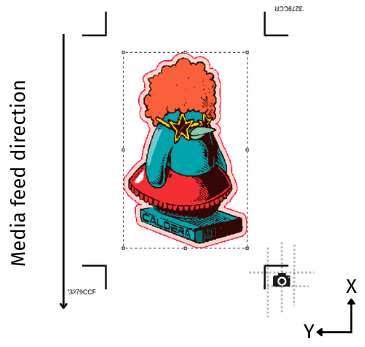

type1, single.png type2, single.png Single with marks

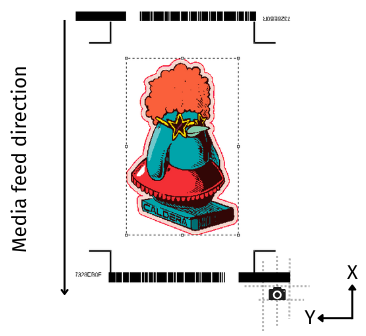

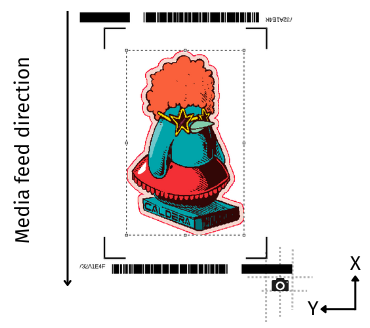

type1, auto.png type2, auto.png

Automatic Repeat

(Barcode activation required)



Considerations on marks

  • In Single with Marks mode, the cutter detects the bottom-right mark first, while in Auto Repeat mode, it detects the top-right mark. This difference can result in detection errors if the job is not properly aligned.
  • The cutter can only detect intermediate marks on the front edge if there are corresponding intermediate marks on the sides; otherwise, they will be ignored. Please note that back-edge marks are never detected.




Panelling option

Both drivers support Panelling; however, only in the feed direction:

Example from a similar model

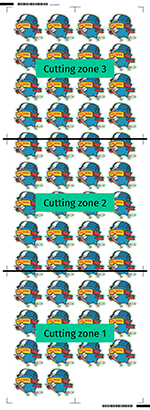

Panelling is useful for cutting long jobs by dividing them into multiple cutting zones rather than treating the entire job as a single area. The cutter processes all shapes within a zone before moving on to the next, which enhances accuracy by minimizing tool movements. Additionally, intermediate marks are detected as needed for each cutting zone, further improving precision:




Positioning option

It is recommended that you configure the interface of these cutters, depending on your production:

  • When working with Wireless or Wired LAN, and USB cables, any positioning option can be used in CalderaRIP, as the software and cutter will communicate constantly.

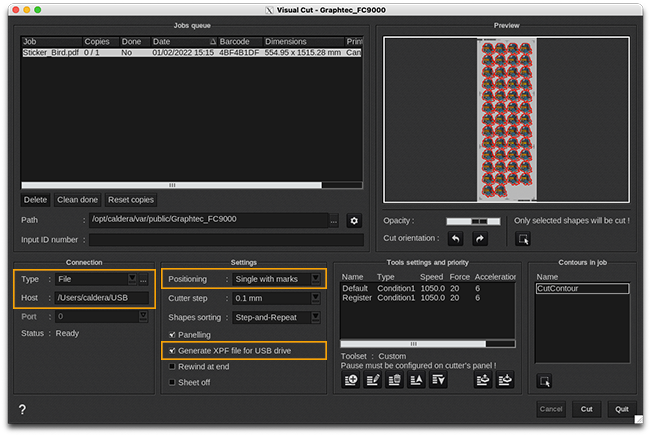

  • If you are using a USB key or flash drive, only the "Single with marks" positioning can be used, and the "Generate XPF file for USB drive" option must be enabled.

      Info

    The XPF file format is used with USB workflows and works exclusively with “Single with marks” positioning. Unlike “Automatic Repeat” positioning, it is applied once per job and does not require continuous communication with the cutter.

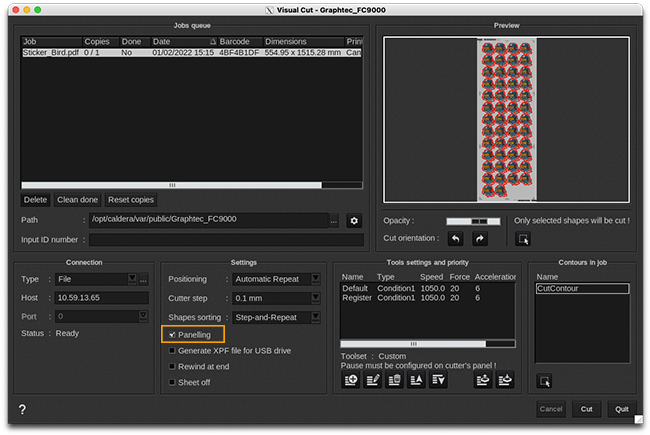

    Example from a similar model



You may be interested in reading:



 Tips & tricks

  • Barcodes and Automatic Repeat (Continuous Cut): To use Automatic Repeat mode for consecutive cutting of multiple jobs, you must enable the barcodes in the Cutting tab to print Graphtec's original Barcode.

      Info

    Although the software allows you to select a QR or standard code, these are not compatible with this cutter and will be ignored.

  • Cutter step: Ensure that the cutter step configured on the device matches the cutter step selected in the VisualCut interface.
  • Detection errors: The CE8000's sensor has a very narrow detection range. It is essential to align the job properly and adjust the contrast correctly, as detection errors can frequently occur on the CE8000 cutter, particularly when the job is skewed.
  • Jobs alignment: To minimize detection errors on the cutter:
    • Print-to-cut: Jobs must be aligned to the right side of the media/cutter.
    • Print, lamination, then cut: Jobs must be aligned to the left side of the media/cutter.
