In this article, we will explore 10 locations in CalderaRIP where you can change the units of measurement from metric to imperial, as an example, making it easy for you to adjust the settings to suit your preferences.
Config module

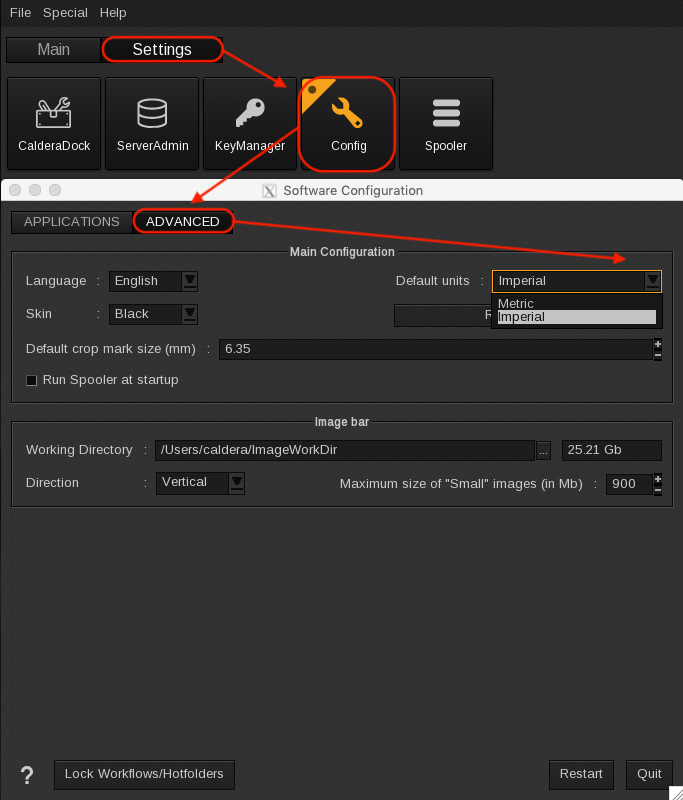

Settings > Config > Advanced > Default Units > Imperial:
ServerAdmin

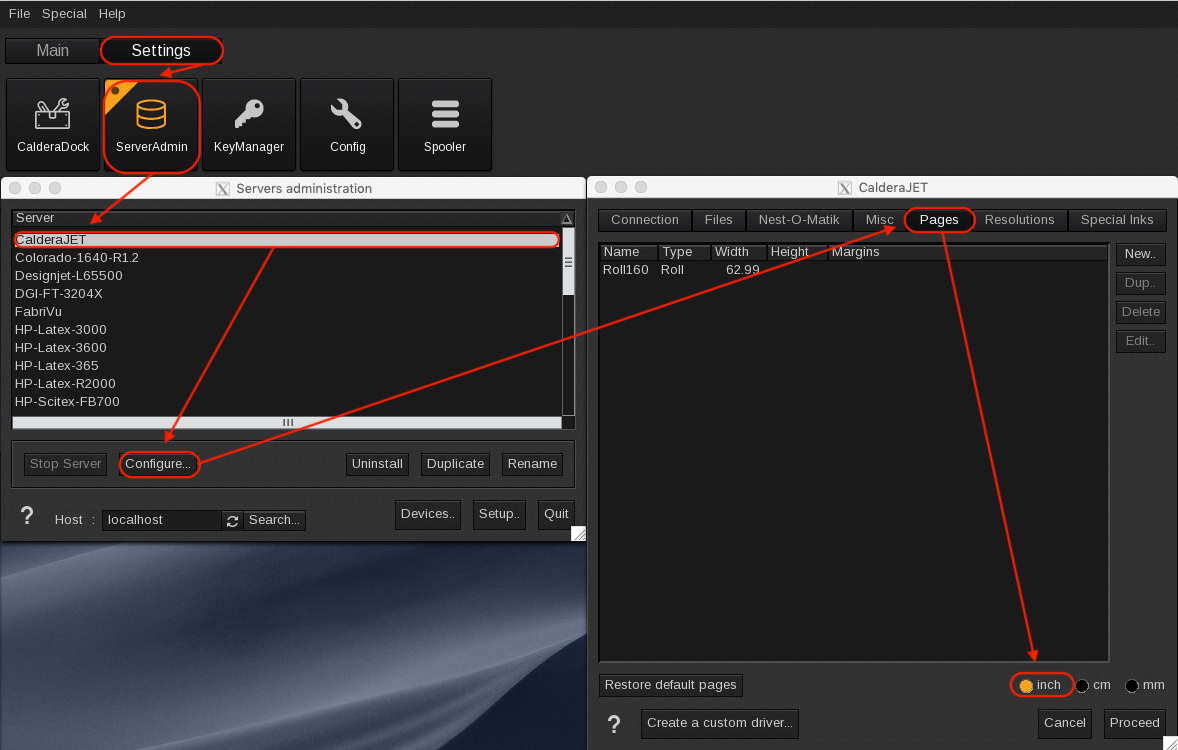

Settings > ServerAdmin > Select any printer driver > Configure > Pages > Inch:
Warning
This process on a driver also changes the units of measurement on all the other printer drivers.
FileMan

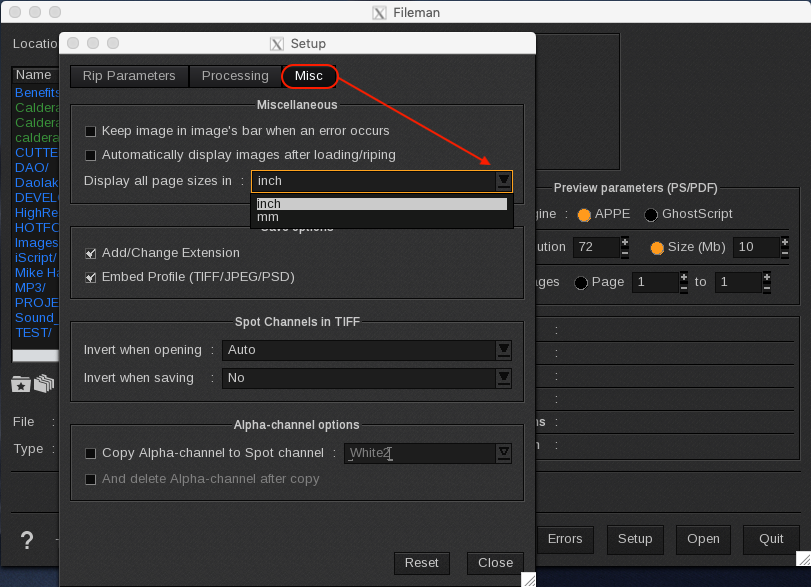

FileMan > Setup > Misc > Display all page sizes in: > Inch
HotFolders (existing)

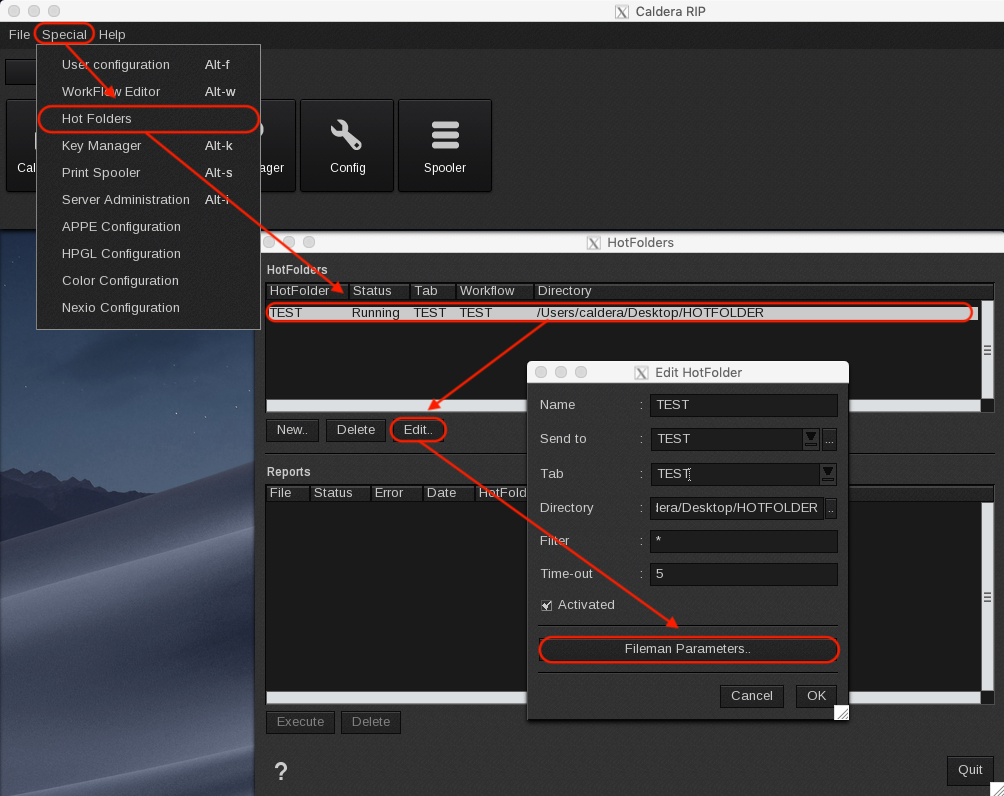

Application Bar > Configuration menu (or Special menu in older versions) > HotFolder > Select one existing hotfolder > Edit > FileMan Parameters:
Info module

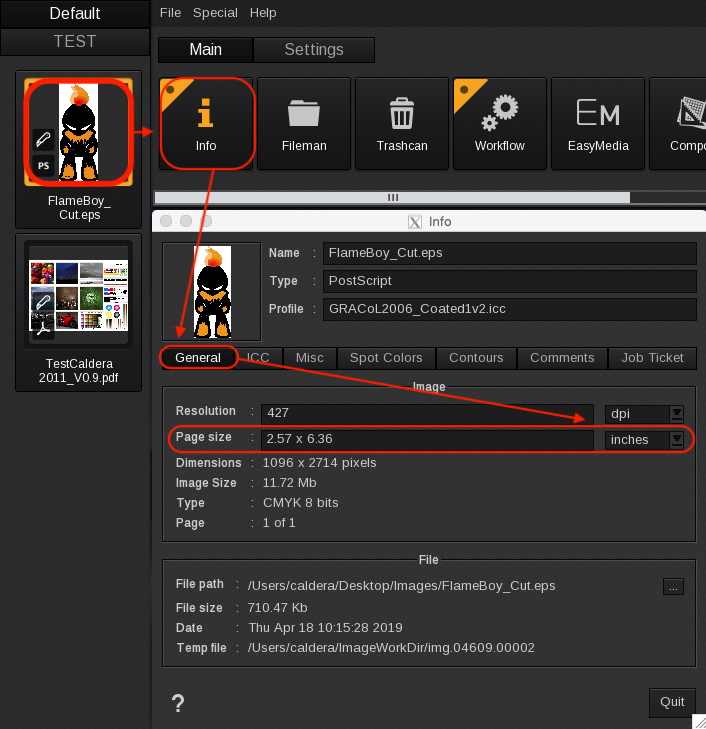

Drag and drop the image into the Info module > General tab > Page Size (to set the units of measurement):
Compose

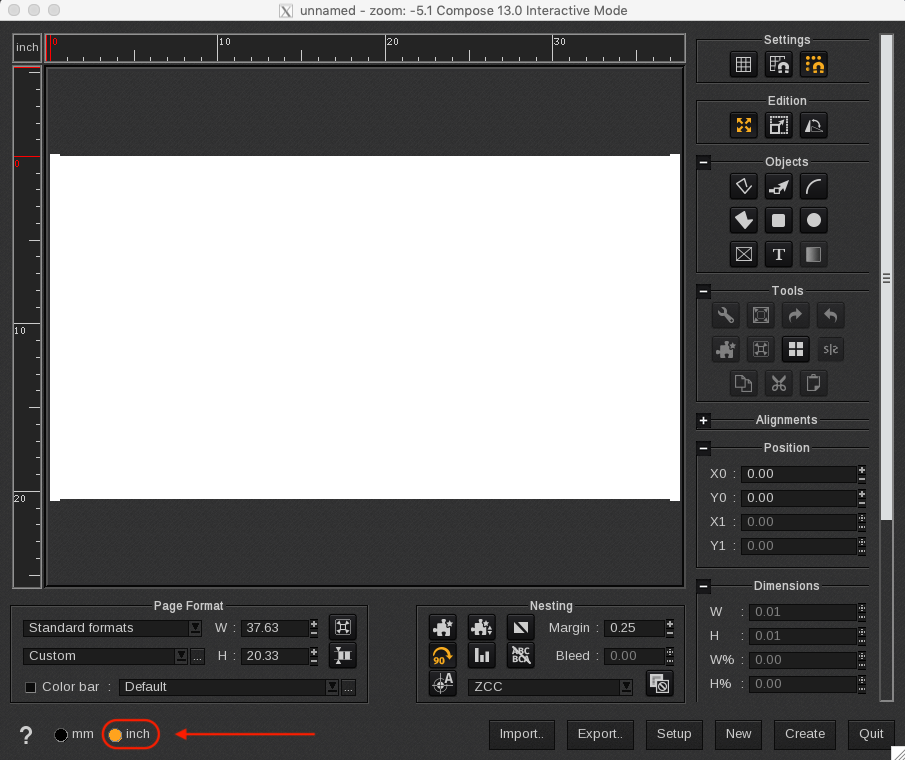

Compose > Change to Inch (at the lower left corner):
Tiling+
Tiling+ > Change to Inch (at the lower left corner):
Page Setup

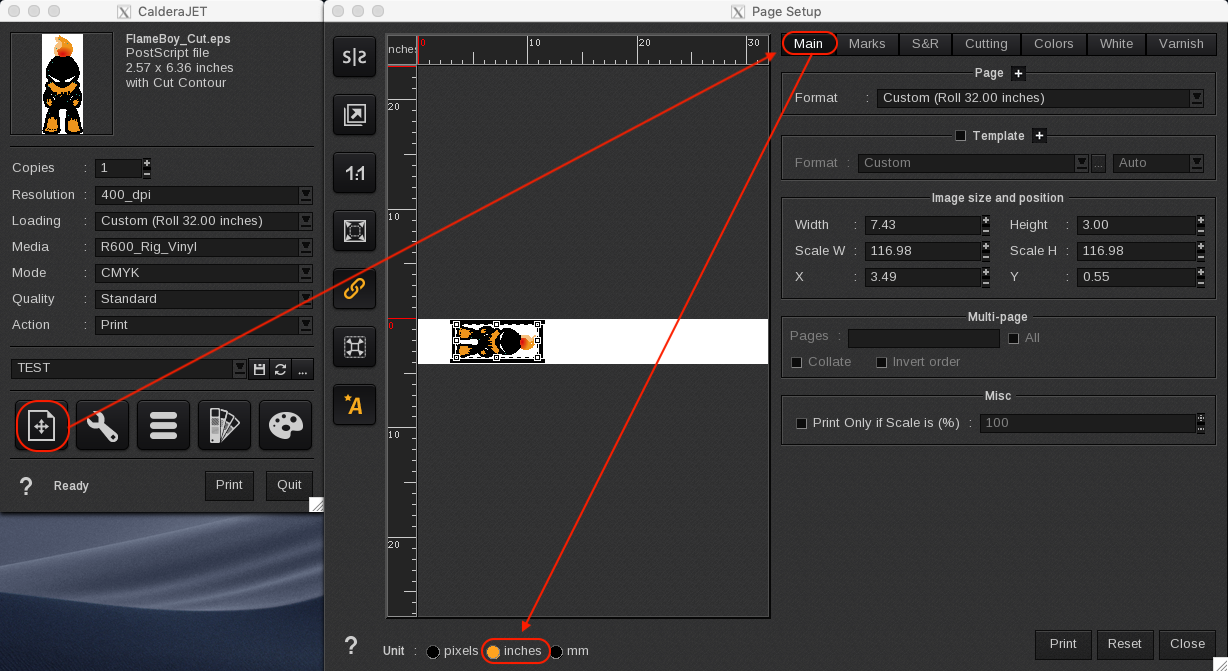

Page Setup > Main tab > Set the units of measurement to Inches (lower left corner).
Trimmers

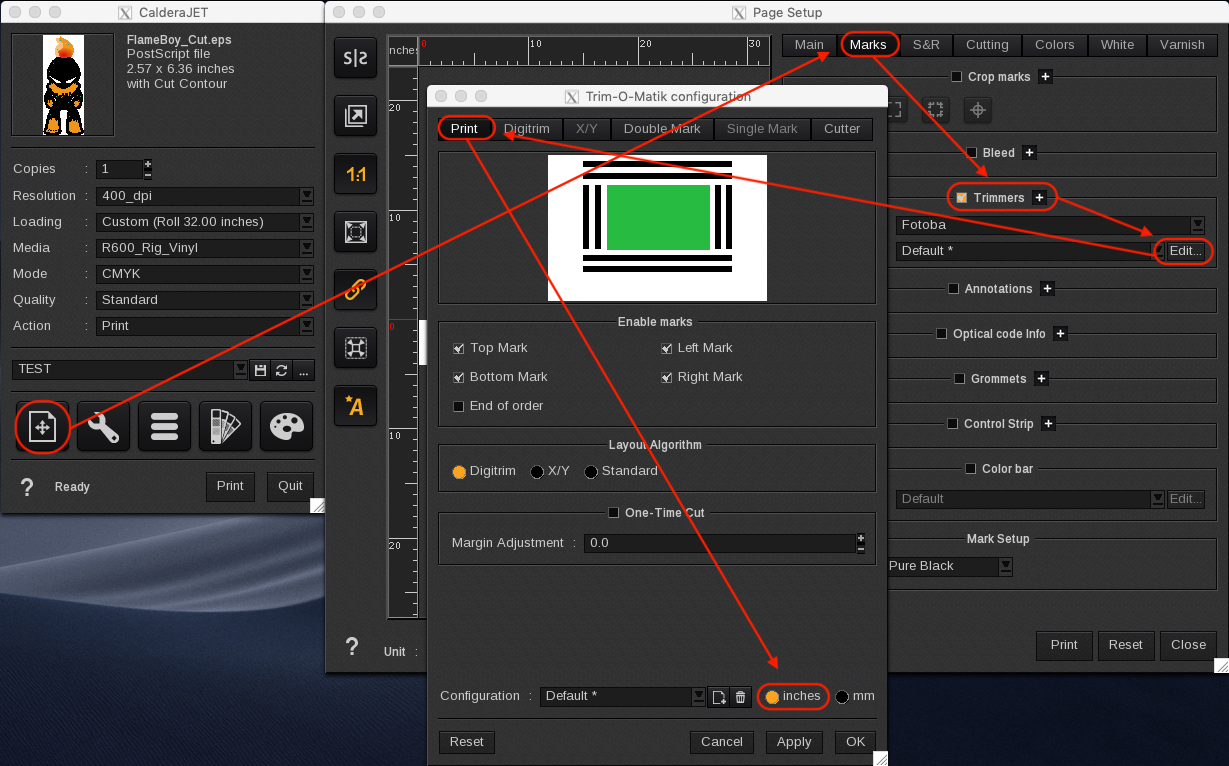

Print Module > Page Setup > Marks > Trimmers > Edit > Print > Set units of measurement to Inch:
Spooler

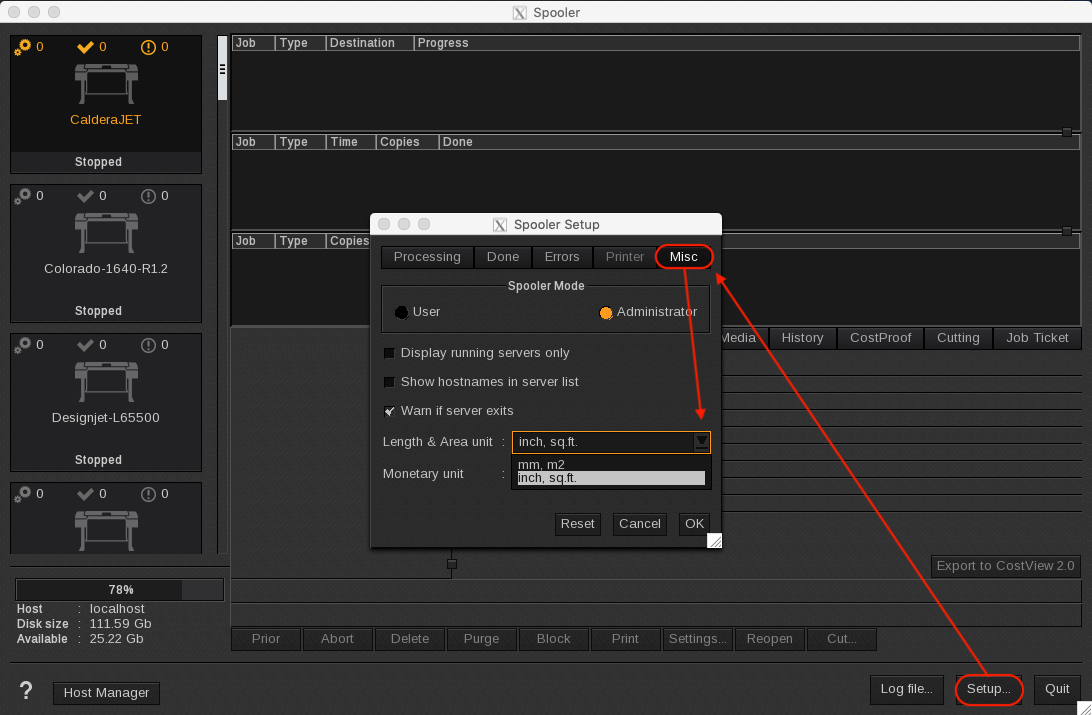

Spooler > Setup > Misc > Inch, sq. ft.:
