This article outlines how to export and import ICC profiles in EasyMedia. These steps can be used to back up profiles or transfer them between different CalderaRIP installations.
Continue reading the fully detailed article or watch the quick overview video:
Considerations
- A Media Profile Patch is saved with a *.calpatch extension. It contains the transition curve (if applicable), the linearization curve, and the ICC color look‑up table associated with a media profile.
- It is recommended to save any newly created custom profile as a Media Patch. This allows the profile to be safely backed up (for example on a network drive) and restored if the computer’s hard drive fails.
Export an ICC Profile

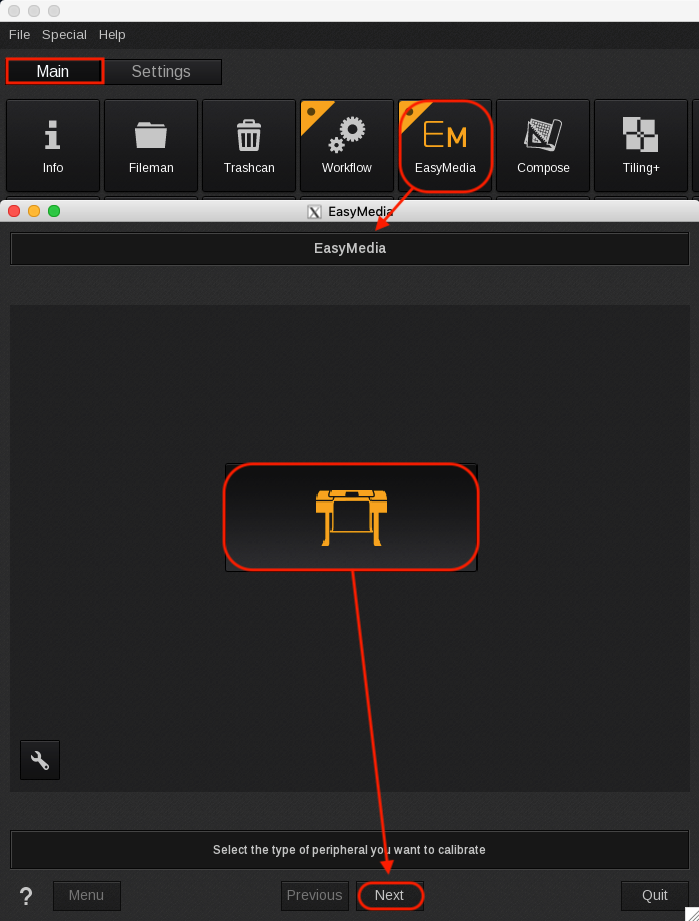

- To create a Media Profile Patch, click on the EasyMedia icon to launch the interface > then select the Printer icon > and click Next:

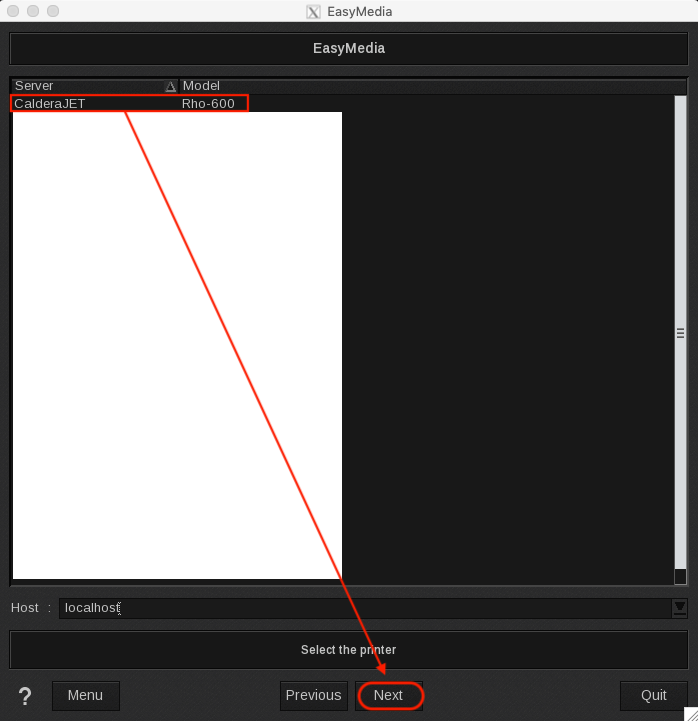

- Select the Printer Model (CalderaJET/Rho-600 in this example) > Next:

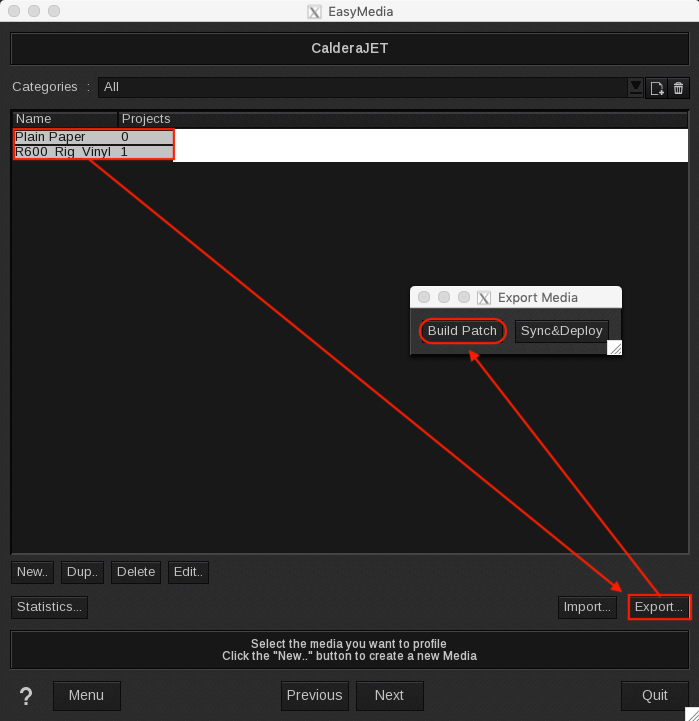

- Select the Media Profile(s) > Export > Build Patch > One Big Patch (if more than one):

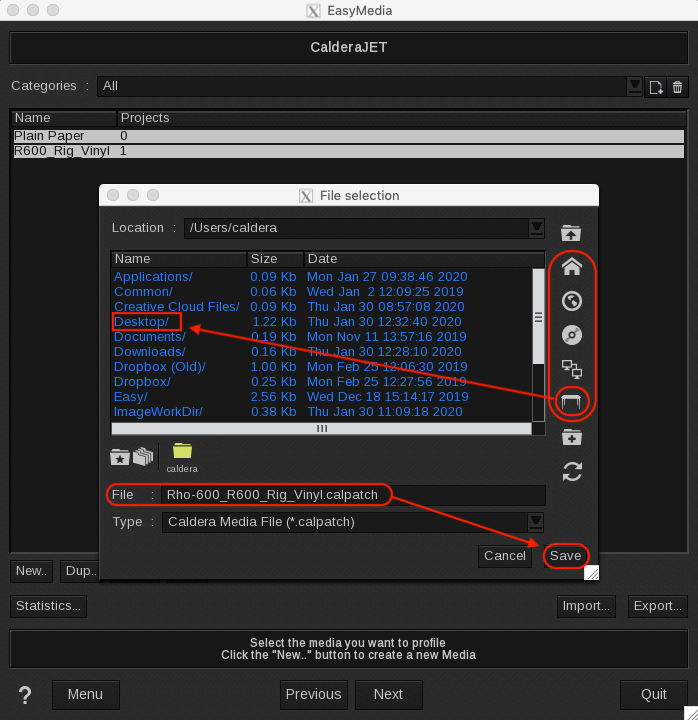

- Select the location (Desktop in this example) where the Media Profile Patch (*.calpatch) will be saved > then click Save:
- The profile(s) has been exported to the selected location.
Import an ICC Profile
- To install a Media Profile Patch, click on the EasyMedia icon to launch the interface > then select the Printer icon > and click Next:
- Select the Printer Model (CalderaJET/Rho-600 in this example) > Next:

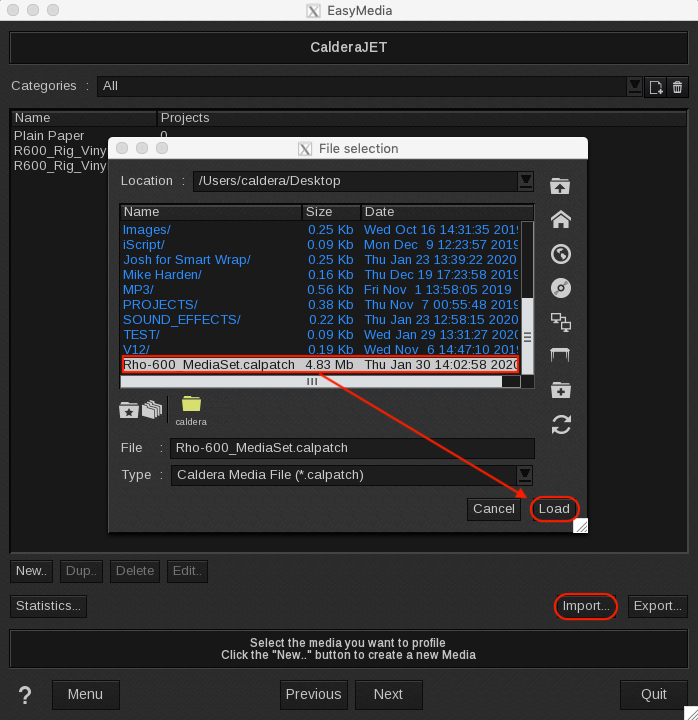

- Click the Import > Install Patch > then navigate to the Media Profile Patch (Rho-600 MediaSet.calpatch in this example) > Load:

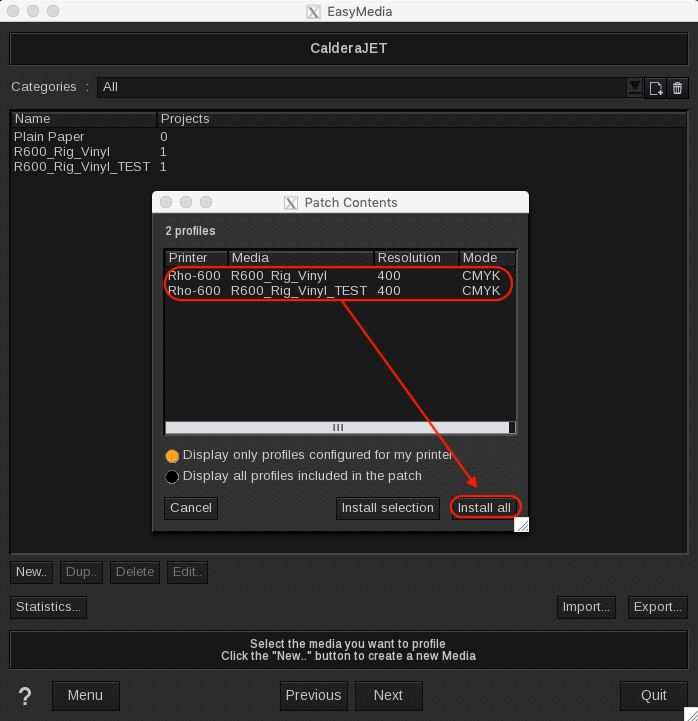

- Select the individual profile and Install Selection or simply click Install All:
- The profile(s) has been imported to EasyMedia.
