How to change the font size of the ImageBar tabs?

This article provides instructions for modifying the font size of the ImageBar tabs in CalderaRIP, which may appear too large or too small.

1. Close CalderaRIP.
2. Navigate to and edit the "Caldera" file located at:
   Black Skin Interface Grey Skin Interface

   /opt/caldera/lib/RESSOURCES/Caldera

   /opt/caldera/lib/SKINS/GREY/RESSOURCES/Caldera
3. Modify the following two lines, from...
   Caldera*tabrow*XmPushButton.renderTable:normal+2
   Caldera*tabrow*XmPushButton.marginHeight: 6

   To...


   Example of smaller font size Example of larger font size

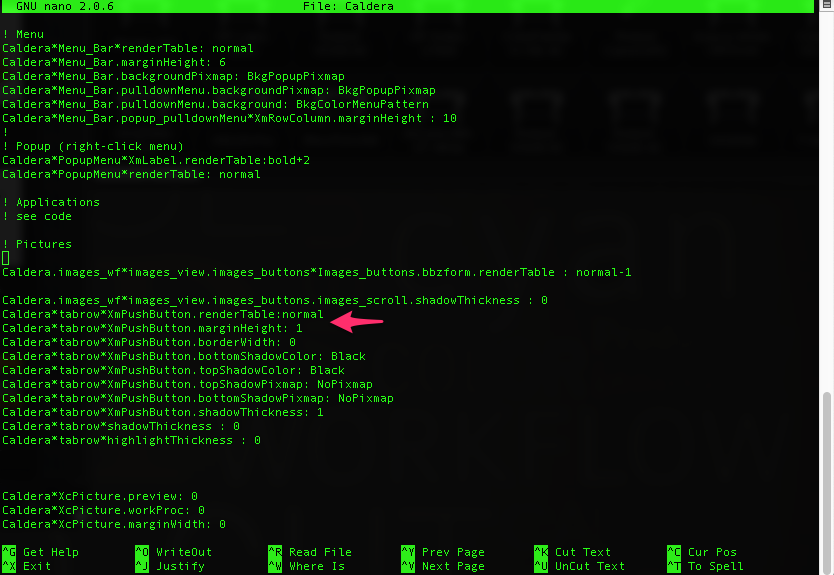

   Caldera*tabrow*XmPushButton.renderTable:normal
   Caldera*tabrow*XmPushButton.marginHeight: 1

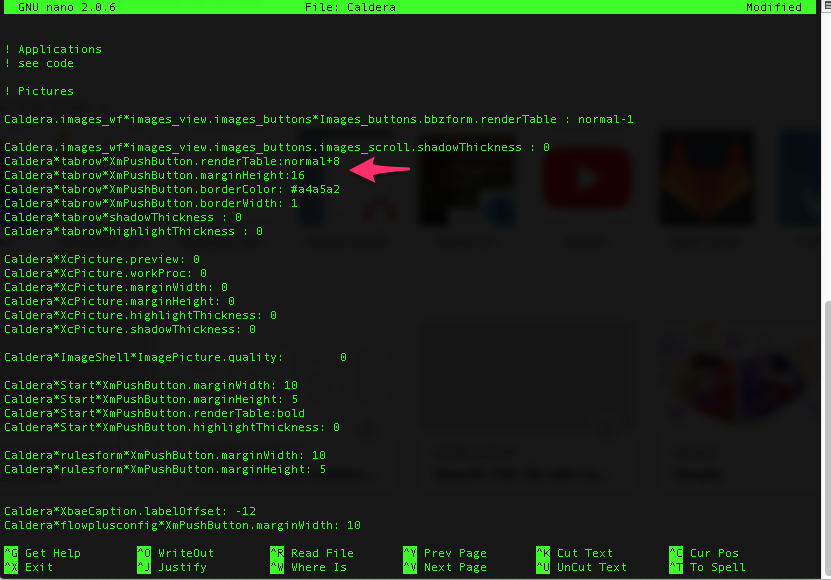

   Caldera*tabrow*XmPushButton.renderTable:normal+8
   Caldera*tabrow*XmPushButton.marginHeight: 16

4. Reboot the workstation.
5. Reopen CalderaRIP and verify the changes:

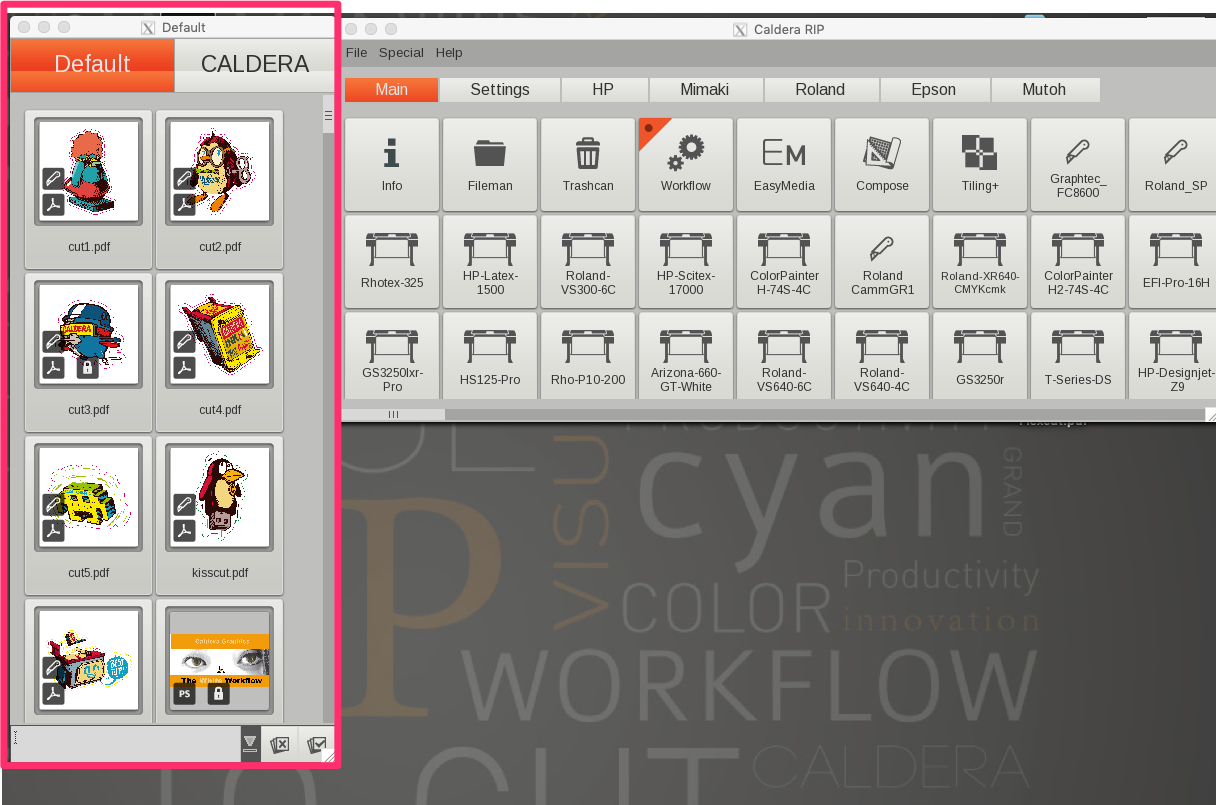

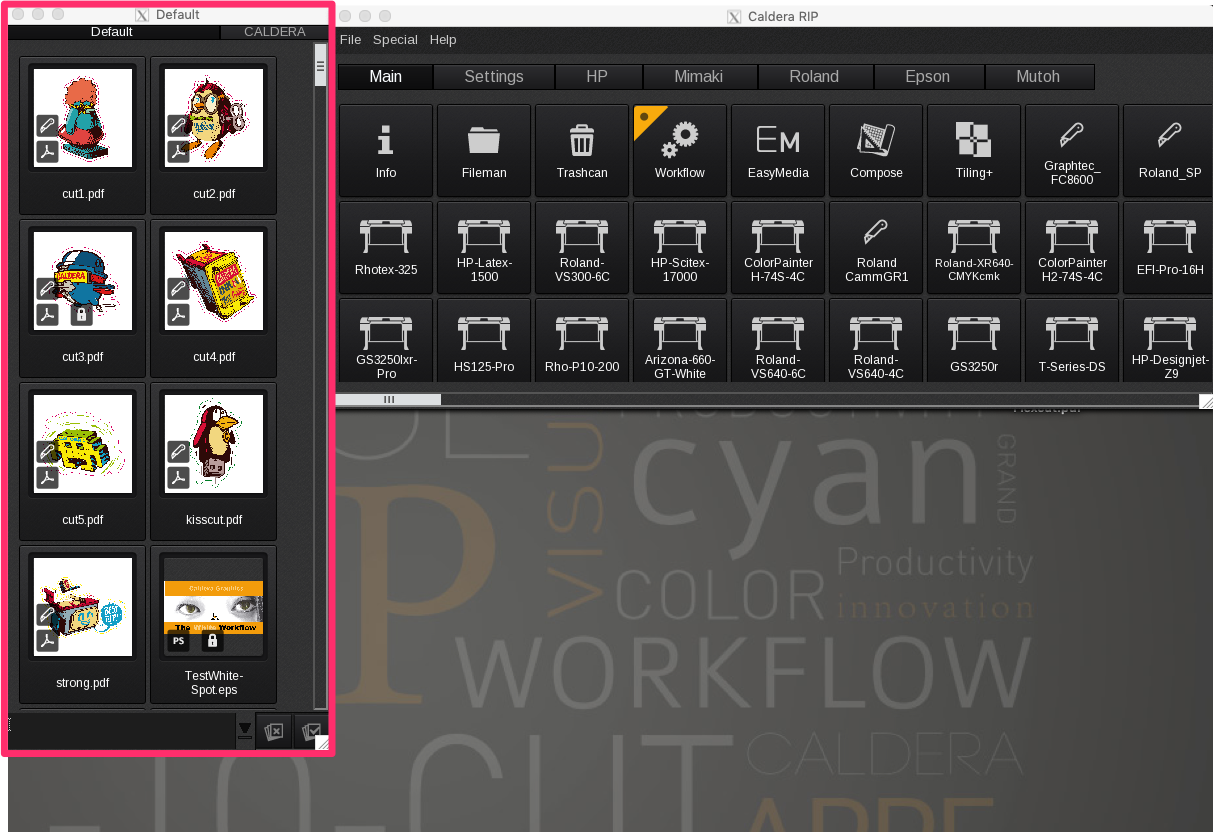

   Example of smaller font size Example of larger font size
