Graphtec FCX2000 - Overview

Supported models

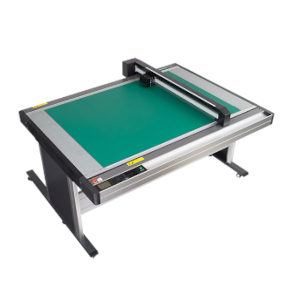

Flatbed cutting plotters: FCX2000-60VC (610 x 920 mm) FCX2000-120VC and  FCX2000-120ES (1200 x 920 mm) FCX2000-180VC (1800 x 920 mm) Official Website

Driver

• Graphtec FCX2000

Driver history

• CalderaRIP V14.0.0:
  • Plotter supported since this version.

Installation

Type of license

	CutServer
	GrandCut A/B

These plotters are driven by a CutServer / VisualCut license:

• How to install a VisualCut cutter?
• Visualcut - Overview

Connection

• USB connection
• Ethernet connection
• Generation of XPF file for USB drive

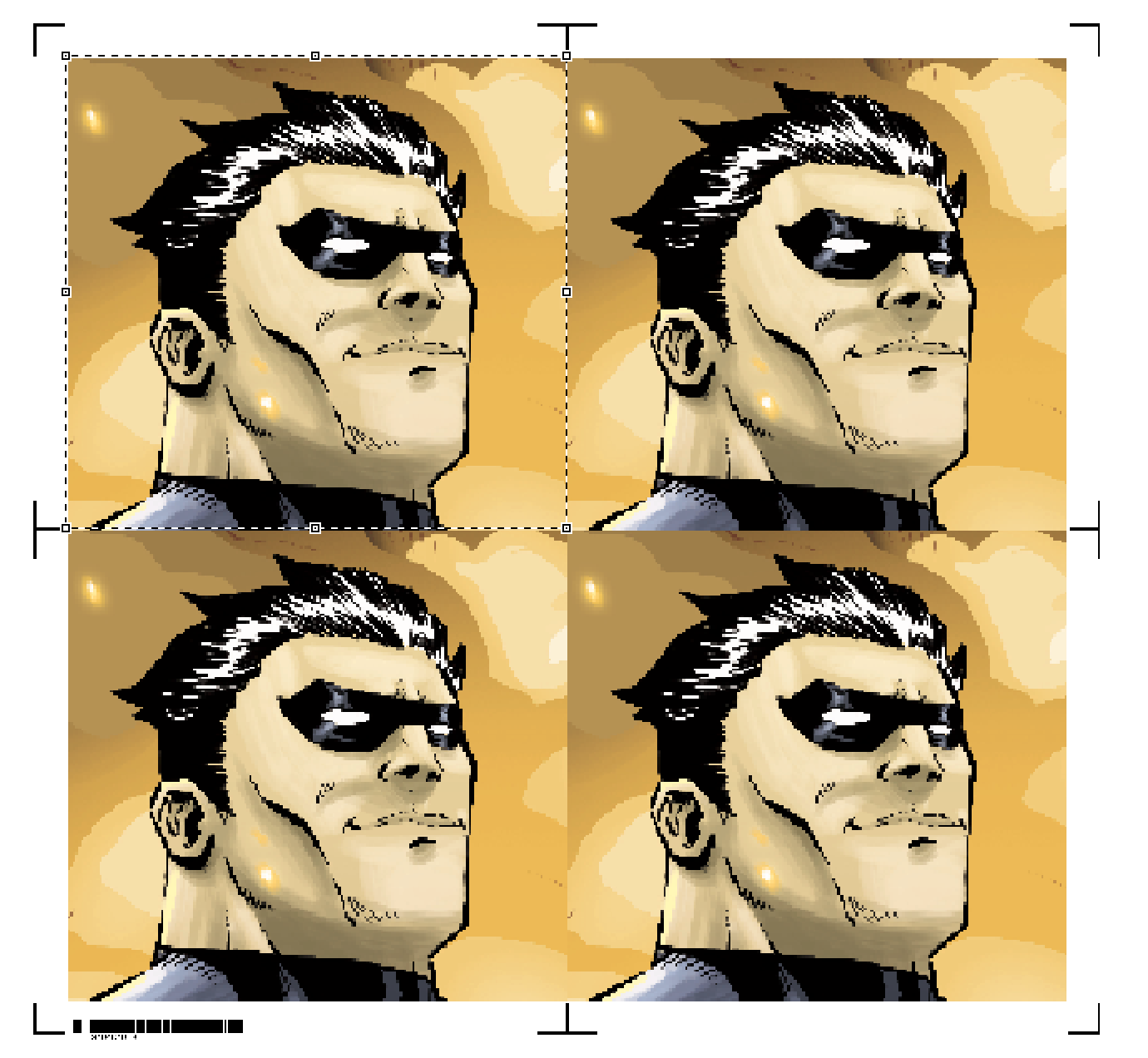

Marks types

• Grapthec Advanced Registration Mark Sensing System (ARMS)
  • Segment Area Compensation
• Graphtec BarCode generation

Custom margins capabilities:

• Left margin
• Left marks offset
• Horizontal spacing
• Horizontal size

Auto-rotate job is available (note that you need to enter your Cutter Limits - width and height).
