In this article, we will show you how to use the Underflood ("UF") quality modes for HP Latex 700W / 800W devices.
To do this, we will use a ready-made PDF file containing a white spot and print it on a substrate compatible with Spot quality modes called “My custom film”.
Info
Be sure that the white is enabled in the Page Setup window. If you have formerly used the sandwich mode, deactivate it.
Step 1: Create a new substrate in your printer
First, you must create a new custom substrate using the HP Latex 700W / 800W printer's panel.
Learn more about spot quality modes and how to add custom substrates directly from HP's documentation (Chapter 3: Handle the substrate, and Chapter 9.7: Printing with white ink).
Step 2: Load the PDF file

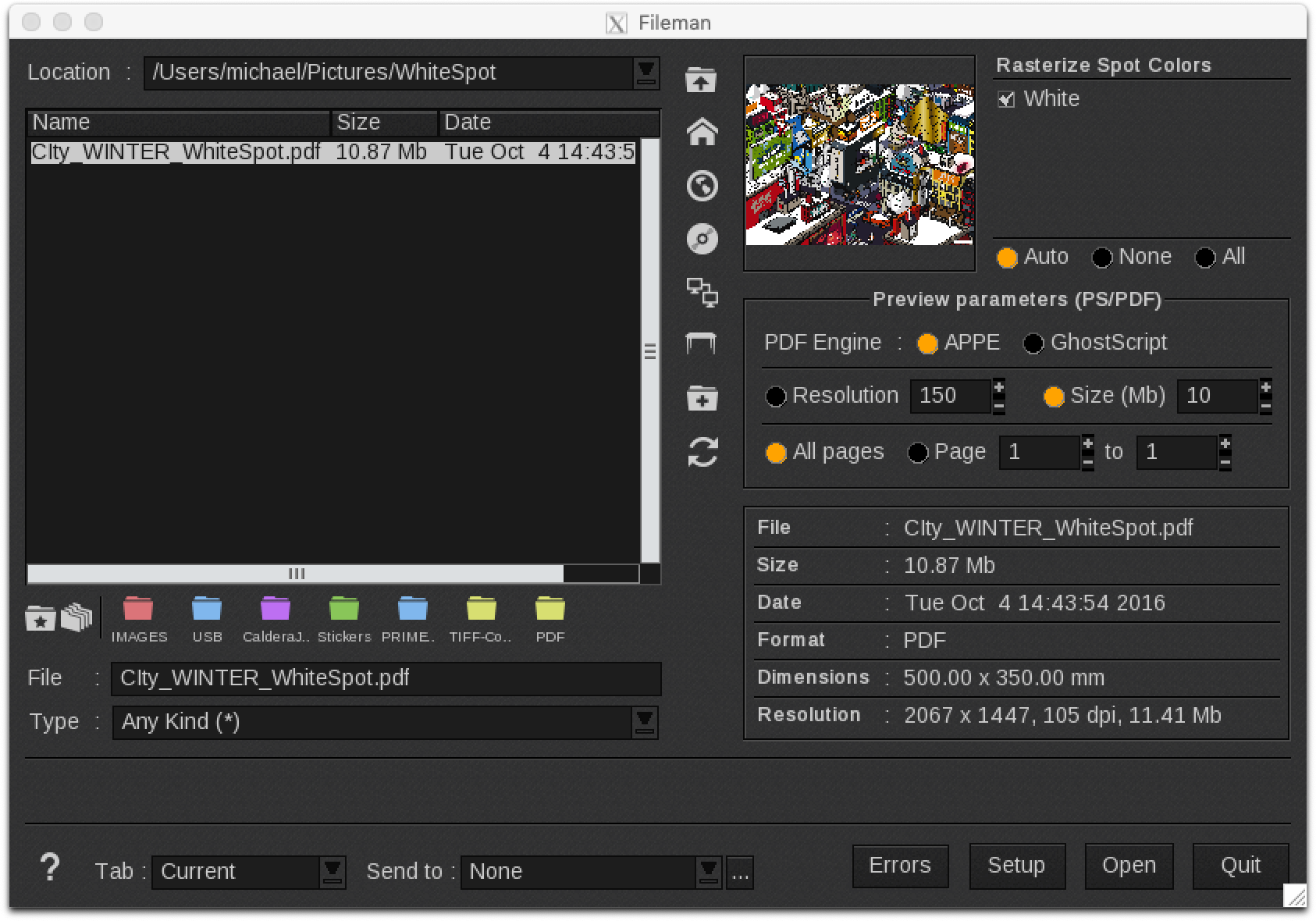

- Load the ready-made PDF file (City_WINTER_WhiteSpot.pdf) using the FileManager module:
- Drag and drop the file from the ImageBar to the Print module.
Step 3: Configure the job
- Launch the Print module of your HP Latex 700W / 800W.
- Select the Media named "My custom film".
- Select the Resolution 600.
- Select the Mode CMYK8.

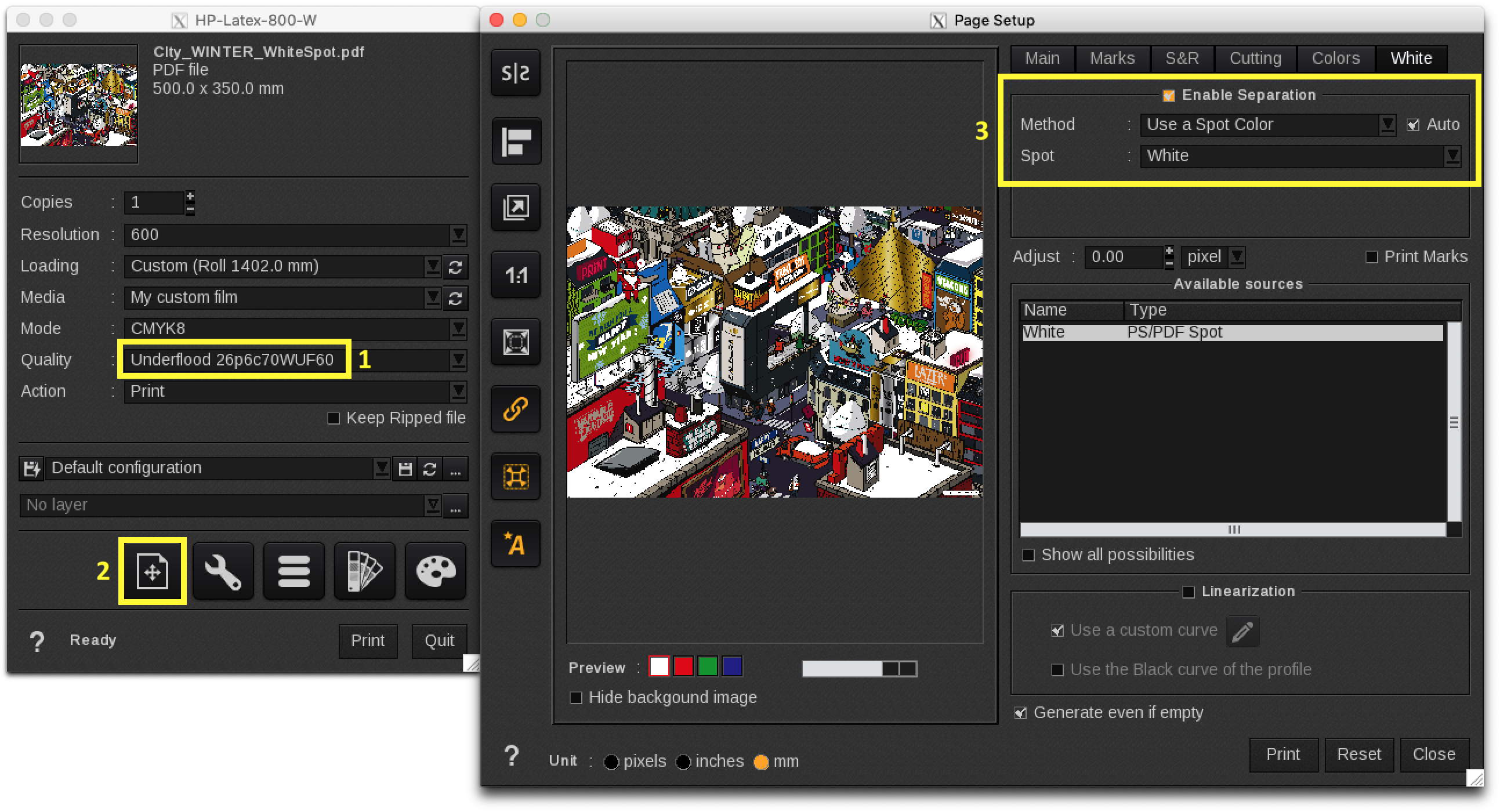

- Select the Quality Underflood (UF) (number 1 on the image).
- Go to the Page Setup (2).
- Go to the White tab, click on Enable Separation, and choose the Method: "Use a Spot Color" (3):
Info
When the "Auto" detection mode is enabled or checked, and as soon as a White spot is detected, the separation Method will be set to "Use a Spot Color" by default.
- In the same White tab, you can click on Hide background image, to see the Spot Color that will be printed using White ink (1):
Step 4: Print and track the job
- Once you are done, launch the printing process by clicking on the Print button.
- You will be able to check the processing of your job using the Spooler.
