To be able to create a calibration using the EasyMedia module with HP Latex 700/800 printers, you first need to create a new substrate or custom media using the printer panel. In this article, we will duplicate a calibration made for a Side A project to a Side B project.
Our substrate name is "My custom film".This substrate is compatible with a quality mode named: "Sandwich"
Info
Please refer to the HP latex 700/800 operation manual to get more details about this quality mode
- Launch the EasyMedia module then select the printer icon and click Next.
- Select your HP Latex 700/800 W printer driver and click on "Next". The "Synchronizing" process will start...
Info
Note that you can also click on "Import...", select "AutoSync", and choose to download "Missing presets only"
- Select your substrate (in our case "My custom film") and click on "Next".
- Select your completed "Media project" build for SideA (Quality: Sandwich 78p6c80WSW160 SA).

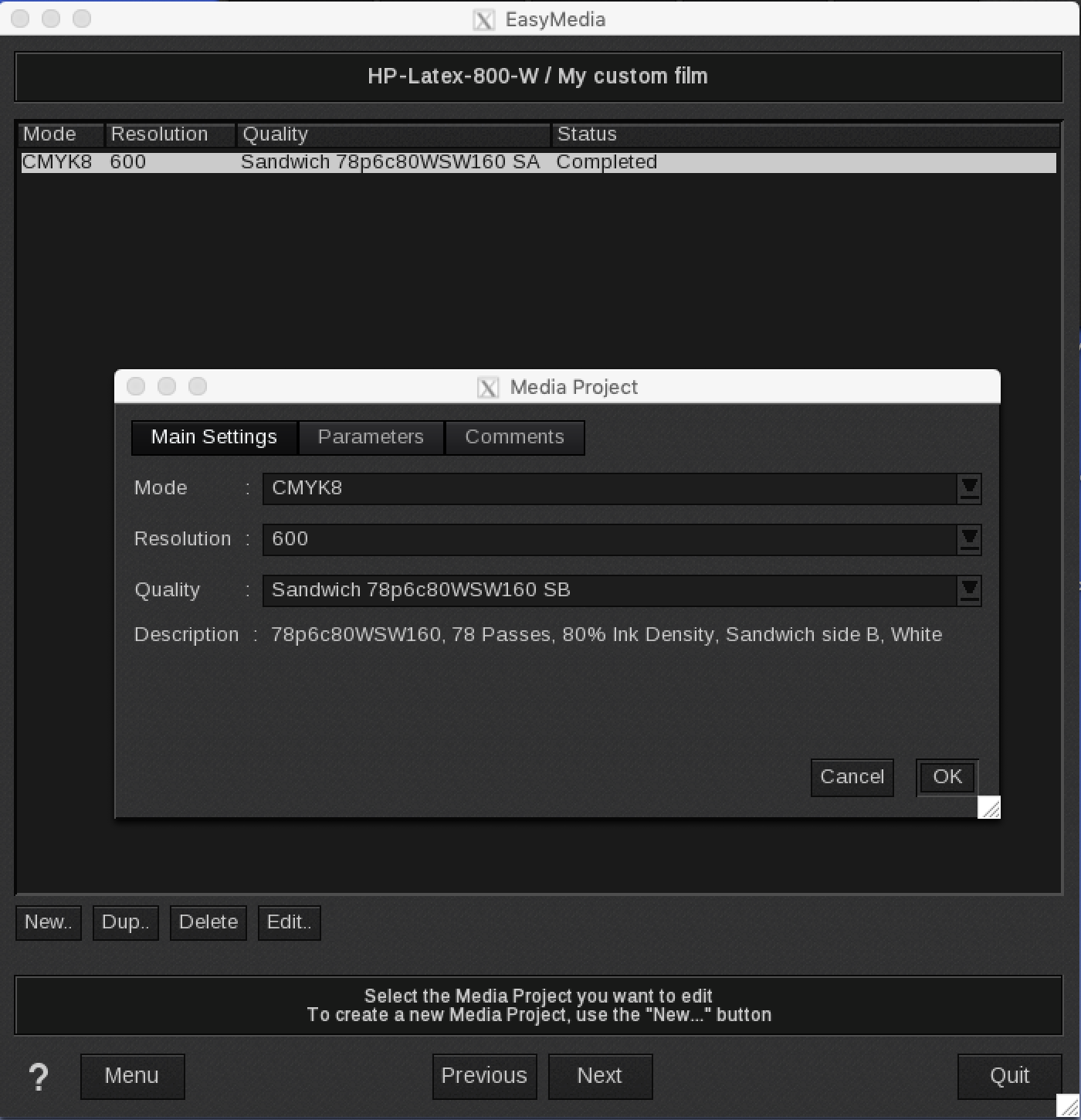

- Click on "Dup..." (Duplicate) to be able to customize your new Media Project from SideB
- Keep the same Mode as the one selected for Side A and Keep the same Resolution as the one selected for Side A.
- Select the Quality: Sandwich 78p6c80WSW160 SB compatible with SideB:

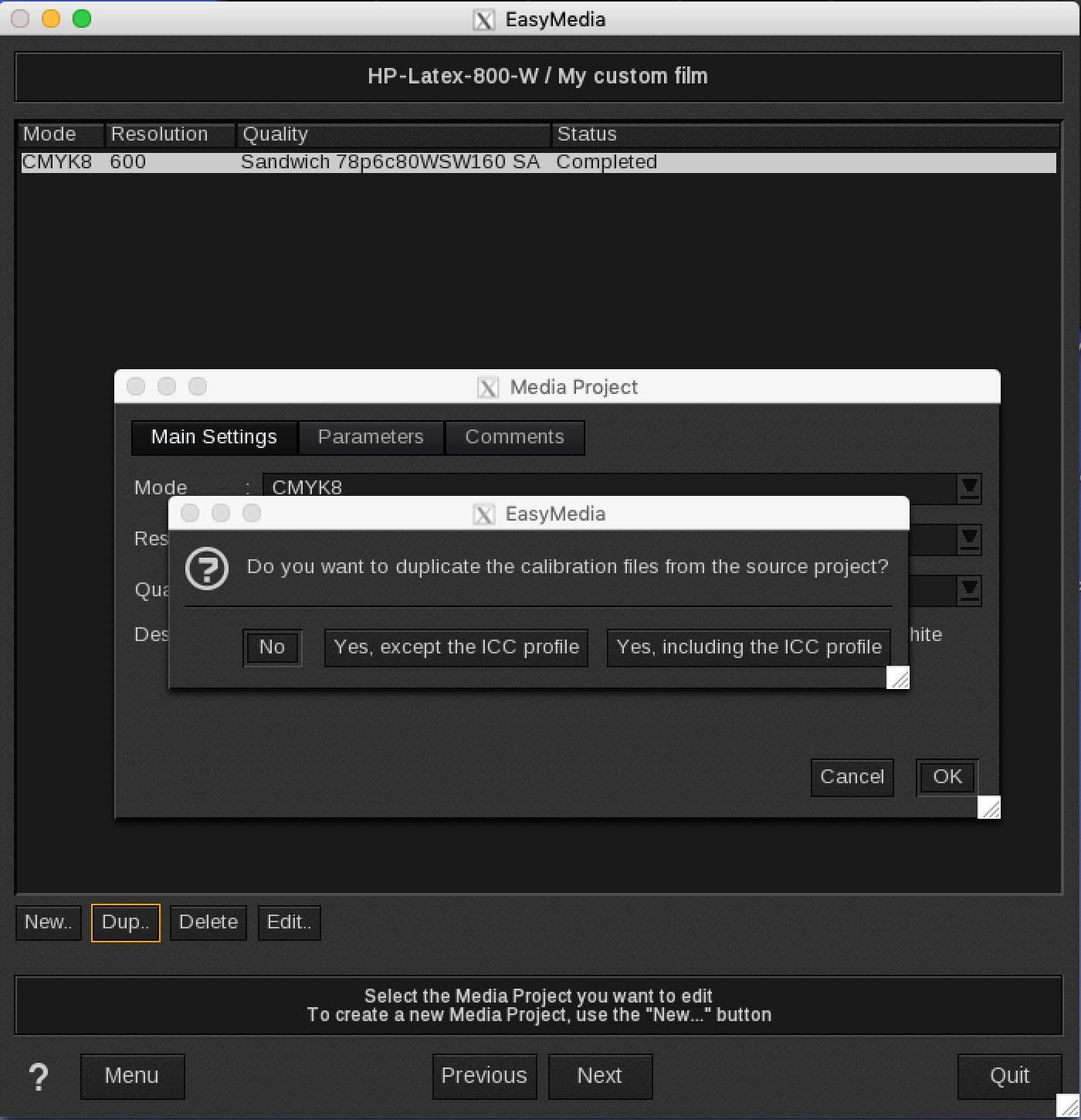

- Duplicate the calibration files from the source project "including the ICC profile":

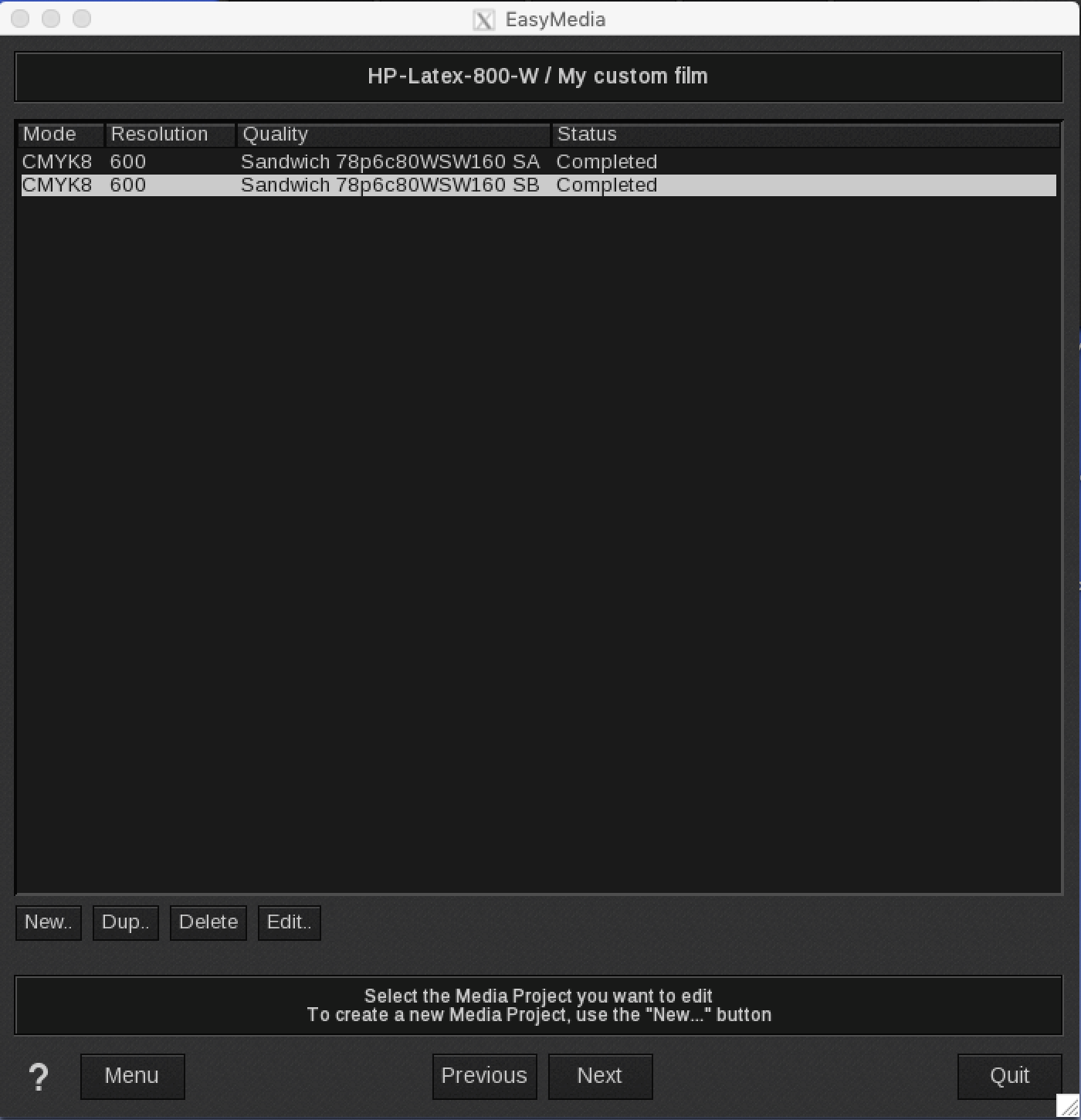

- Your Media projects are now "Completed" and ready to be used with the Sandwich quality:
