This article provides an overview of the VisualCut interface, used to manage print-and-cut jobs for compatible roll-to-roll cutters.
VisualCut receives cutting jobs generated by CalderaRIP and lets you review the job, configure cutter-specific settings, and send the cutting file to the cutter. It supports jobs containing one or more recognized cut contours.

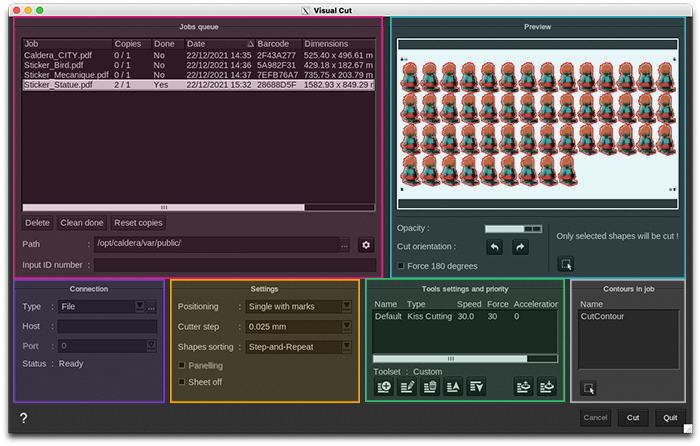

Interface overview
The VisualCut window is divided into the following six areas. Visit the dedicated articles for more information about each area:
The following actions are available at the bottom of the VisualCut window:
- Cancel: Cancels the current action. This option cannot stop a cut after the cutting data has been sent to the cutter and cutting has started.
- Cut: Sends the selected cutting job to the cutter.
- Quit: Closes the VisualCut window.
