"Jobs" was the main window that CostView showed at the opening. This window displayed all job information.

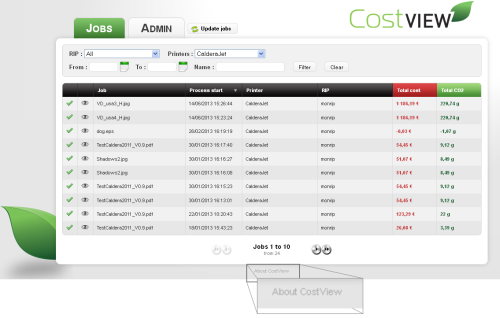

Jobs overview

The module section was divided into:

• Search.
• Jobs list. Jobs are filed in a tab. Its columns are the job’s name, date, and hour when the process started, the job’s printer, the job’s RIP, the total cost, and the total CO2 emission.
• There are also two other columns: one with an eye that displays the job’s image when you move your mouse over it. The other one is used to show you warnings. If this icon appears; it means that at least one cost or value was missing when the job has been added.
• Page numbering. This bloc informs you which jobs CostView is displaying and allows you to navigate between the pages.

Search

This feature allowed you to filter the jobs list:

Settings

The following parameters were available:

• RIP: choose one or all RIPs.
• Printers: choose one or all Printers (if a RIP is already chosen, the list is automatically reduced to this RIP’s printers).
• From: enter a date. Every job which has a date previous to it will not be displayed. You can use the calendar in order to help you.
• To: enter a date. Every job which has a date next to it will not be displayed. You can use the calendar in order to help you.

View of the calendar.

• Name: Enter a job name. In order to help you, auto-complete is on when you start to enter a string, and the list of every job that contains this string appears.

View of the auto-complete.

Actions

The following actions are available:

• Enter: start the filter by clicking on “Enter” on your keyboard.

Only available on the Name field.

• Filter: start the search with the current parameters.
• Clear: clear the searching parameters and display all jobs.

Jobs

Each line of the jobs list represents a job. To open it, just click on the line:

You see on the left part:

• Three tabs: Job information, Costs, and CO2.
• A thumbnail is a small reproduction of the job’s image. It’s the same image you can see when your mouse is over the job line eye.
• A Job sheet button to download a PDF file of the job’s sheet which summarizes all the job information contained in the three tabs.

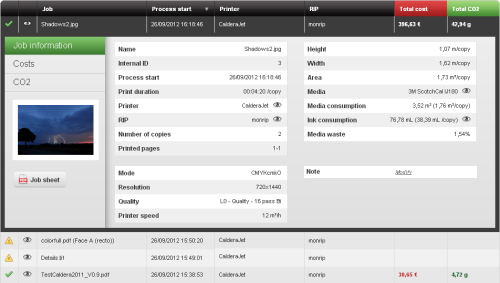

Job information

This tab displays Spooler information about the job. It is divided into four parts.

Overview:

• Name: job’s name.
• Internal ID: job’s ID for his related RIP.
• Process start: Date and time of the process start.
• Print duration: duration of the print.
• Printer: job’s related printer. You can see the printer’s information by clicking on the eye:

• RIP: job’s related RIP. You can see RIP’s information by clicking on the eye:

• Number of copies: number of copies printed.
• Printed pages: number of pages printed and attended.

Print specificity:

• Mode: ink mode for this print (CMYK for this example).
• Resolution: resolution for this print.
• Quality: quality (set in the RIP).
• Printer speed: speed of the printer in area per hour.

• Autonest: if the job is an Autonest, a line is added with the View button. It opens a pop-up that shows the images that have been used in the Autonest.

The first line indicates the nested job’s internal ID; the second line displays the nested job’s name and the third line shows the number of copies.

In our example:

2x p1 (2p) => the piece 1 has been printed twice = 2 pieces

1x p1 (1p) => the piece 1 has been printed once = 1 piece

Media and ink

• Height: height of one copy. Width: width of one copy. Area: area of one copy. Media: job’s job-related media. You can see the media’s information by clicking on the eye.

• Media consumption: area of the media used for the print. The global consumption is displayed and by copy.

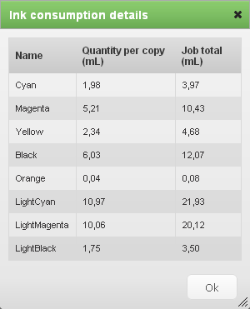

• Ink consumption: global ink is used for the print and consumption of one copy. You can see the distribution of the consumption between all inks by clicking on the eye.

• Media Waste: quantity of media wasted at the end of the print. It is given in percent.

Cut

These fields only appear when a cut was made for the job. Be careful, only Zund Cut Center cutters are supported by Cost View

• Cutter: name of the cutter. You can see the cutter’s information by clicking on the eye:

• Process start: cut time and date
• Cutting time: real cutting time
• Interruption time: total interruption duration
• Efficiency: cut efficiency in percentage
• Note: this field is empty by default. You can modify it by clicking on the Modify link. Enter your text on the field then click on Save to save the modification.

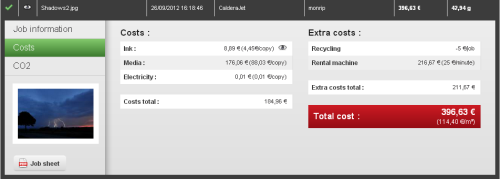

Costs

This tab was divided into three parts: Costs, Extra Costs and Total cost.

It shows all costs that are used to calculate the Total cost of the job:

Display without the cut	Display with the cut

• Ink: ink price in currency and currency per copy. You can see the repartition of the price between all inks by clicking on the eye.

• Media: media price in currency and currency per copy.
• Electricity: electricity price in currency.
• Cutter: cutter price in the currency according to its hourly operating cost.
• Cutter tools: the price of the cut tool
• Costs total: cost subtotal for this section.
• Extra Costs: They can be different for jobs that are added at different times. Their costs can be expressed in currency per job, per area, per copy, per time… If the extra cost doesn’t have any price cost, it won’t appear in this list (it will only be displayed in the CO2 cost part):

• Extra costs total: cost subtotal for this section.
• Total cost: You can see the total cost expressed in currency and currency per area for information:

CO2

This tab was divided into three parts: CO2, Extra CO2, and Total CO2. It showed all costs that were used to calculate the Total CO2 of the job.

There is no C02 calculation concerning the cut part.

CO2 :

• Ink: ink CO2 emission in gram and gram per copy. You can see the distribution of the emission between all inks by clicking on the eye.

• Media: media CO2 emission in gram and gram per copy.
• Electricity: electricity CO2 emission in gram.
• CO2: CO2 subtotal for this section.
• Extra CO2: Here you have the extra costs. They can be different for jobs that are added at different times. Their costs can be expressed in grams, per job, per area, per copy, per time… If the extra cost doesn’t have any CO2 emission, it won’t appear in this list (it will only be displayed in the price cost part):

• Extra CO2 total: CO2 subtotal for this section.
• Total CO2: You see the total CO2 emission expressed in gram and gram per area for information.

Update jobs

If you remove your jobs from the Spooler before updating them in CostView, they will be lost.

To update the jobs list and get new jobs:

1- Click on Update Jobs. This button is available at any time and from any part of CostView.

2- A timer informs you that the system is checking about new jobs. Then, if some fields aren’t filled like ink costs, and if you have chosen to be notified in this case, you will see an advertisement pop-up:

Here you have an example of some parameters that are missing. For example, if all the resolution data are specified, the “Some resolution data are not specified (Fill them out in Printer administration)” line will not be shown.

If you click on Yes, the jobs will be updated, if you click on No, you’ll return to the precedent page without any add.

3- When the update is ended, a new pop-up informs you how many jobs have been added.

4- You can then see new jobs in the jobs list.
