This feature is available since CalderaRIP V14.1 for CalderaCare subscribers.
Extended settings have been added to our TileOrder feature to ease the production process of large-format projects such as vehicle covering.

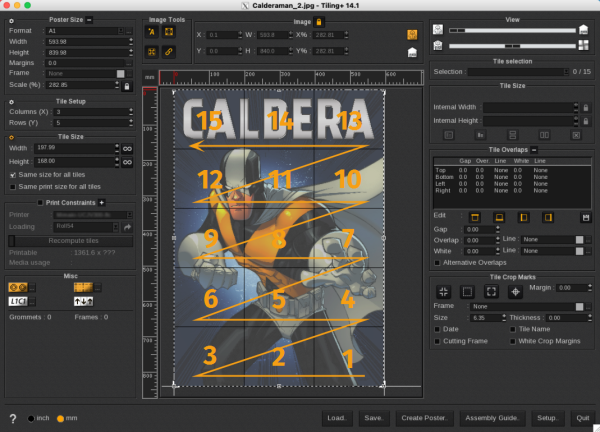

When creating a poster within the Tiling+ module, you can select Line by line, bottom to top, or right to left, to have more flexibility and save valuable time on-site.
Workflow
The poster creation allows you to create, for each tile, images that are automatically loaded into the ImageBar and then can be printed.
1- By clicking the Create Poster… button, you open the following window to choose the poster creation conditions:

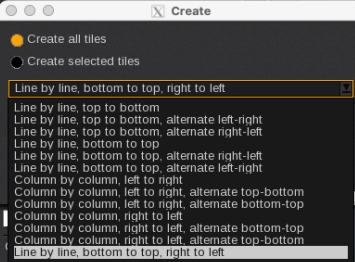

2- You can now select Line by line, bottom to top, right to left:
3- When you click Create new poster, a thumbnail of the whole poster is created in the ImageBar.
Info
The plus symbol (+) on the top right corner indicates that the thumbnail can be opened to display the tiles.
4- Finally, print the poster with the Print Module Interface.

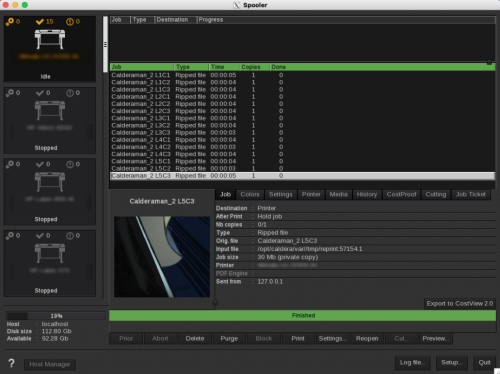

5- (Optional) Once done, go to the Spooler. You will notice that your tiles are being printed Line by line, bottom to top, right to left:
