This article provides guidance on using JDF (Job Definition Format) to send annotations to CalderaRIP. Properly formatted JDF can enhance your printing processes by including essential information and variables.
Sample JDF to Annotations.fdf

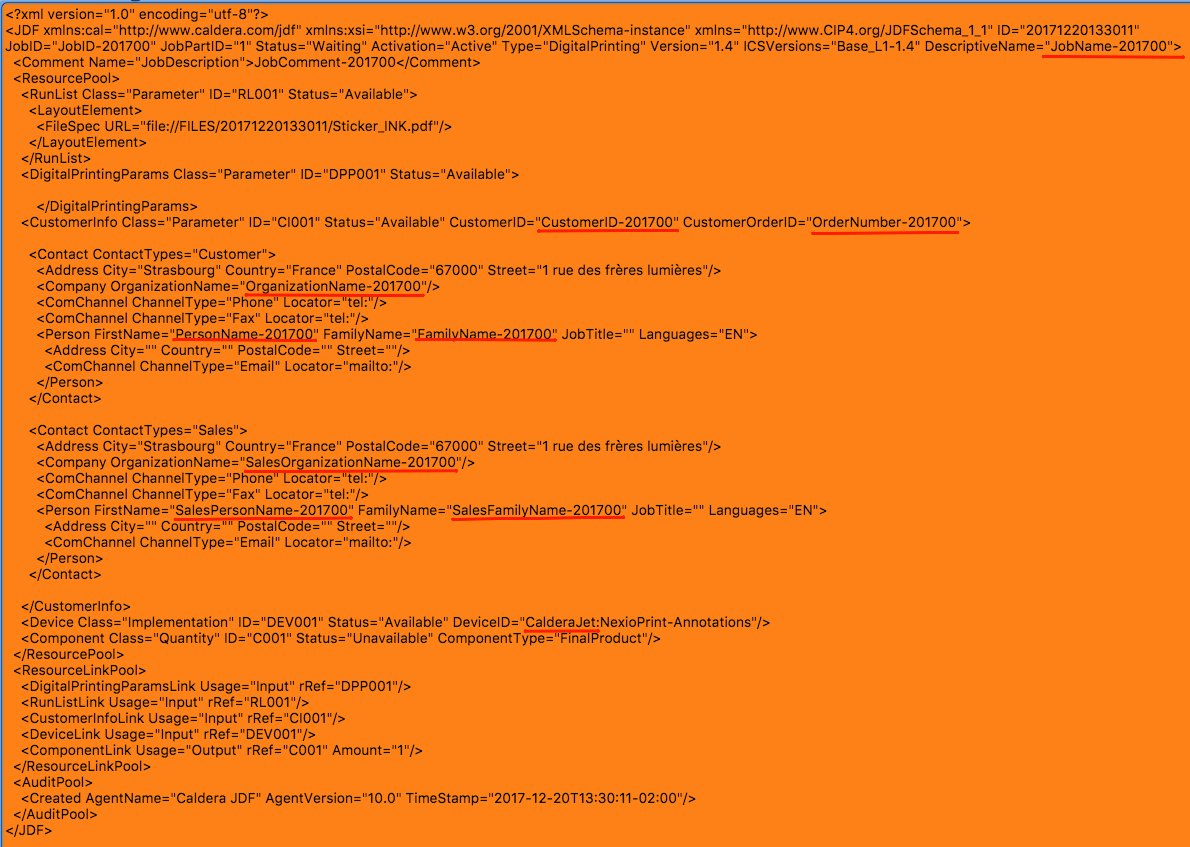

A sample JDF file is attached for reference. This file demonstrates how to structure your JDF to include annotations.
Tags to Include in JDF
When sending a JDF, you can include various tags that will be recognized by CalderaRIP. Key tags to consider are:
Considerations

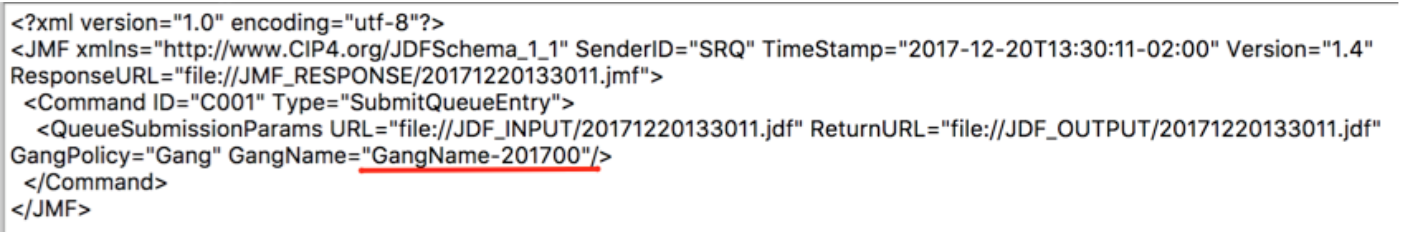

The GangName field must be sent in the JMF like this:
CalderaRIP's Annotations
CalderaRIP's Annotations will print out based on the information provided in the JDF. For example:
Print output

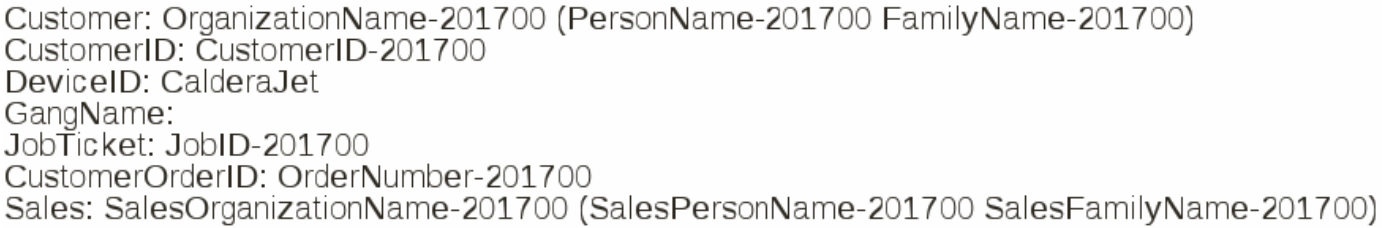

With the above annotations, the printout will appear as follows:
Considerations

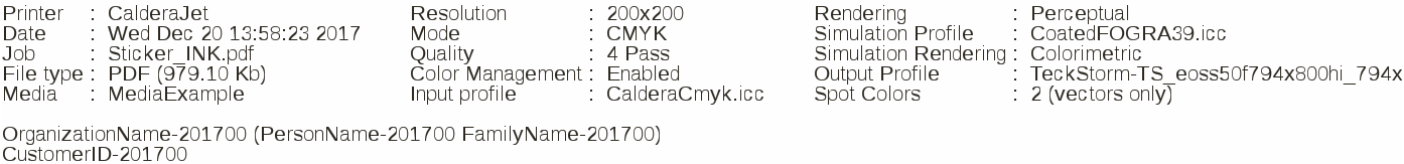

If there is no text written in the Annotations field, only the variables (@...) from the JDF will be present. The printout will look like this:
JDF Information in CalderaRIP

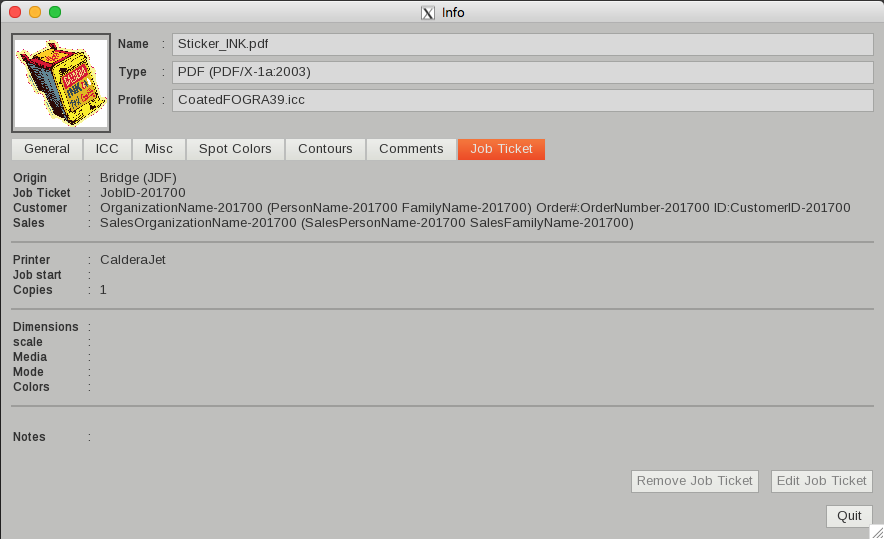

JDF information is also sent to CalderaRIP and can be found in the Info module:

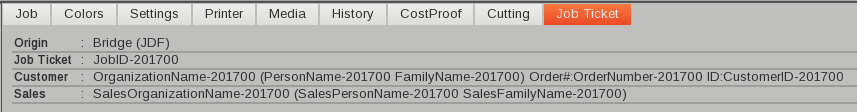

Additionally, JDF information is available in the Spooler module:
