Starting from version 13, CalderaRIP supports the import of CxF/4 Spot Color Libraries, allowing for greater accuracy in matching brand colors. This feature enables users to select multiple illuminants and observers for precise color representation.
Import a CxF/4 File with CMYK Data
To import a CxF/4 file containing CMYK data, follow these steps:

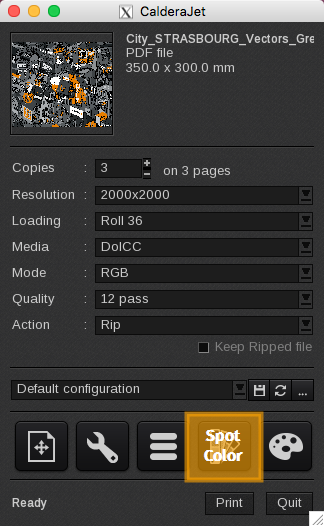

- Open the Spot Colors window by clicking on the swatch icon in the Print Module:
Info
For custom spot color mapping, use PDF format. Older file formats, such as EPS or PS, have limitations.

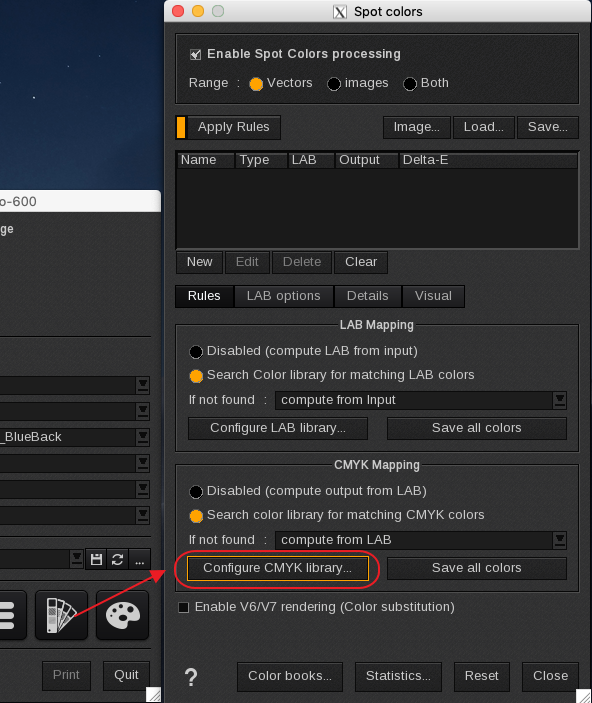

- Click on the "Configure CMYK Library..." button:

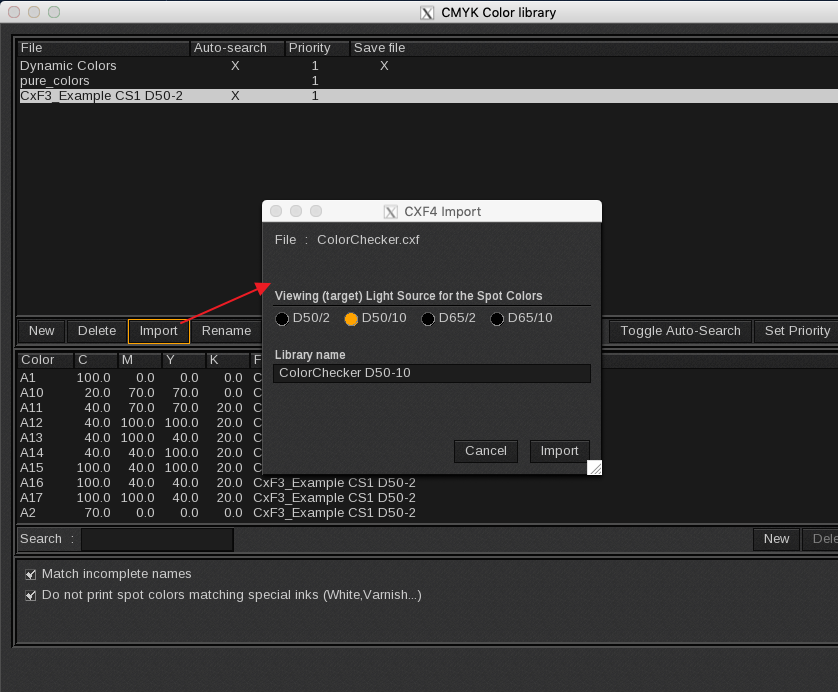

- Then click on the “Import” button to choose the CxF file. Several options will be available for import customization (read on for more information). Here are some examples:
About measuring and viewing light sources

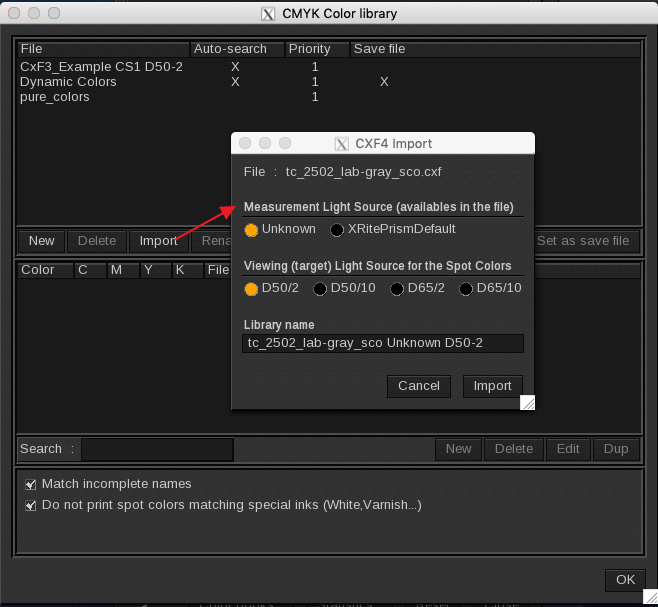

When importing spectral libraries, you can choose the illumination source used for spectral measurements, such as “M0,” “M1,” “M2,” or “M3.”
Additionally, you can select the visualization source (target source). In graphic arts, D50/2 is typically used, while D65/10 is common in textile applications.
