Spot inks
The following Spot Ink information is only for IPFPro 2000, IPFPro 4000, and IPFPro 6000 users, as these devices support the special ink called "Chromatic Optimizer"
Halftone mode
Using halftones modes, this special ink is configured thanks to the Chroma Optimizer tab.
Info
The following setup is not compatible with contones modes.
- Click on the first icon button of the Print module main window:

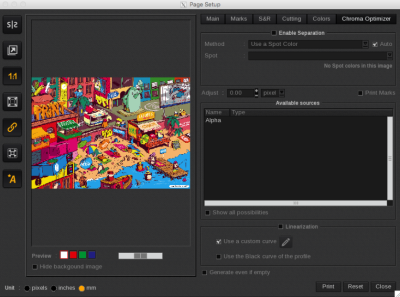

- The Page Setup appears and you are able to select the Chroma Optimizer tab on the right:
Contone mode
In Contone modes, the Clear coating field allows you to configure the ink's options. Clear coating is ignored for halftone modes.
- Open EasyMedia
- Select your printer and click Next

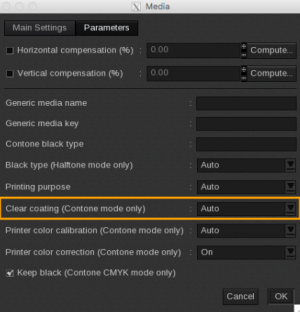

- Edit your media parameters by clicking on Edit
Media management
EasyMedia synchronization
Info
EasyMedia is named ProfileExpert in the TextilePro interface.
The contone black type field is the same as the contone black type in the media settings.
Before creating an EasyMedia project you must configure the network address of the printer in the server configuration.

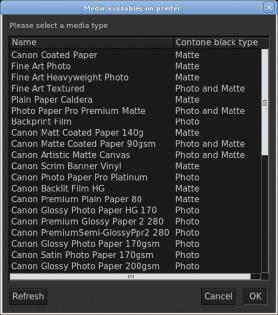

You should then have access to all media stored on the printer when creating a new EasyMedia media project.

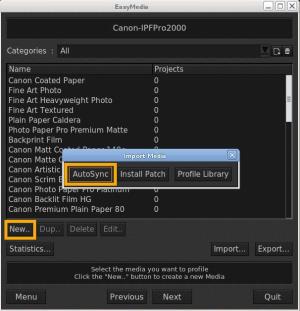

You can retrieve all papers stored on the printer with the AutoSync button. You can also create specific projects with the New button.
|
|
|
|
|
EasyMedia allows you to use the AutoSync button or the New button. |
|
The Media window appears after clicking the New button |
