Supported model

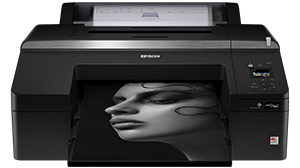

- Large Format Printer for photography
- Printing technology:
- PrecisionCore TFP printhead/Epson Variable-Sized Droplet Technology
- Maximum print size:
- 203mm (8") - 432mm (17"): Roll paper; 203mm (8”) - 432mm (17”): Cut Sheet
Drivers
- Epson-SureColor-P5000
- Epson-SureColor-P5000-managed
Info
- Both drivers can be used with the same printer
- The "managed" driver was developed in V14.1 to allow users to print faster in sheet mode. However, this driver has the limitation of not supporting the reprinting of jobs neither from the printer nor from the RIP so we recommend using it only if your production requires it.
- The "managed" driver does not replace the first driver, which means that it also requires importing the P5000 profiles into the driver and configuring them correctly.
Driver History
-
CalderaRIP V17.1

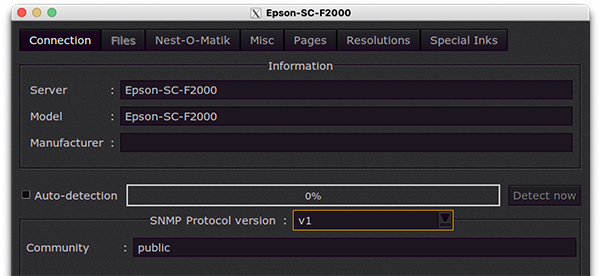

- These drivers now automatically select the required version of the protocol. If needed, it is also possible to change the SNMP version manually thanks to a new field added to the connection tab of ServerAdmin:
Info
Note that if you configure a device to use SNMP V3, you will not be able to access it using SNMP V1.
- These drivers now automatically select the required version of the protocol. If needed, it is also possible to change the SNMP version manually thanks to a new field added to the connection tab of ServerAdmin:
-
CalderaRIP V16.2
- Revision A: Fix possible black edges on borderless print
-
CalderaRIP V15.0
- Revision A: Printing two copies of the same job was sent to the error area while it correctly printed the two requested images
-
CalderaRIP V14.1
- Epson-SureColor-P5000-managed: A new driver now allows faster printing in sheet mode.
-
CalderaRIP V13.1
- Rev B: The bottom margin sheet can now be set to a minimal value of 3 mm
- Rev A: Margins top and bottom follow more closely the intended output, you may still experience some differences related to firmware settings, and job settings but it's out of reach of the driver's actions
-
CalderaRIP V12.1
- Rev A: Fix to bring back compatibility for macOS 10.11 (El Capitan), as the driver was not launching on v12.1
-
CalderaRIP V12.0
- Rev A: Fix borderless print top/bottom. Also, More tolerant for checking between media width and job width
-
CalderaRIP V11.1
- Reb B: Printer supports AutoLoading
- Rev A: Change the appearance when using Epson Precision Dot RGB and Epson Precision Dot RGB B&W modes to indicate the presence of a profile (similar to CMYK mode behavior)
-
CalderaRIP V11.0
- Rev B: Epson Precision Dot library update
- Rev A: Small corrections in Status. Fix potential problems in “Rip then print”. Fix duplicate “Roll” names
- Epson SureColor P5000 is supported since this version
Print modes
- CMYK, CMYKcm, CMYKcmk, CMYKk
- CMYKO, CMYKcmkO
- CMYKOG, CMYKcmkOG
- CMYKcmkOGV
- Epson Precision Dot RGB, Epson Precision Dot B&W
Possible error messages
Unsupported Resolution-Quality or Black Cartridge
The selected resolution-quality pairs may not be compatible with the chosen Reference Media. If you select a non-compatible pair, a pop-up will appear, listing all the compatible Reference Media options available for your media:

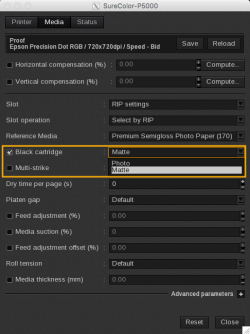

Similarly, the resolution-quality pair and the Reference Media are linked to the Black cartridge in use. If you select a non-compatible Black cartridge, a pop-up will appear to notify you of the incompatibility:
Navigate to the Printer Settings and change the Black cartridge. You can leave it unselected if you prefer CalderaRIP to automatically select the appropriate cartridge for you:
