Fujifilm Acuity LED 3200R - Printer Settings

Updated November 20, 2025 09:26

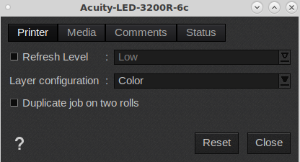

Printer settings

Refresh level: frequency of head quick cleanings during print. You can choose among: Low, Normal, High and Very High or disabled it to use default value from printer panel.

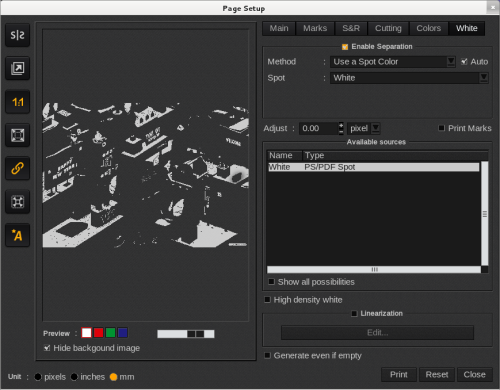

Layer configuration(6c model only): sets the layer configuration to be printed regarding multilayer possibilities and White ink. Be careful, if a layer configuration using White ink is selected, you still have to activate and set the White ink separation in the White tab of the Print module Page Setup window. You can choose among these configurations: Color, White, White over Color, Color over White and Color-White-Color.

Duplicate job on two rolls: duplicates the print on the second roll to print twice the job at the same time. Be aware of the following when using this option:

Both rolls should be the same size and media type.
The detected sizes are shown in the status tab. Note these are the printable widths reported by the device, that is the non-printable margin is not included.
The job must not be larger than the smallest detected size or the print will fail.

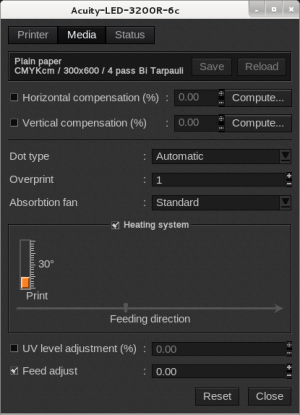

Information: at the top of the window, you are able to see information about your media. There you have access to two actions:

Save: when you click on this button, the current media settings are saved to the selected media profile (printer, media, resolution, mode) so there will be applied for any new job using the same print configuration. If you don't save, the changes you made are only applied to the current job.
Reload: will revert back to default as set during profiling or the last saved changes.

Horizontal compensation (%): we recommend not to modify this. Any deviation is likely to be mechanical on the printer's side.
Vertical compensation (%): this can be useful if you detect an increase or decrease in the length due to heating or media tension which is common when printing on vinyl or textiles for example. To calculate the compensation, click Compute and follow the software’s instructions.

Dot type: option that allow the user to select either a variable dot size (Automatic) or any fixed dot size (Large, Medium or Small).
Overprint: multiply the amount of ink by the selected factor. Type the number wanted (between 1 and 9) or use the + and - buttons.
Absorption fan: Here, you can select one of the following option to set the absorption strength: Weak, Standard or Strong.
Heating system: You can adjust the temperature of Print (in Celsius degrees) by clicking inside the thermometer.
UV level adjustment (%): slightly adjusts UV curing power. By setting a negative value, UV levels will be decreased, and setting a positive value will increase UV levels.
Feed adjust: You can enable or disable this function by checking or unchecking the box. Type the number wanted or use the + and - buttons.

Inks: information about Inks levels
Heaters: temperature level of the Print.
Media: information about the media loaded on the printer
Misc: complementary info about the printer (model, serial number, firmware version)
Refresh: button to refresh the tab.
