KIP 800 and 900 Series - Overview

Supported Models

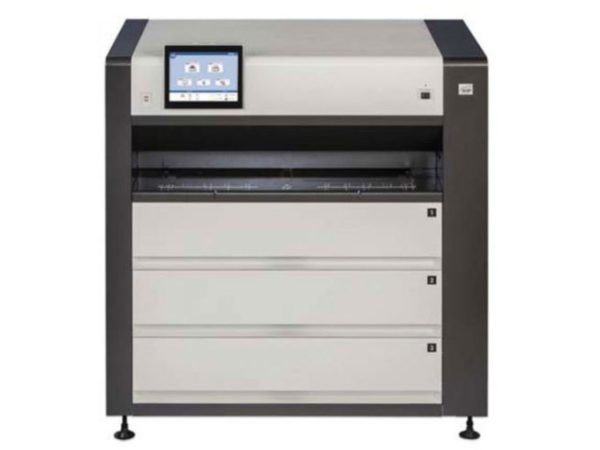

KIP 800 and 900 Series

• Color and B&W high production print system
• Media rolls from 11” to 36” / 297 mm to 914 mm wide

Drivers

• Kip-8x0 (With or without profiles)
• Kip-940 (With or without profiles)

Driver History

• CalderaRIP V11:
  • Revision B:
    • Introduced 1-bit print modes at resolutions of 300, 300x600, and 600 dpi with 90 LPI and 120 LPI. Additionally, new profiles have been added, and the media type can now be manually edited.
  • Revision A:
    • Added raster data compression.
    • Jobs are now generated with white margins on all sides of the image (top, left, bottom, and right) based on the selected loading, ensuring correct positioning and roll size selection. You can disable margin generation by selecting "Don't generate white margins" in the printer-specific options.
    • Resolved an issue where random jobs were locked at 100% in the Spooler.
• CalderaRIP V10.2:
  • Supported since this version.

Connection

	USB
	File
	Network
	Serial

Limitations

• 800 Series: Latest compatible firmware version was 2.3
• These drivers do not support CostProof or CostView [Deprecated].
• Only compatible with contone printing.
