This article details the supported inks for the MS Impres 3180, 4180 and 4320. It also provides instructions for connecting the MS Qwizard touchscreen control panel to the printer, including necessary settings adjustments and requirements for administrative access.
Inks
MS Impres 3180
The Impres 3180 supports DySubli inks for transfer sublimation printing.
MS Impres 4180
The Impres 4180 also supports DySubli inks for transfer sublimation printing.
MS Impres 4320
The Impres 4320 supports both DySubli inks for transfer sublimation printing and Dybrid inks for direct and transfer sublimation printing.
MS Qwizard
The MS Qwizard is a touchscreen control panel. For detailed information, refer to the MS Qwizard documentation.
MS Impres Connection
During installation, access the Print panel to configure the MS Qwizard connection:

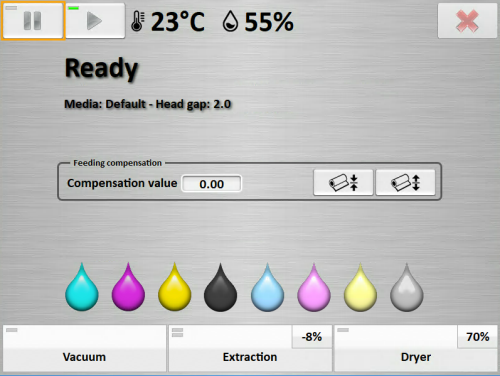

- Click the "Pause" button:

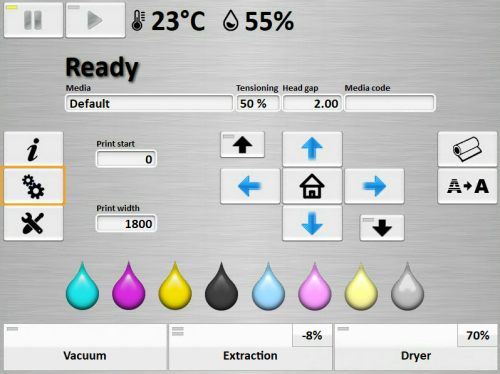

- Once the local page appears, new icons will be available on the left. Click the Settings icon (second icon):
- In the new interface, click the computer icon to access the machine interface:

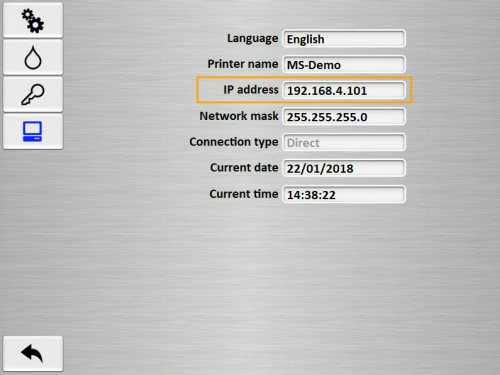

- In the Connection type field, replace "Direct" with "Qwizard." Administrator privileges are required for this change. Refer to the MS Manual for further details:
- Lastly, fill in the printer's IP address in the same interface:
