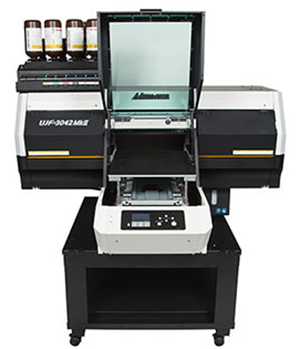

- High-performance, state-of-the-art, small-format LED UV printers
- Models included: UJF-3042 MkII, UJF-3042 MkII EX, and UJF-6042 MkII
- Official website
Drivers
- Mimaki-UJF3042-MkII
- Mimaki-UJF6042-MkII
Driver History
-
CalderaRIP V18.1:
- Mimaki-UJF6042-MkII (Revision A): Fixed a bug that sometimes caused the driver to either not rasterize the print-ready file or swap matte and gloss varnish when processing jobs with a varnish layer.
-
CalderaRIP V17.3
- Mimaki-UJF6042-MkII: Fixed the "Can't open binary config [...]: Too many open files" error that appeared when the printer was offline for a long time.
-
CalderaRIP V11.2:
- Supported since Version 11.2
Connection
| USB | |
| File | |
| Network | |
| Serial |
We recommend that you read our guide: Best practices for the USB communication of Mimaki devices.
Ethernet connection

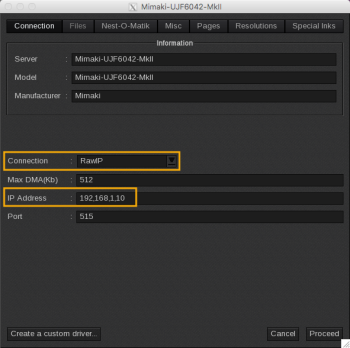

These models also support Ethernet connection for printing. To be able to use them with this type of connection, please select RAWIP in server administration, and enter the IP address (modifying the port will not affect the communication since the communication port used is fixed in the driver for this model).
To work, the whole network configuration must be gigabit-compatible. For this, please check the following points :
- Make sure that the RIP station network card supports a gigabit connection.
- If there are one or more switches or routers between the RIP station and the Printer, all must support a gigabit connection
- Make sure that all RJ45 cables between the RIP station and the Printer (including cable linked to the switch) are of category 6
- After changing the network setting on the printer panel, you should reboot the printer for the settings to be effective.
In case of trouble, please try to connect the RIP station directly with the printer using a category 6 RJ45 cable, and setting a fixed IP address. If it works with a direct connection, there might be an incompatible cable or hardware in your network, or maybe a defective port on your switch.
