Issue:
When sending a 5-layer file the following errors could occur:
- Send Data error: RPC connection failed.
- Driver exit with error
- Unable to allocate shared memory for multilayer. This error appears only after some other erros , after restarting the message disappear.
The job is blocked on the spooler with message "waiting" and nothing happens in the printer.
Problem:
Unable to allocate shared memory for multilayer- Not enough memory
Solution 1:
Increase memory for multilayer (applies to a Linux and a MacOS based installation prior to Yosemite)

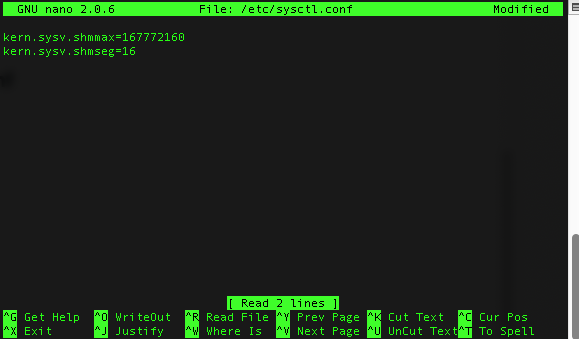

- Go to the /etc folder and create a txt file named sysctl.conf
- Add the following lines:
-
- kern.sysv.shmmax=167772160
- kern.sysv.shmseg=16
3. Reboot the PC
Solution 2: MacOS Yosemite and newer.
Since /etc/sysctl.conf is no longer parsed at boot with newer MacOS versions we will be using a plist file with a LaunchDaemon as an alternative.
To apply the changes, run the attached package installer (sysctl_installer.pkg) by right-clicking and selecting
"Open" (required due to the package being unsigned).
The installer updates the following settings:
- kern.sysv.shmmax: 167772160
- kern.sysv.shmseg: 16
A reboot is required for these changes to take effect, as they are loaded during system startup.
Optional:
To check if these settings were properly applied:
Open Terminal and enter:
sysctl kern.sysv.shmmax kern.sysv.shmseg
