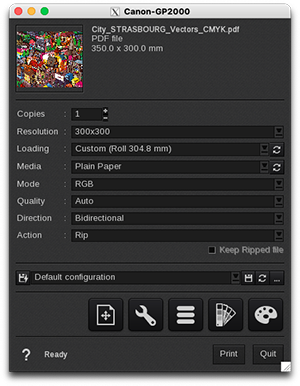

Print module interface
Resolution
The Canon imagePROGRAF Pro supports the following graphic resolutions:
| Contone mode | Halftone mode | |
| 300 x 300 dpi | ✔ | |
| 600 x 600 dpi | ✔ | |
| 1200 x 1200 dpi | ✔ |
The raster data sent to the printer is always printed at 2400 x 1200 dpi.
Loading
Models that support 1 roll and sheets:
- Canon IPF GP200: 24"
- Canon IPF GP300: 36"
Models that support 2 rolls and sheets:
- Canon IPF GP2000: 24"
- Canon IPF GP4000: 44"
Modes
| GP200 | GP300 | GP2000 | GP4000 | |
| RGB | ✔ | ✔ | ✔ | ✔ |
| RGBFp | ✔ | ✔ | ✔ | ✔ |
| CMYK | ✔ | ✔ | ✔ | ✔ |
| CMYK8 | ✔ | ✔ | ✔ | ✔ |
| CMYKFp8 | ✔ | ✔ | ✔ | ✔ |
| CMYKk | ✔ | ✔ | ||
| CMYKkRGVO | ✔ | ✔ |
RGB, RGBFp, CMYK8, and CMYKFp8 are contone modes.
Qualities
The Canon IPF GP driver supports the following Qualities:
- Auto
- Draft
- Normal
- High
The number of printing passes is chosen in accordance with the selected media and quality. When Auto is selected the printer chooses the recommended quality for the currently selected paper type.
Directions
For any print, you can choose to use Unidirectional printing or Bidirectional directly in the Print module main interface.
EasySelect
EasySelect (the capability for CalderaRIP to use the size and type of loaded media in the printer) is available for this printer series. More info
