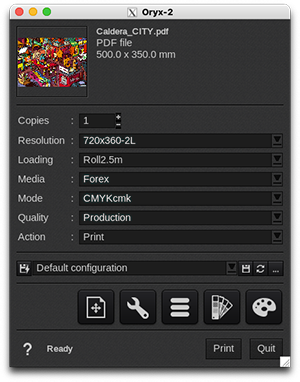

Print module interface
The ? button is a HelpLinks. It will give you help about the Print module.
Modes
The 3 models support the following modes:
- CMYK
- CMYKk
- CMYKcm
- CMYKcmk
- CMYKO
- CMYKOGV
The printer supports Inkset management in EasyMedia*, please see the article on our Helpdesk.
*EasyMedia is named ProfileExpert in the TextilePro interface.
By default, 4 Special Inks are linked to the printer:
- Primer
- Varnish
- White Underlay
- White Overlay
Please take a look at the Spot Inks section to get more information about these.
Loading
- Roll
- Sheet
- Custom (How to use CustomLoading?)
Resolutions
| Impala-2 | Nyala-2 | Oryx-2 | Impala-2-i | Nyala-2-i | |
|---|---|---|---|---|---|
|
450x720-2L |
✔ | ✔ | ✔ | ||
|
540x720-2L |
✔ | ✔ | ✔ | ||
| 720x360-2L | ✔ | ✔ | ✔ | ||
| 720x720-2L | ✔ | ✔ | ✔ | ✔ | ✔ |
| 900x720-2L | ✔ | ✔ | ✔ | ✔ | ✔ |
|
900x1080-2L |
✔ | ✔ | ✔ | ✔ | ✔ |
|
1080x720-2L |
✔ | ✔ | ✔ | ✔ | ✔ |
|
1080x360-2L |
✔ | ✔ | |||
|
1080x1080-2L |
✔ | ✔ | ✔ | ✔ | ✔ |
2L = 2 Levels (binary printing as opposed to grayscale printing)
Qualities
Custom Qualities can be defined in Amber controller by the operator.
|
450x720-2L
|
540x720-2L
|
720x360-2L
|
720x720-2L
|
|
900x720-2L
|
900x1080-2L
|
1080x720-2L
|
1080x360-2L
|
|
1080x1080-2L
|
|
|
FA = Fine Art
There is a difference between Qualities and Materials. Qualities are predefined settings of passes. Those are used in combination with Materials. Materials are used as a profiled material. All the custom Qualities and Materials can be defined in Amber controller by the Operator.
Actions
As they are printers with controller, they support only two actions:
- Nest
You cannot Rip or Rip then Print or Keep the ripped file with these printers.
