Some cut files don't appear on Zund Cut Center

Updated

Issue

When running a Print&Cut workflow with a Zund cutter configured on GrandCut, sometimes it can happen that some files don't appear on the Zund Cut Center.



Problem

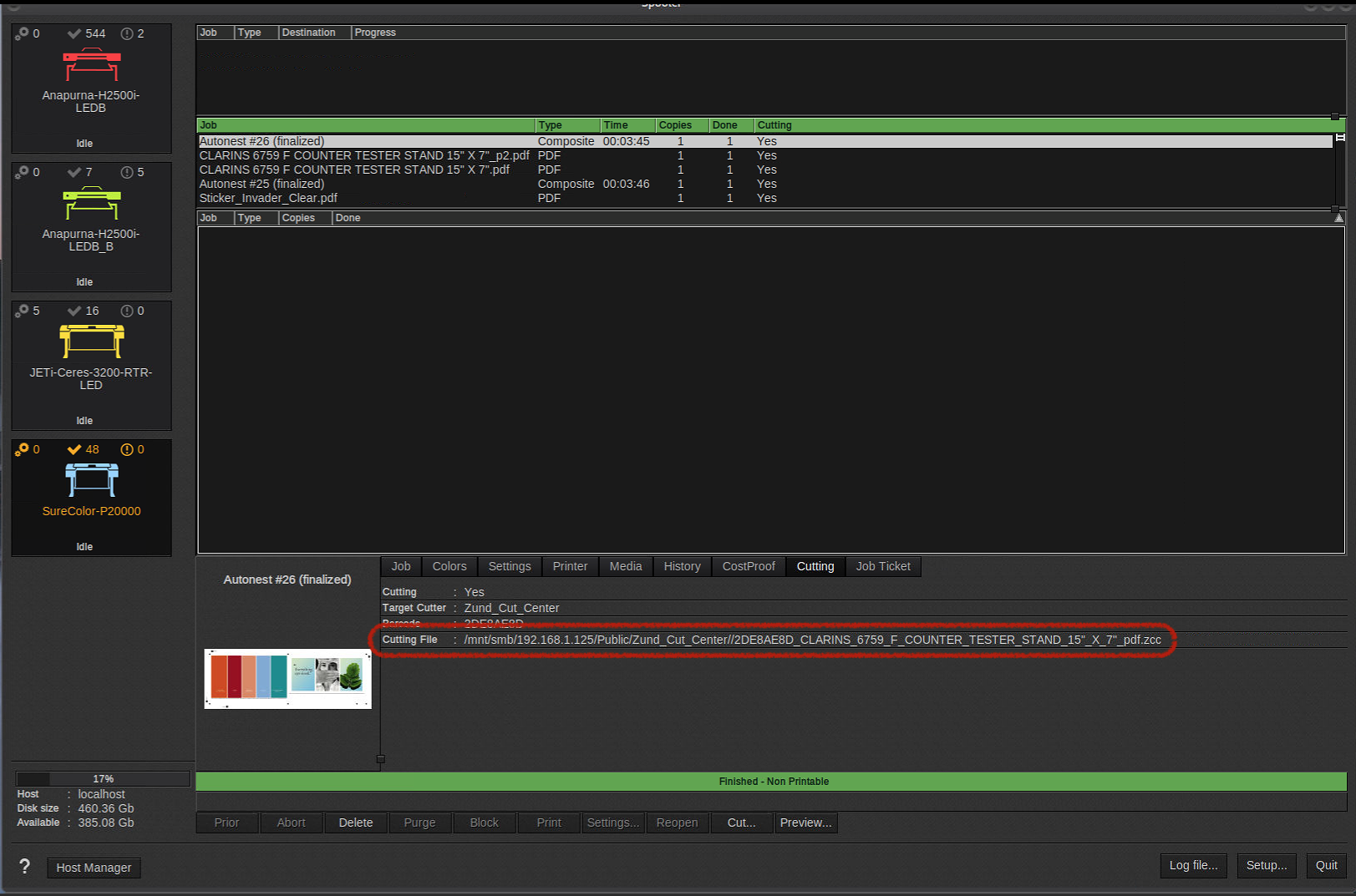

This may occur because the layout name is just too complex to be written on the Windows file server:




Solution

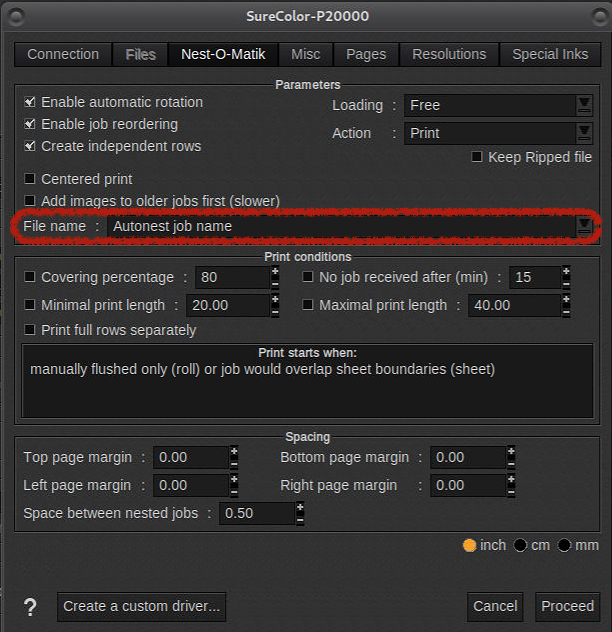

1. On Nest-O-Matik, configure the name of the layout to be the name of the Autonest:

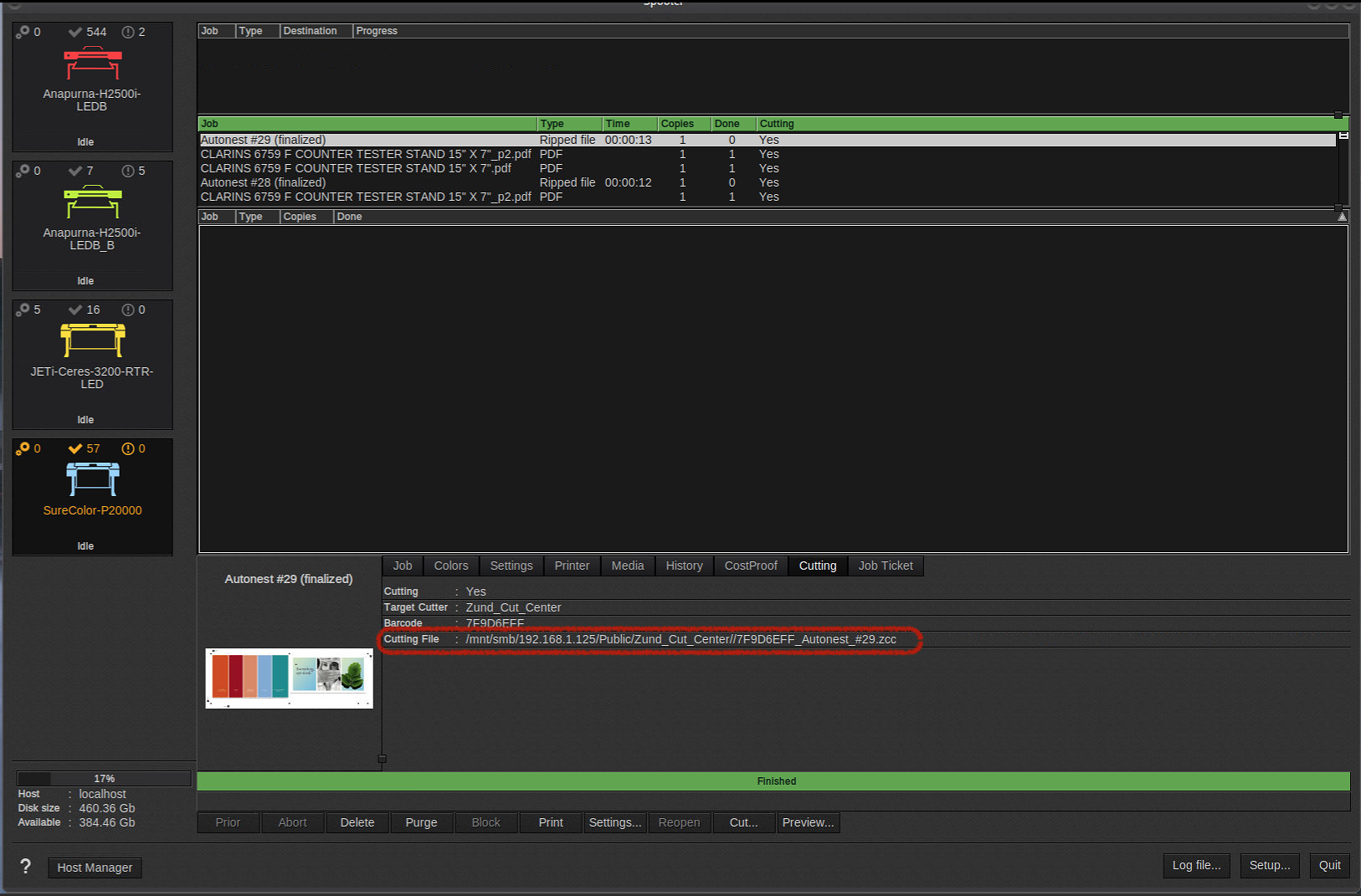

2. This will simplify the layout name significantly:

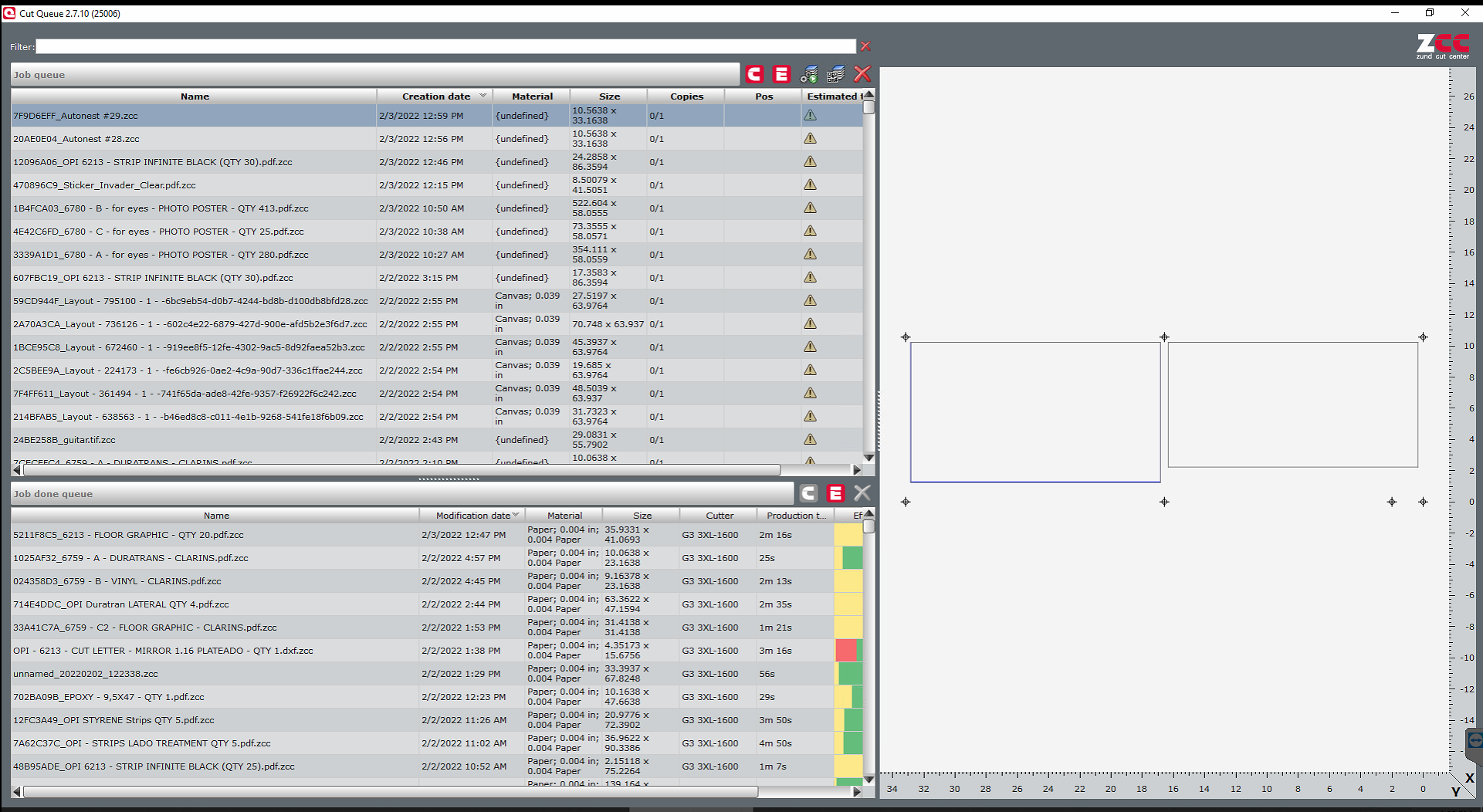

3. The job now appears on the Zund Control Center:
