Supported model

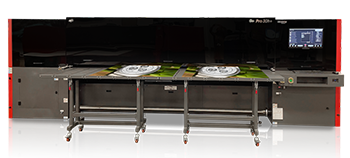

- Hybrid Flatbed LED Printer
- Print width: 126 in
- Colors: CMYK + 4 white
Driver
- EFI-Pro-30H+
Driver history
-
CalderaRIP V19:
- Supported since this version
Resolution and Smoothing
|
|
Each resolution has a "4L" at the end, which refers to four levels of color.
When combined with a given Smoothing option, the resolution acts as a pass multiplier compared to the resolution's default passes. Here are some examples:
| Resolution | Smoothing | Real Passes |
| 300x600 | None | 1 |
| 300x600 | Light | 2 |
| 300x600 | Medium | 3 |
| 300x600 | Heavy | 4 |
| 600x600 | None | 2 |
| 600x600 | Light | 4 |
| 600x600 | Medium | 6 |
| 600x600 | Heavy | 8 |
| 900x600 | None | 3 |
| 900x600 | Light | 6 |
| 900x600 | Medium | 9 |
| 900x600 | Heavy | 12 |
| 600x1200 | None | 4 |
| 600x1200 | Light | 8 |
| 600x1200 | Medium | 12 |
| 600x1200 | Heavy | 16 |
Mode
- CMYK

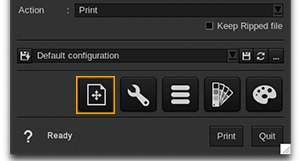

This driver can use white and varnish as Spot Inks. To configure them, you need to go to the Page Setup module:
Then, open the corresponding tab, click Enable separation, and select the Method corresponding to your production.
Also, multilayer printing options can be found in the Printer Settings > Printer tab.
Connection
| USB | |
| File | |
| Network | |
| Serial |
