This article outlines the concepts of Under Color Removal (UCR) and Gray Component Replacement (GCR) and explains how they affect color separation in printing workflows using CalderaRIP.
Understanding how these techniques work is useful when preparing artwork in design applications like Adobe Photoshop or Illustrator, and when profiling in EasyMedia. Also, proper management of UCR and GCR helps improve print stability, optimize ink usage, and maintain consistent gray balance across different media and production runs.
What Is Under Color Removal (UCR)
Under Color Removal (UCR) is a color separation method that reduces the amount of cyan, magenta, and yellow (CMY) ink used to create neutral tones in dark areas of an image, replacing part of that mixture with black (K) ink. UCR primarily affects neutral shadows or dark gray areas.
Typical purposes of UCR include:
- Reducing total ink in heavy shadow regions
- Improving drying and adhesion on certain media
- Minimizing issues such as oversaturation or bleeding
Historically, UCR was widely used in print workflows to manage ink coverage in dark areas. It performed well on older low-resolution printers (typically with 30 pL or larger drop sizes), but because it primarily targets shadow neutrals, it offers limited control over the broader tonal range.
What Is Gray Component Replacement (GCR)

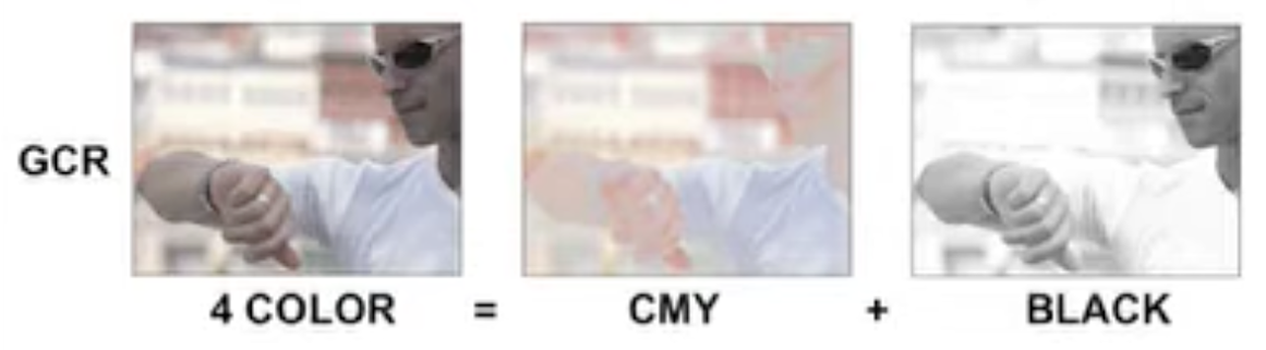

Gray Component Replacement (GCR) is a more flexible color separation technique. Instead of applying only to shadows, GCR replaces the neutral (gray) component present in CMY mixtures with black ink across a broader tonal range, including highlights, midtones, and shadows.
For example, when cyan, magenta, and yellow combine to produce a gray component inside a color, that portion can be replaced with black while preserving the intended color appearance.
Key benefits of GCR include:
- Improved neutral stability and gray balance
- Reduced ink consumption
- More consistent output across printers and media
- Lower sensitivity to ink and device variations
Because of these advantages, GCR is the primary strategy used in modern digital printing workflows, particularly with RIP-managed color conversions.
Key Differences Between UCR and GCR
| UCR | GCR | |
|---|---|---|
| Areas affected | Neutral dark areas | Neutral component across most tones |
| Tonal range | Mostly shadows | Highlights, midtones, and shadows |
| Ink reduction | Limited to dark neutrals | Applied throughout the image |
| Typical usage | Older separation workflows | Modern RIP profiling |
Considerations When Preparing Files in Photoshop or Illustrator
When preparing artwork in applications such as Photoshop or Illustrator, UCR and GCR are typically controlled indirectly through the CMYK ICC profile used during color conversion. Important considerations include:
- The CMYK profile defines the separation behavior, including GCR strength
- Converting images to CMYK inside a design application applies that profile’s separation immediately
- In workflows using CalderaRIP, it is often preferable to keep files in RGB and allow the software to perform the final color conversion using the printer profile created in EasyMedia. This ensures that the GCR strategy optimized for the target printer and media is applied during the RIP process.
Info
Early versions of Photoshop allowed users to manually choose the type of color separation to apply. Today, this approach is considered obsolete, even though the option may still exist in the software.
In modern workflows, the separation method is defined within the color profile used for conversion. Each profile contains the optimized settings that determine how color is distributed across the resulting printing plates.
Color Separation while Profiling in CalderaRIP
When creating output profiles in CalderaRIP, typically through EasyMedia, GCR settings define how color is separated into CMYK during the profiling process.
These settings influence several aspects of the final print:
- Total Ink Coverage (TAC)
- Gray balance and neutrality
- Ink usage efficiency
- Print stability across media types
For inkjet digital printers, stronger GCR strategies are often beneficial because they:
- Reduce dependence on mixed CMY grays
- Allow the black channel to stabilize neutral tones
- Improve repeatability across different jobs and substrates
During profiling in CalderaRIP, the selected separation settings determine how the ICC profile generates CMYK values when the RIP converts RGB or CMYK source content to the printer’s color space.
However, extremely strong GCR settings can sometimes lead to visual differences in gradients or saturated colors, so the optimal balance depends on the printer model, ink set, and media type.
Practical Recommendations
- Use Caldera-generated printer profiles that are optimized for the specific printer, ink, and media combination.
- For inkjet production workflows, moderate to strong GCR often improves stability and repeatability.
- Avoid early CMYK conversion in design software unless the final printing condition is known and fixed.
- When building profiles in EasyMedia, evaluate gray balance, ink limits, and TAC together with the selected GCR strategy.
Understanding how UCR and GCR influence separations helps ensure that profile creation in CalderaRIP produce predictable and consistent printing results.
