After using the Print Standard Verifier tool to check if the printing process of your organization conforms with the ISO 12647, the verification ends with a series of values that we will now explain.
Below you will see the ISO 12647 standard with its constraints. Benchmarked values and their ∆E are specifically defined for each standard. Globally, the controller will check the compliance of the printed control strip to the FOGRA39 dataset (coated paper) with rules and tolerances defined in the standard. CalderaRIP makes you print that particular control target while doing the print process check.
ISO 12647-2: Offset Simulation
This standard defines the quality of a CMYK offset printer with a heating system. It will allow you to reproduce an offset job on a digital printer, or to simulate the behavior of an ISO 12647-2 Offset press. This offset label is intended to do an informative print evaluation for simulating the behavior of an offset printer. Offset certifications shall always take place on real offset devices.
 |
 |
 |
| Constraint | Benchmark | Details |
|
CMY Maximum dH |
<=2.50 |
Hue difference between the CMY swatches and their reference values. Results have to be lower or equal to 2.50. |
|
CMYK Maximum dE76 |
<=5 |
E76 distance between the CMYK swatches and their reference values. Results have to be lower or equal to 5. |
|
Media Color dL |
<=3 |
(Recommended) Distance between the media swatch Light value and its reference value. It has to be lower or equal to 3. |
|
Media Color da |
<=2 |
(Recommended) Distance between the media swatch a value and its reference value. It has to be lower or equal to 2. |
|
Media Color db |
<=2 |
(Recommended) Distance between the media swatch b value and its reference value. It has to be lower or equal to 2. |

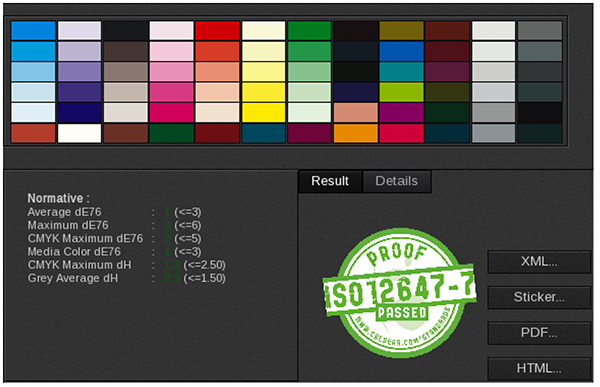

ISO 12647-2: Proof
This standard defines the quality of a digital proof process and the proof itself. It allows you to certificate a digital proof done for an offset printer.
 |
 |
 |
| Constraint | Benchmark | Details |
|
Average dE76 |
<=3 |
E76 average distance between all swatches and their reference values. It has to be lower or equal to 3. |
|
Maximum dE76 |
<=6 |
E76 distance between all swatches and their reference values. Results have to be lower or equal to 6. |
|
CMYK Maximum dE76 |
<=5 |
E76 distance between the CMYK swatches and their reference values. Results have to be lower or equal to 5. |
|
Media Color dE76 |
<=3 |
E76 distance between the media swatch and its reference value. It has to be lower or equal to 3 |
|
CMYK Maximum dH |
<=2.50 |
Hue difference between the CMYK swatches and their reference values. Results have to be lower or equal to 2.50. |
|
Grey Average dH |
<=1.50 |
Hue average difference between Grey swatches and their reference values. It has to be lower or equal to 1.50. |
ISO 12647-2: Validation print
This standard defines the quality of a digital validation print process and the validation itself. It can be used to validate a print or a configuration print where the medium is independent.
 |
 |
 |
| Constraint | Benchmark | Details |
|
Average dE76 |
<=3 |
E76 average distance between all swatches and their reference values. It has to be lower or equal to 3. |
|
Maximum dE76 |
<=8 |
E76 distance between all swatches and their reference values. Results have to be lower or equal to 8. |
|
CMYKRGB 95% dE76 |
<=6 |
E76 distances between the CMYKRGB swatches and their reference values are calculated. An ascending sort is made and the 95th quantile is picked. It has to be lower or equal to 6. |
|
CMYRGB Maximum dH |
<=4 |
Hue difference between the CMYKRGB swatches and their reference values. Results have to be lower or equal to 4. |
|
Grey Average dC |
<=2.50 |
Chroma average difference between Grey swatches and their reference values. It has to be lower or equal to 2.50. |
