Supported models

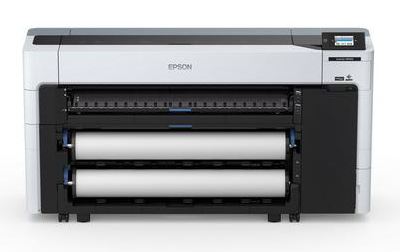

SureColor P6500(D) and SureColor P8500D (on the following image):
- Large-Format-Printers (LFP) for photo production
- Roll size:
- P6500(D): 24"
- P8500D: 44"
- Visit the website of Epson
Models concerned (with variations by region)
| Region | SC-P6500 (D) | SC-P8500D |
|---|---|---|
| America | P6570 | P8570D |
| Australia, New Zealand | P6560 | P8560D |
| China | P6580 | P8580D |
| Europe | P6500 | P8500D |
| Hong Kong | P6590 | P8590D |
| Japan | P6550 | P8550D |
| Korea | P6540 | P8540D |
| South Asia | P6530 | P8530D |
Info
Epson's naming system:
- P: Photo
- D: The model supports double-roll media
- E: The model does not support Adobe PostScript formats
- L: Model with a high-capacity ink system instead of cartridges
Drivers
- Epson-SureColor-P6500
- Epson-SureColor-P6500D
- Epson-SureColor-P8500D
Driver history
-
CalderaRIP V17.1

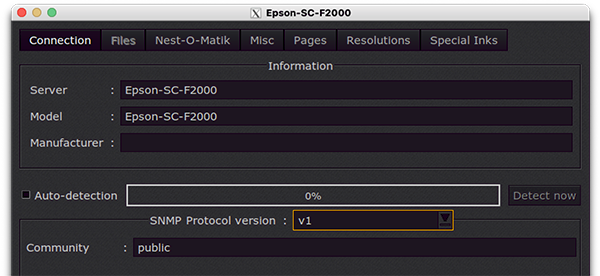

- These drivers now automatically select the required version of the protocol. If needed, it is also possible to change the SNMP version manually thanks to a new field added to the connection tab of ServerAdmin:
Info
Note that if you configure a device to use SNMP V3, you will not be able to access it using SNMP V1.
- These drivers now automatically select the required version of the protocol. If needed, it is also possible to change the SNMP version manually thanks to a new field added to the connection tab of ServerAdmin:
-
CalderaRIP V16.2
- Revision A: Fix possible black edges on borderless print
-
CalderaRIP V15.1
- Epson SureColor P6500(D) and P8500D are supported since this version
Inks
| SC-P6500 (D) | SC-P8500D | |
|---|---|---|
| |
✔ | ✔ |
| |
✔ | ✔ |
| |
✔ | ✔ |
| |
✔ | ✔ |
| |
✔ | ✔ |
| |
✔ | ✔ |
| |
✔ | ✔ |
Connection
| USB | |
| File | |
| Network | |
| Serial |
Tips & tricks
Media
- If the format of media selected in the Loading field is different from the one selected in the Source media field, for instance, if one is a sheet and the other one is a roll, then there will be an error message.
- If you have selected Board as Source media, and you are printing a landscape, then a warning message will recommend you to reload the media in portrait. This message can be disabled.
- EPSON Precision Dot Blueprint is only available with Reference media set up as Blueprint.
Borderless printing
- For borderless prints, margins in Page Setup should be set up correctly. You should also set the Cut media option to Cut before and after print for full borderless prints.
