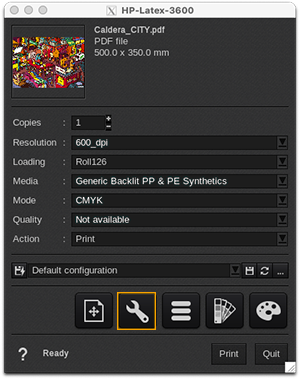

HP Latex 3X00 and 1500 - Printer Settings

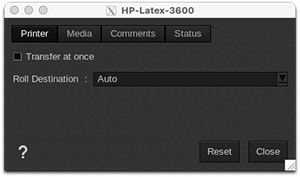

Printer tab

• Transfer at once: RIP the file on the workstation and copy the finished job to the destination folder.
• Roll Destination: Select the preferred roll destination for the job. Options are Auto, Roll 1, and Roll 2.

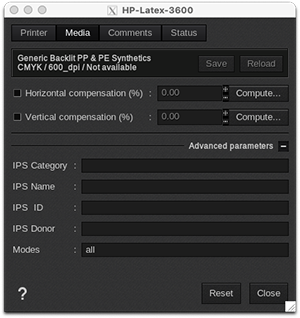

Media tab

• Information: at the top of the window, you are able to see information about your media. There you have access to two actions:
  • Save: when you click on this button, the current media settings are saved to the selected media profile (printer, media, resolution, mode) so there will be applied for any new job using the same print configuration. If you don't save, the changes you made are only applied to the current job.
  • Reload: will revert back to default as set during profiling or the last saved changes.
• Horizontal compensation (%): we recommend not to modify this. Any deviation is likely to be mechanical on the printer's side.
• Vertical compensation (%): this can be useful if you detect an increase or decrease in the length due to heating or media tension which is common when printing on vinyl or textiles for example. To calculate the compensation, click Compute and follow the software’s instructions.

• IPS Category: Media category on the controller.
• IPS Name: Media name on the controller.
• IPS ID: Media identification number.
• IPS Donor: Identification number of the donor media (for example, the parent media).
• Modes: Supported print modes for the media.

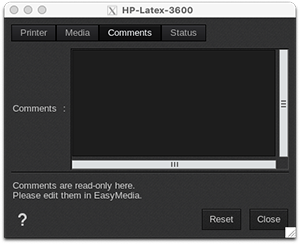

Comments tab

On this tab you can see comments coming from the EasyMedia module. It can include comments from the global media window and from the profile project window.

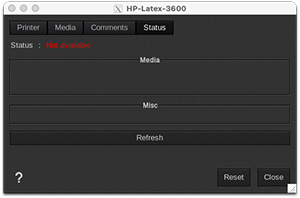

Status tab

• Status: global state of the printer:
  • Ready
  • Not available

All data is coming from the printer, if it is not available, nothing can be displayed.

• Media: information about the media loaded on the printer.

• Misc: complementary info about the printer (model, serial number, firmware version).

• Refresh: button to refresh the tab.
