Resolution & Quality
| Resolution | Quality | Resolution | Quality |
| 450x600 | Uni - Normal | 750x1200 | Uni - Normal |
| 450x1200 | Uni - Normal | 900x600 | Uni - Normal |
| 600x600 | Uni - Normal | 900x1200 | Uni - Normal |
| 600x1200 | Uni - Normal | 1200x600 | Bi - Quality |
|
750x600 |
Uni - Normal | 1200x1200 | Bi - Quality |
Loading
- Roll 3.3m
- Custom (...)
Custom loading with EasySelect
EasySelect is the capability for CalderaRIP to use the size and type of loaded media in the printer.
This printer supports 1 level of selection:

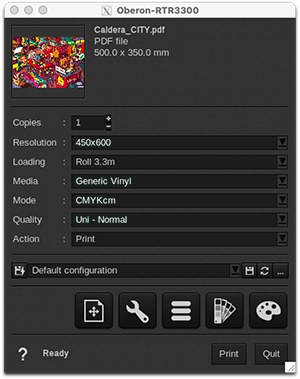

- CustomLoading: uses a custom size (sheet or roll) defined at last moment in the Print module interface.
Media
- Generic Vinyl
This driver comes with only a default media not calibrated.
Discover how to manage media with EasyMedia by clicking here.
Mode
- CMYK
- CMYKcm
Actions
The device supports only two actions:
- Print.
- Nest.
"Rip", "Rip then Print", and "Keep the ripped file" actions are disabled, as the "Print" action sends a RIP file to the controller-mounted directory. You can keep RIP files in the controller and manage to reprint them on the controller directly.
