Supported models

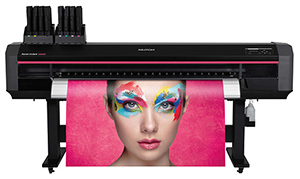

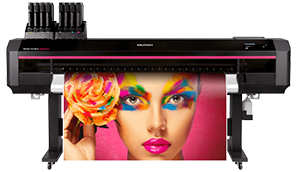

Mutoh XpertJet 1682SR  64” / 162 cm CMYK (x2) or CMYKLkLcLmOR Roll2Roll (take up reel) Solvent Ink 2 printheads (unlike its predecessor, the 1641SR, which only has one)	Mutoh XpertJet 1682SR Pro(K)  64” / 162 cm CMYK (x2) or CMYKLkLcLmOR Roll2Roll (take up reel) Solvent Ink 2 printheads New firmware with improvements in the print quality settings, and ink control 189% faster than its predecessor (1682SR)

Drivers

• Mutoh-XpertJet-1682SR
• Mutoh-XpertJet-1682SR-Pro
• Mutoh-XpertJet-1682SR-ProK

Driver history

• CalderaRIP V17.2
  • Mutoh XpertJet 1682SR Pro. Revision A: Fixed some parameters of the ink carriage speed that caused the interface to refresh slowly.
• CalderaRIP V17
  • Pro and ProK drivers. Revision A: Fixed a crash that occurred when selecting VSD3 in the main window (this parameter had previously been moved from the media parameters to the main window).
  • Mutoh XpertJet (all drivers/models): These drivers now add each job name to the header when communicating with the Mutoh Status Monitor (MSM) software.
• CalderaRIP V16.3
  • Pro and ProK drivers. Revision A: Fixed a crash that occurred when selecting VSD3 in the main window (this parameter had previously been moved from the media parameters to the main window).
  • Mutoh XpertJet 1682SR Pro: Major changes were applied to the driver. Now instead of "Qualities", the driver allows the user to customize directly in the Print Module Interface the settings: effect, scan multiplier, direction, carriage speed, and dot family. This avoids the creation of different media for different resolutions, facilitating the work of color profiling.
• CalderaRIP V16.0.2
  • Rev A: Changes were applied to 1682SR-Pro and ProK drivers, based on the new firmware, which includes improvements in the print quality settings, and ink control.
  • Drivers 1682SR-Pro and 1682SR-ProK supported

• CalderaRIP V15.0.4:

• Version 15.0
  • Rev A: Bug with CMYKcmkO color mode has been fixed

• Version 14.1
  • Rev C: Custom Inkset support added
  • Rev A

• Version 13
  • Driver 1682SR supported

Inks

	Set 1	Set 2
Cyan	✔✔	✔
Magenta	✔✔	✔
Yellow	✔✔	✔
Black	✔✔	✔
Light cyan		✔
Light magenta		✔
Light black		✔
Orange		✔

Connection

	USB
	File
	Network
	Serial
