Resolution
Info
These drivers have several resolutions and pass options to choose from. For each available resolution, you can opt for a variable drop or a fixed drop (-Fix). Also, all resolutions are compatible with all qualities.
| Mutoh XpertJet 1682SR | ||
|
|
|
| Mutoh XpertJet 1682SR Pro and ProK | ||
|
|
|
Loading
1682SR
|
|
|
|
1682SR Pro and ProK
|
|
Custom loading with EasyMedia
EasySelect is the capability for CalderaRIP to use the size and type of loaded media in the printer.
This printer supports 1 level of selection:

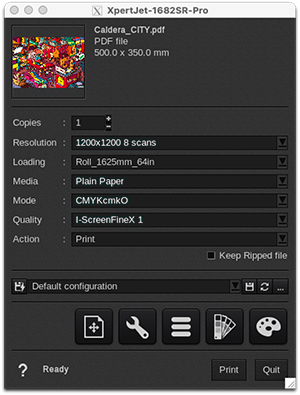

- CustomLoading: uses a custom size (sheet or roll) defined at last moment in the Print module interface.
Media
These drivers come with only a default media not calibrated.
Discover how to manage media with EasyMedia by clicking here.
Modes
| 1682SR: | |
|
|
| 1682SR Pro and ProK | |
|
|
Qualities
1682SR:
Info
For this model, the qualities reflect the effect that will be applied by the i² - Intelligent Interweaving system between passes.
|
|
|
1682SR Pro (before V16.3) and ProK:
Info
The use of I-ScreenFine and I-ScreenFineX qualities is advised over the others for better quality.
|
|
|
1682SR Pro (after V16.3)
Info
Since CalderaRIP V16.3 major changes were applied to the driver. Now instead of "Qualities", the driver allows the user to customize the following settings.
- Effect: I-ScreenFineX (1-5), I-ScreenFine (1-3), or None (1-3).
- Scan multiplier: x1, x2, x4, or Auto.
- Direction: Unidirectional or Bidirectional.
- Carriage speed: Auto, Normal, or Fast.
- Dot family: Auto, VSD1 Large, VSD2 Medium, or VSD3 Small.
Actions
Available actions are:
- Print: This action rips and prints the file simultaneously.
- RIP: Rips the file and holds it in the Spooler.
- RIP then Print: Rips the entire file, and then sends the file to print.
- Nest: This action nests all images sent to the printer and holds them in the Spooler.
Keep Ripped file (only available with "Print" and "Rip then Print" actions). When this box is checked, the sent file remains in the Spooler so you can reprint the job later on.
