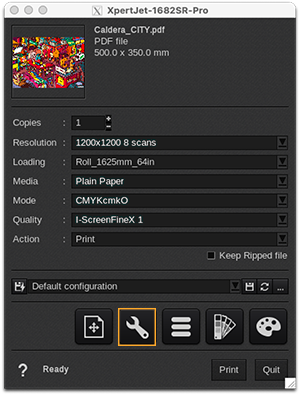

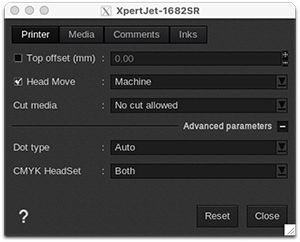

Printer tab

• Top offset (mm): adjust the top margin from -10 to 500mm.

• Head move: enable this option to limit the movement of the printhead carriage across the printer's width. You can choose between:
  • Job: printhead carriage moves only over the job's width sent by CalderaRIP
  • Machine: printhead carriage moves all along printer's width
  • Media: printhead carriage move all along media's width

• Cut media (after print): the embedded cutter will separate the job from the roll at the end of print according to the chosen following parameter:
  • No cut allowed
  • Single 2 steps high pressure
  • Single 3 steps high pressure
  • Double 2 steps high pressure
  • Double 3 steps high pressure
  • Single 2 steps low pressure
  • Single 3 steps low pressure
  • Double 2 steps low pressure
  • Double 3 steps low pressure

Advanced parameters:

• Dot type: this function allows the user to select either a variable dot size (Automatic) or any fixed dot size (Large, Medium or Small).

On 1682SR:

• CMYK HeadSet: this function lets you select which printhead is used. Usually, both heads are used, but in case of a |head issue, you can still continue printing with only one:
  • Both: will use printhead 1 and printhead 2 simultaneously (recommended parameter)
  • Head 1: will only use the printhead 1
  • Head 2: will only use the  printhead 2

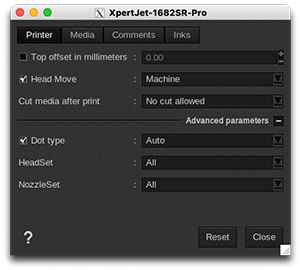

On 1682SR Pro and ProK:

• HeadSet: This function lets you select which printhead is used. Usually, both heads are used, but in case of a head issue, you can still continue printing with only one:
  • Both: will use printhead 1 and printhead 2 simultaneously (recommended)
  • Head 1: will only use the printhead 1
  • Head 2: will only use the  printhead 2

• NozzleSet: This function lets you select which nozzles to be used for printing. Options are all (recommended), odd, or even.

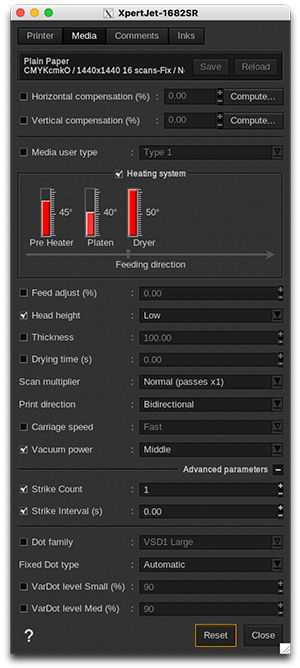

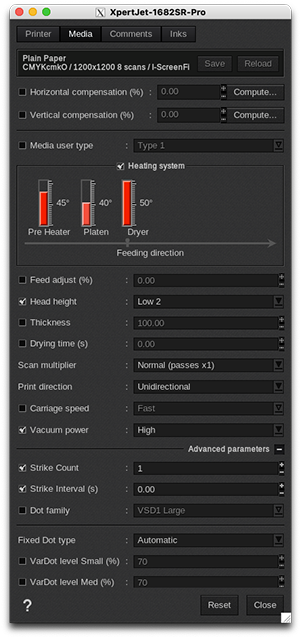

Media tab

• Information: at the top of the window, you are able to see information about your media. There you have access to two actions:
  • Save: when you click on this button, the current media settings are saved to the selected media profile (printer, media, resolution, mode) so there will be applied for any new job using the same print configuration. If you don't save, the changes you made are only applied to the current job.
  • Reload: will revert back to default as set during profiling or the last saved changes.
• Horizontal compensation (%): we recommend not to modify this. Any deviation is likely to be mechanical on the printer's side.
• Vertical compensation (%): this can be useful if you detect an increase or decrease in the length due to heating or media tension which is common when printing on vinyl or textiles for example. To calculate the compensation, click Compute and follow the software’s instructions.

• Media user type: type 1 to 15 to match a specific media parameter set on the printer's panel.

• Heating system: some Mutoh models allow you to manipulate temperatures at various points where the media passes through, thanks to their ventilation system:

1. "Pre-Heater" (just after media loading)
2. "Platen" (where the media is printed)
3. "Dryer" (where the media exits the printer)

Beyond the default settings in CalderaRIP, it is possible to change the values of each stage from 0° C (fan off) to 50° C.

• Feed adjust: set the media feed adjustment level value. The value 0.00 disables this function (use value set on the panel) but a number between -5.00 and 5.00 enables it (use selected feed adjustment level). This setting is useful for avoiding light or dark lines between passes.

• Head height: adjust the gap between the head and the plate by selecting one of the following parameters:
  • Low (Only on 1682SR)
  • Low1 (Only on 1682SR Pro and ProK)
  • Low2 (Only on 1682SR Pro and ProK)
  • Middle
  • High

• Thickness: enter the media thickness in millimeters. If disabled, the media thickness set on the printer's panel will be used. Options are: from 80 to 2800 on 1682SR and from 80 to 1300 on 1682SR Pro and ProK.

• Drying time (s): duration allowed to the drying after the print (in seconds). You can tap a value from 0 to 3600 seconds.

• Scan multiplier: multiplies the number of printing passes to slow-down printing and reduce banding. This doesn't affect ejected ink quantity:
  • Normal (passes x1)
  • Quality (passes x2)
  • High quality (passes x4)

• Print direction: choose if the printing is Bidirectional (by default on 1682SR) or Unidirectional (by default on 1682SR Pro and ProK).

• Carriage speed: adjust the speed of carriage movement between "Normal" and "Fast". Note that a faster movement may lead to more droplet spreading.

• Vacuum power: you can choose the vacuum power. Use a predefined state:
  • Low
  • Middle
  • High
  • Ex High
  • Off (only on 1682SR Pro and ProK)

Advanced parameters:

• Strike count: The printer will do several passes (from 1 to 9) on the same spot. Values above 1 increase ink density.
• Strike Interval (s): pause between passes from 0 to 5 s. May improve ink drying at the expense of printing speed.

• Dot family: set of Variable Sized Droplets that is used (a selection of 3 droplets for each VSD):
  • VSD1 Large
  • VSD2 Medium
  • VSD3 Small

• Fixed Dot type: this function allows the user to select either a preselected dot size (Automatic) or force a fixed dot size (Large, Medium or Small) for fixed-dot resolutions.

• Vardot level Small (%): maximum percentage of Small dots in the variable dot mix (Small, Medium, Large).
• Vardot level Med (%): maximum percentage of Medium dots in the variable dot mix (Small, Medium, Large).

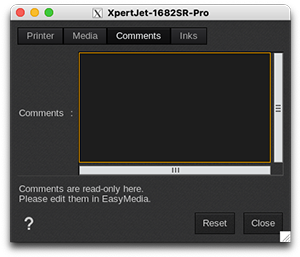

Comments tab

On this tab you can see comments coming from the EasyMedia module. It can include comments from the global media window and from the profile project window.

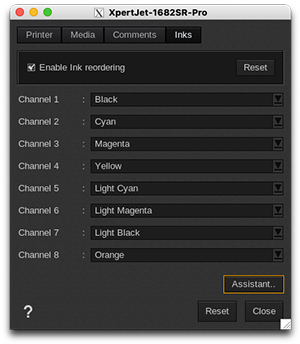

Inks tab

• Enable Ink reordering: if you see that the color channels of your printer seem mixed up, you can enable the ink reordering. For each channel, specify the right color.
