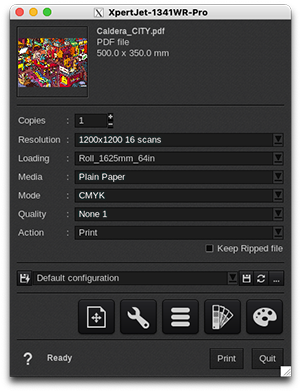

Mutoh XpertJet 1341WR Pro - Print Module Interface
Updated
Resolution
Info
These drivers have several resolutions and pass options to choose from. All resolutions are compatible with all qualities (also known as effects).
1200x1200 16 scans 1200
1200x1200 16 scans-Fix 1200
1200x900 12 scans 1200
1200x900 12 scans-Fix 1200
1200x600 8 scans 1200
1200x600 8 scans-Fix 1200
900x1200 12 scans 900
900x1200 12 scans-Fix 900
900x900 9 scans 900
900x900 9 scans-Fix 900
900x600 6 scans 900
900x600 6 scans-Fix 900
600x1200 8 scans 600
600x1200 8 scans-Fix 600
600x900 6 scans 600
600x900 6 scans-Fix 600
600x600 4 scans 600
600x600 4 scans-Fix 600
600x300 4 scans 600
600x300 4 scans-Fix 600
450x1200 12 scans 450
450x1200 12 scans-Fix 450
450x900 9 scans 450
450x900 9 scans-Fix 450
450x600 6 scans 450
450x600 6 scans-Fix 450
450x300 6 scans 450
450x300 6 scans-Fix 450
300x600 2 scans 300
300x600 2 scans-Fix 300
300x300 2 scans 300
300x300 2 scans-Fix 300
300x900 3 scans 300
300x900 3 scans-Fix 300
Loading
1625mm 64in
1371mm 54in
1066mm 42in
914mm 36in
609mm 24in
Custom (...)
Custom loading with EasyMedia
EasySelect is the capability for CalderaRIP to use the size and type of loaded media in the printer.
This printer supports 1 level of selection:
CustomLoading: uses a custom size (sheet or roll) defined at last moment in the Print module interface.
Media
Plain paper (default)
These drivers come with only a default media not calibrated.
Discover how to manage media with EasyMedia by clicking here.
Mode
CMYK
Quality (Effect)
None 1
None 2
Wave 1
Wave 2
Fuzz 1
Fuzz 2
Fine & Wave 1
Fine & Wave 2
Fine & Fuzz 1
Fine & Fuzz 2
A. Super Fine & Wave
B. Super Fine & Wave
Wow 1
Wow 2
Fine& Fuzz 3
Fine & Fuzz 4
Fog 1
Fog 2
Fine & Fog 1
Fine & Fog 2
None 3
Wave 3
Fuzz 3
Fine & Wave 3
Fine & Fuzz 5
Fine & Fuzz 6
Wow 3
Fog 3
Fine & Fog 3
I-WeaveEx1
I-WeaveEx2
I-WeaveEx3
Recommended settings:
I-Screen 1
I-Screen 2
I-Screen 3
I-Screen 4
I-Screen 5
I-Screen 6
Note the use of I-Screen qualities is advised.
Actions
Available actions are:
Print: This action rips and prints the file simultaneously.
RIP: Rips the file and holds it in the Spooler.
RIP then Print: Rips the entire file, and then sends the file to print.
Nest: This action nests all images sent to the printer and holds them in the Spooler.
Keep Ripped file (only available with "Print" and "Rip then Print" actions). When this box is checked, the sent file remains in the Spooler so you can reprint the job later on.
