Resolution

• The user can choose between 1 and 8 passes

Loading

• Roll 1.0m
• Roll 1.6m
• Roll 1.8m
• Roll 2.5m
• Roll 3.2m
• Custom (…)

EasySelect

EasySelect is the capability for CalderaRIP to use the size and type of loaded media in the printer.

This printer supports 1 level of selection:

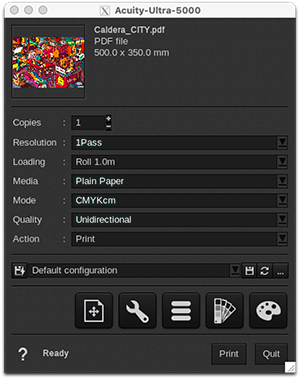

• CustomLoading: uses a custom size (sheet or roll) defined at last moment in the Print module interface.

Media

This driver comes with only a default media not calibrated.

Discover how to manage media with EasyMedia by clicking here.

Mode

• CMYK
• CMYKcm
• 2xCMYK

Quality

• Unidirectional
• Bidirectional

Actions

The device supports only two actions:

• Print.
• Nest.

"Rip", "Rip then Print", and "Keep the ripped file" actions are disabled, as the "Print" action sends a RIP file to the controller-mounted directory. You can keep RIP files in the controller and manage to reprint them on the controller directly.
