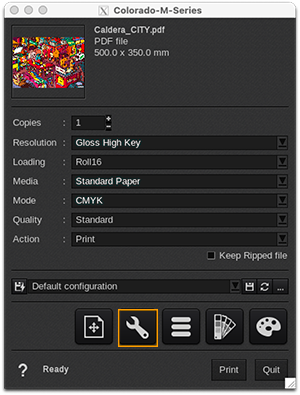

Printer tab

• Printing start: choose between printing Immediately after the Print action in CalderaRIP, or print after a Manual action on the controller side.

• Job note: informative note for the job. The note is displayed on the controller when the job is selected.

• Roll selection: you can choose to let the Printer or the RIP do the roll selection.

Advanced parameters

• Do not check Media before printing: default behavior is deactivated. In that case, a check will be made to see if the media exists on the printer controller. If not, the job cannot be printed and is displayed with error. Activating Do not check Media before printing will ignore this check.

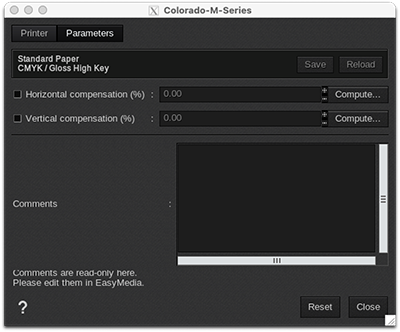

Parameters tab

• Information: at the top of the window, you are able to see information about your media. There you have access to two actions:
  • Save: when you click on this button, the current media settings are saved to the selected media profile (printer, media, resolution, mode) so there will be applied for any new job using the same print configuration. If you don't save, the changes you made are only applied to the current job.
  • Reload: will revert back to default as set during profiling or the last saved changes.
• Horizontal compensation (%): we recommend not to modify this. Any deviation is likely to be mechanical on the printer's side.

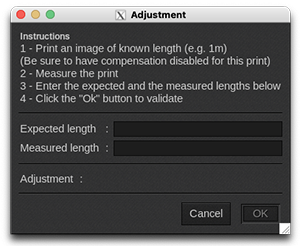

• Vertical compensation (%): this can be useful if you detect an increase or decrease in the length due to heating or media tension which is common when printing on vinyl or textiles for example. To calculate the compensation, click Compute and follow the software’s instructions.

Comments

In this area, you can see comments coming from the EasyMedia module. It can include comments from the global media window and from the profile project window.
